Description

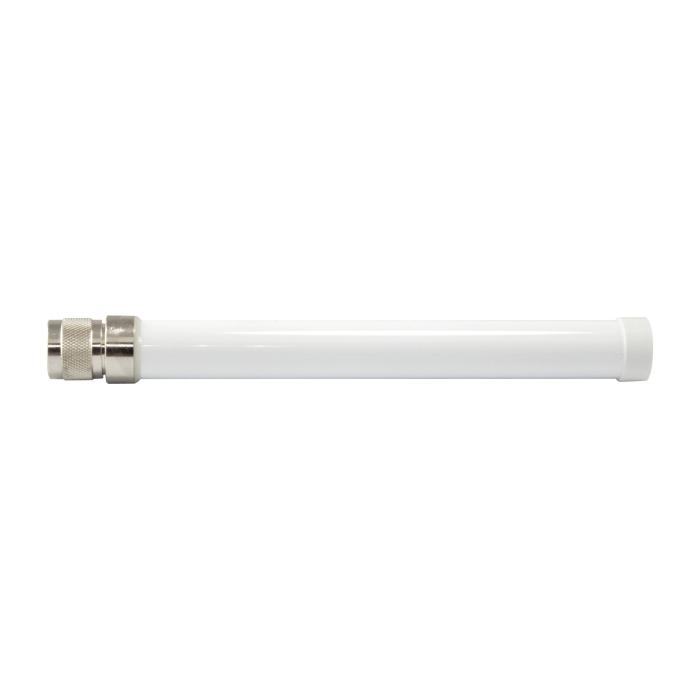

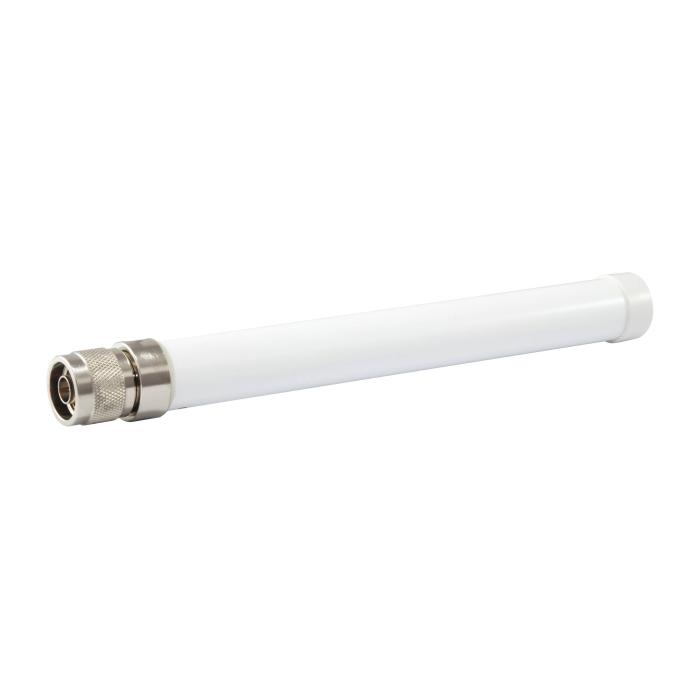

LevelOne OAN-4058 omnidirectional antenna in white for networks, with an N-type female connector and a complete horizontal coverage of 360° in both 2.4 GHz and 5 GHz. It offers a gain of 5 dBi in the 2.4 GHz band and 8 dBi in the 5 GHz band, with a vertical beamwidth of 51.7° and 27.7° respectively, and an impedance of 50 Ω. Compatible with IEEE 802.11a/b/g/n/ac standards, this antenna operates over a frequency range of 2.4 to 5 GHz, features vertical polarisation and tolerates an operating relative humidity between 0 and 95%. Its design ensures uniform signal propagation around the installation point, ideal for extending coverage in indoor or outdoor environments.
Specifications
Performance
- Frequency band: 2.4 - 5 GHz
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Gain: 5 / 8 dBi
- Antenna gain (2.4 GHz): 5 dBi
- Antenna gain (5 GHz): 8 dBi
- Impedance: 50 Ω
- Horizontal beam width (2.4 GHz): 360°
- Vertical beam width (2.4 GHz): 51.7°
- Horizontal beam width (5 GHz): 360°
- Vertical beam width (5 GHz): 27.7°
- Antenna gain level (max): 8 dBi
Features
- Antenna type: Omni-directional antenna

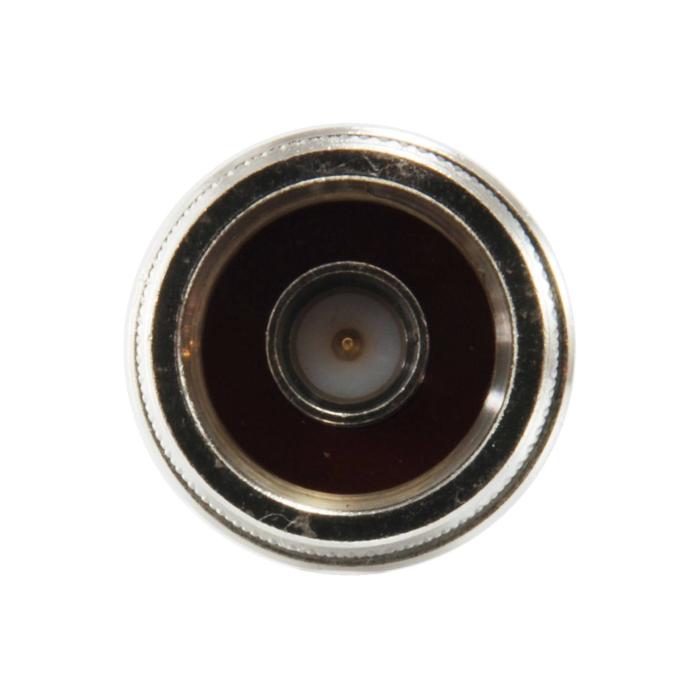

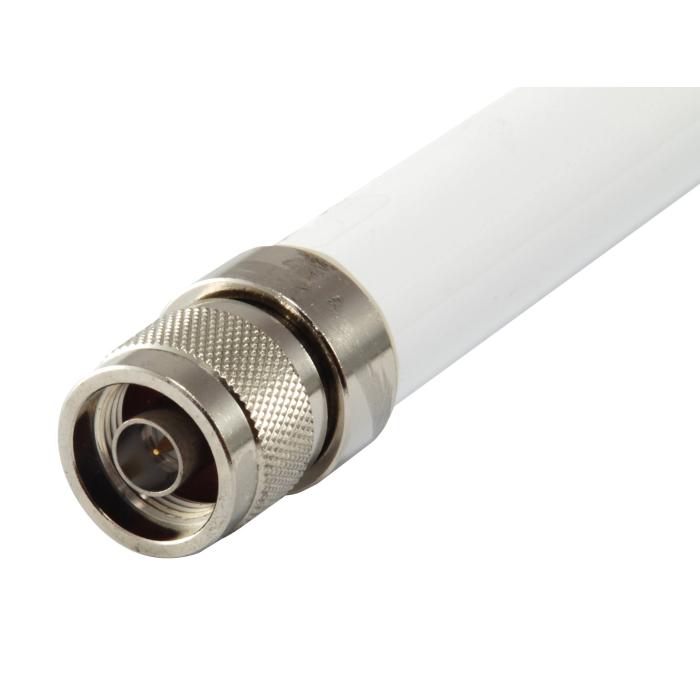

- Antenna connector type: N-type
- Connector gender: Female
- Polarization: Vertical polarization
- Voltage Standing Wave Ratio (VSWR): 2
- Product colour: White
Operational conditions
- Operating temperature (T-T): -30 - 60 °C
- Operating relative humidity (H-H): 0 - 95%
Weight & dimensions
- Width: 22 mm
- Depth: 203 mm
- Height: 22 mm
- Weight: 860 g
Packaging data
- Package width: 70 mm
- Package depth: 60 mm
- Package height: 265 mm
- Package weight: 192 g
- Package type: Blister
Packaging content
- Quantity per pack: 1 pc(s)
Logistics data
- Harmonized System (HS) code: 85177100
- Country of origin: Taiwan
- Master (outer) case width: 480 mm
- Master (outer) case length: 560 mm
- Master (outer) case height: 290 mm
- Master (outer) case gross weight: 11 kg
- Master (outer) case volume: 50 cm³
- Products per master (outer) case: 50 pc(s)
