Description

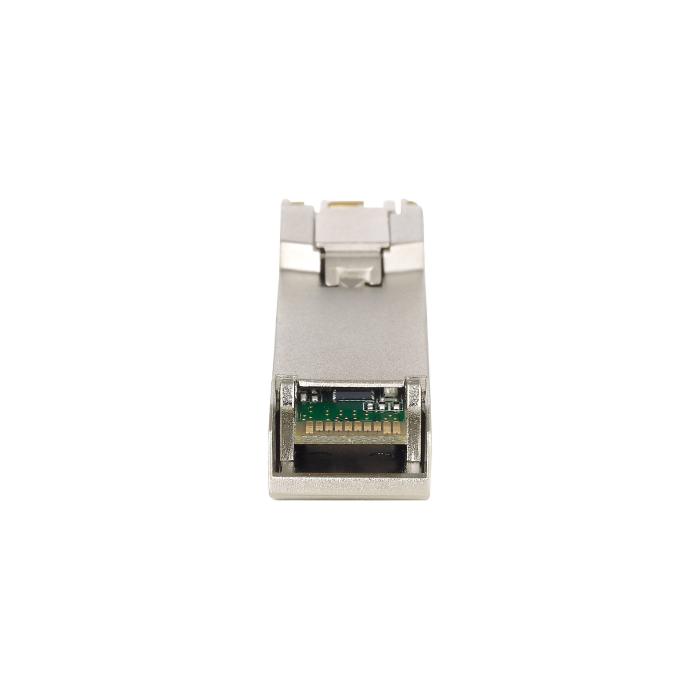

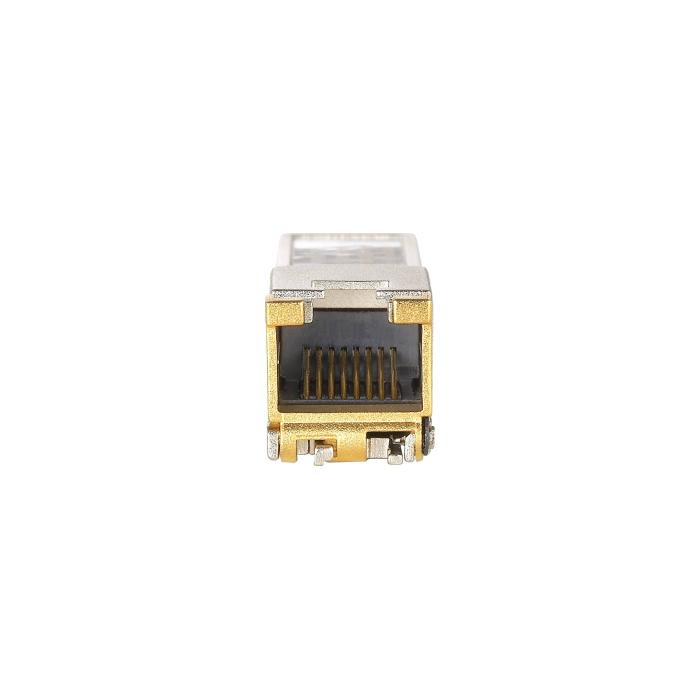

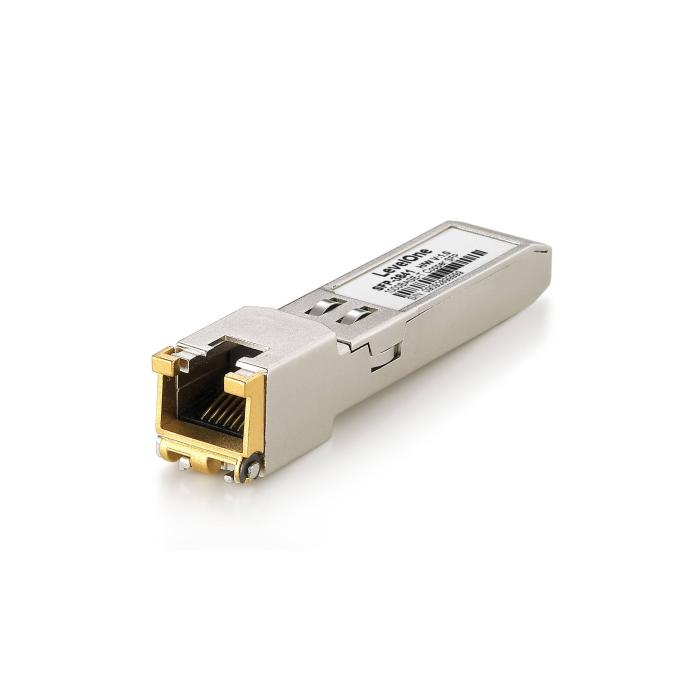

The LevelOne SFP-3841 module is an SFP-type copper transceiver offering a maximum data transfer rate of 1250 Mbit/s and a maximum transfer distance of 100 m. It features an RJ-45 Ethernet LAN port and complies with the IEEE 802.3 and IEEE 802.3ab network standards, making it easy to integrate into compatible network infrastructures. It supports hot-swap and hot-plug compatibility, so you can connect or remove it without switching off the equipment. It operates with an input voltage of 3.3 V, a maximum voltage of 4 V and a maximum current of 0.375 A. It supports an operating temperature range of 0 to 70 °C and a relative operating humidity range of 5 to 95%. It holds CE and FCC certification, as well as RoHS certificates of conformity. Its dimensions are 57 x 13.7 x 12 mm (width x height x depth) and it weighs 20 g.
Specifications
Performance
- SFP transceiver type: Copper
- Maximum data transfer rate: 1250 Mbit/s
- Interface type: SFP
- Maximum transfer distance: 100 m
- Networking standards: IEEE 802.3, IEEE 802.3ab
- Ethernet LAN (RJ-45) ports: 1
Features
- Hot-Plug support: Yes
- Hot-swap: Yes
Power
- Input voltage: 3.3 V
- Maximum voltage: 4 V
- Maximum current: 0.375 A
Certificates
- Compliance certificates: RoHS
- Certification: CE, FCC
Operational conditions
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 57 mm
- Depth: 12 mm
- Height: 13.7 mm
- Weight: 20 g
Packaging data
- Package width: 106 mm
- Package depth: 20 mm
- Package height: 65 mm
- Package weight: 35 g
Logistics data
- Harmonized System (HS) code: 85369010
- Country of origin: China
