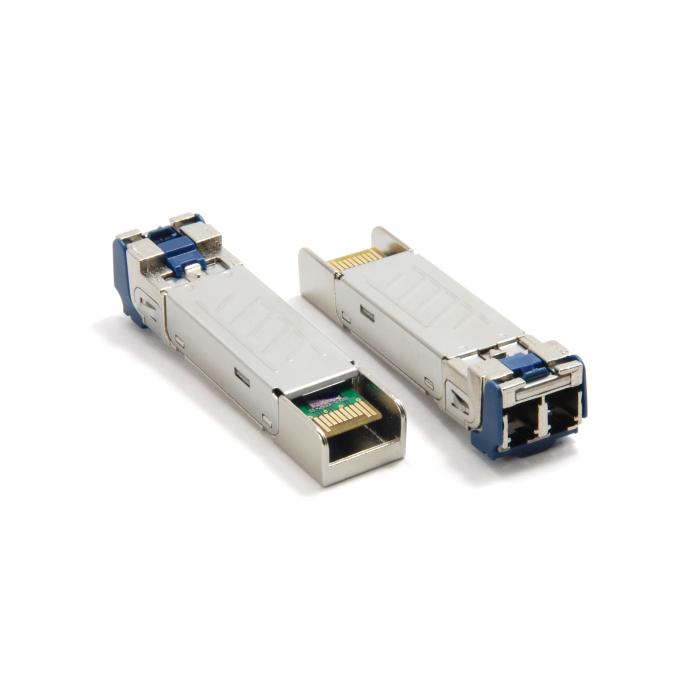

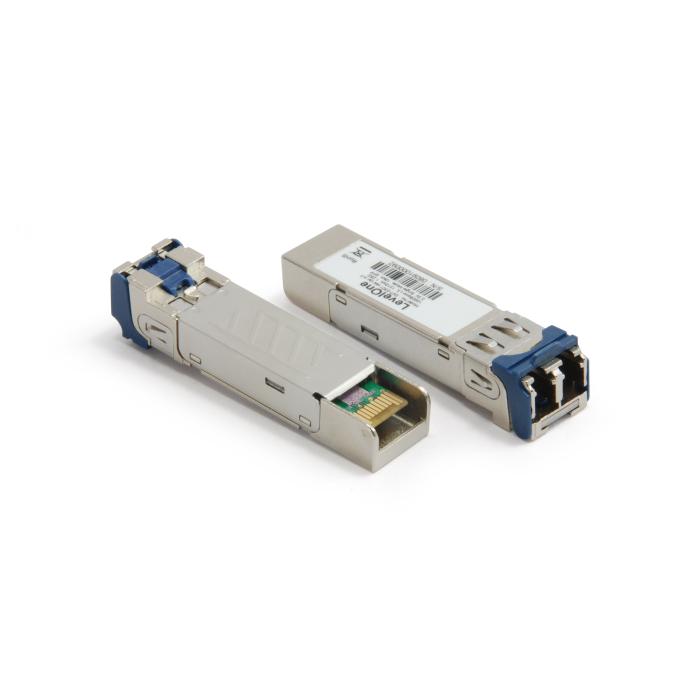

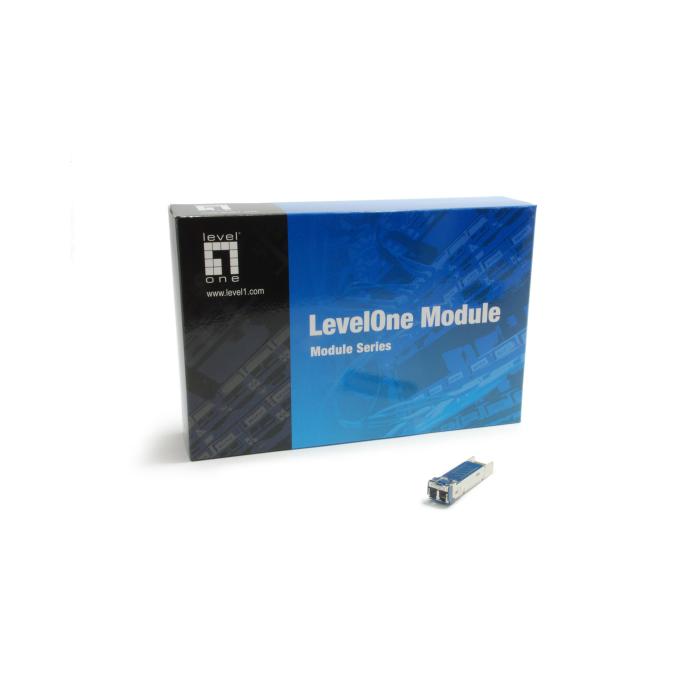

LevelOne 1.25Gbps Single-mode SFP Transceiver, 10km, 1310nm

$27.61
$27.61 without VAT

More info

Brand: LEVELONE
SKU: 78219 PRC: 147593 EAN: 4015867113615 PN: GVT-0301

Description

LevelOne 1.25Gbps Single-mode SFP Transceiver, 10km, 1310nm, Fiber optic, 1250 Mbit/s, SFP, LC, 9/125 µm, LX

Specifications

Performance

  • Tx power (min): -9.5 dBmW
  • Tx power (max): -3 dBmW
  • Link budget: 10.5 dB
  • Networking standards: IEEE 802.3z
  • SFP transceiver type: Fiber optic
  • Maximum data transfer rate: 1250 Mbit/s
  • Interface type: SFP
  • Single-mode fiber (SMF) supported: Yes
  • Fiber optic connector: LC
  • Fiber cable diameters supported (core/cladding): 9/125 µm
  • SFP transceiver standard: LX
  • Maximum transfer distance: 10000 m
  • Wavelength: 1310 nm

Features

  • Hot-Plug support: Yes
  • Compatible products: GSW-2453 GVT-4000

Power

  • Input voltage: 3.5 V
  • Maximum voltage: 6 V
  • Maximum current: 0.3 A

Certificates

  • Certification: Class 1 Laser: EN60825-1 FDA 21: 1040.10, 1040.11

Operational conditions

  • Operating temperature (T-T): 0 - 70 °C
  • Operating relative humidity (H-H): 5 - 90%

Weight & dimensions

  • Width: 13.5 mm
  • Depth: 55.5 mm
  • Height: 8.5 mm

Packaging content

  • Quantity per pack: 1 pc(s)

Packaging data

  • Package width: 70 mm
  • Package depth: 50 mm
  • Package height: 130 mm
  • Package weight: 70 g

Logistics data

  • Harmonized System (HS) code: 85369010
  • Country of origin: Taiwan
