Description

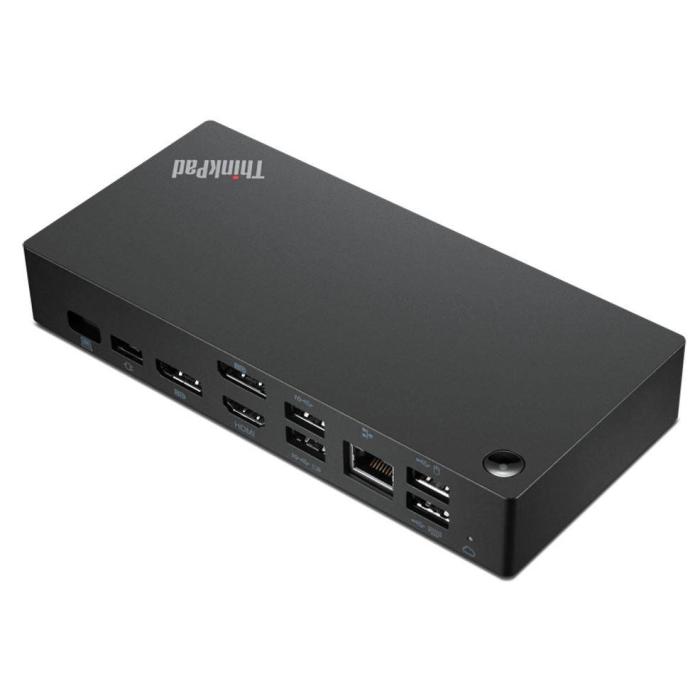

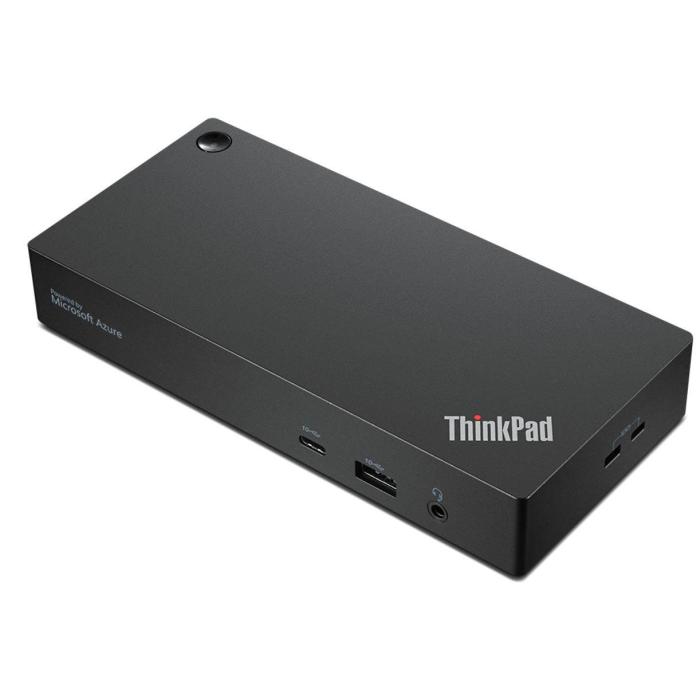

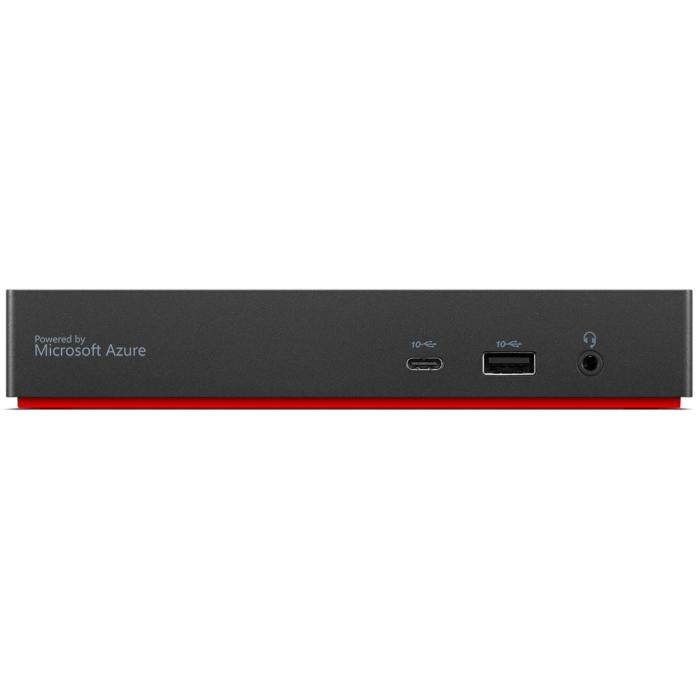

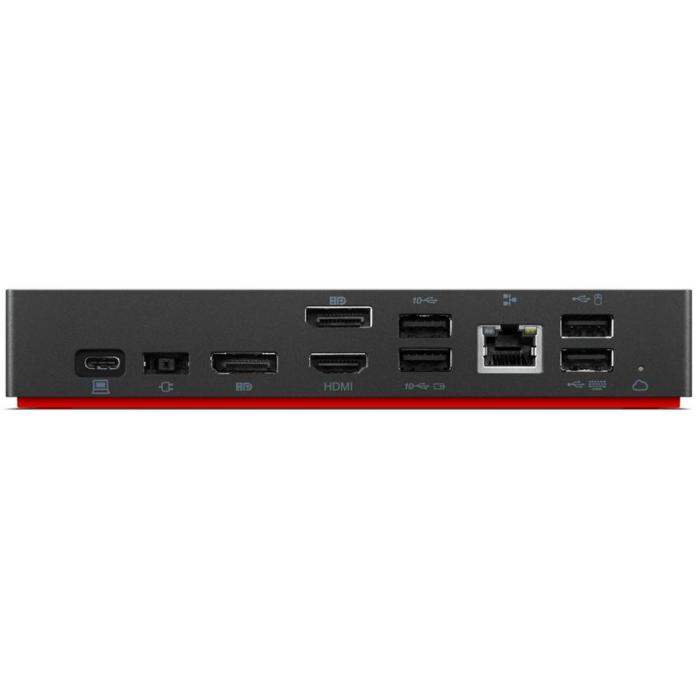

Expand your laptop's connectivity with the Lenovo ThinkPad Universal USB-C Smart Dock, a black wired dock that connects via USB 3.2 Gen 2 Type-C host interface. It adds one USB Type-C port and three USB Type-A ports of the USB 3.2 Gen 1 type, plus two USB 2.0 ports for your peripherals. For video, it includes one HDMI output and two DisplayPort, with support for three screens at once. Network connection comes through an Ethernet RJ-45 port with a data transfer rate of 1000 Mbit/s. It features a headphone and microphone output combo, DC input plug and USB power delivery. With dimensions of 171 x 30.8 x 80 mm and a weight of 388 g, it includes a security cable slot and has FCC/ICES, CE, RCM, BSMI, VCCI, CB, cULus, TUV-Mark and LoA certification.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- USB Power Delivery (USB PD): Yes
- HDMI ports quantity: 1
- DisplayPorts quantity: 2
- Microphone in: No
- Combo headphone/mic port: Yes
- DC-in jack: Yes
Network
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
- Ethernet LAN data rates: 1000 Mbit/s
Performance
- Card reader integrated: No
- HD type: 4K Ultra HD
- Maximum digital resolution: 3840 x 2160 pixels
- Number of displays supported: 3
- Maximum refresh rate: 60 Hz
- Cable lock slot: Yes
- Product colour: Black
- Certification: FCC/ICES; CE; RCM; BSMI; VCCI; CB; cULus; TUV- Mark; LoA
Power
- Power supply: 135 W
Software
- Windows operating systems supported: Windows 10, Windows 11, Windows 7
Operational conditions
- Operating temperature (T-T): 0 - 35 °C
- Operating relative humidity (H-H): 20 - 95%
Weight & dimensions
- Width: 171 mm
- Depth: 80 mm
- Height: 30.8 mm
- Weight: 388 g
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 210 mm
- Package depth: 158 mm
- Package height: 75 mm
- Package weight: 1.25 kg
Logistics data
- Harmonized System (HS) code: 84733020
