Description

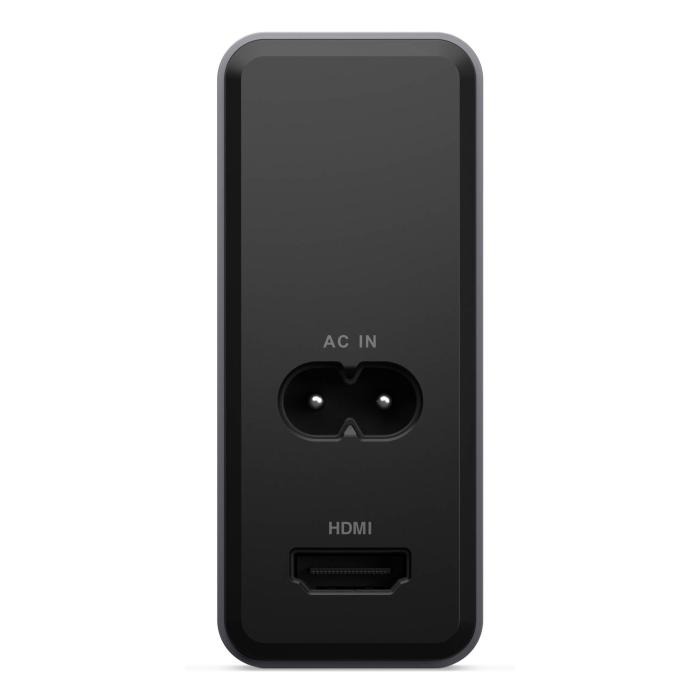

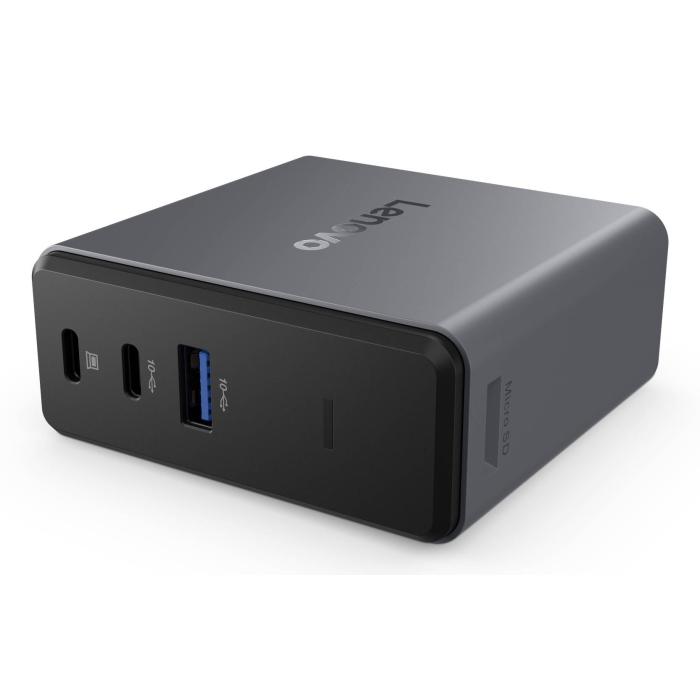

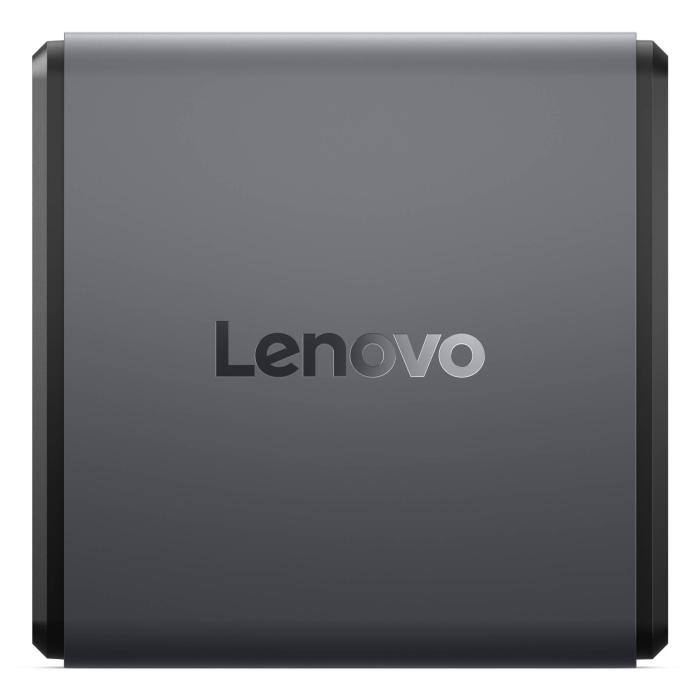

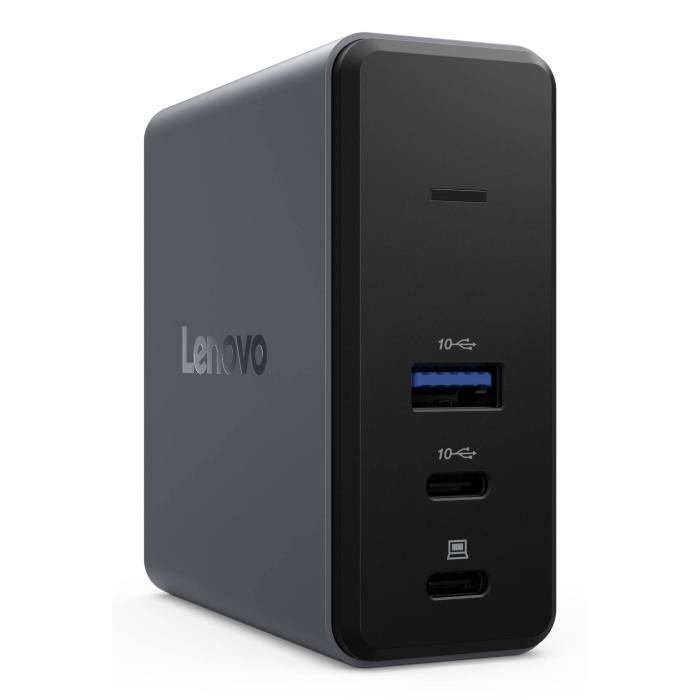

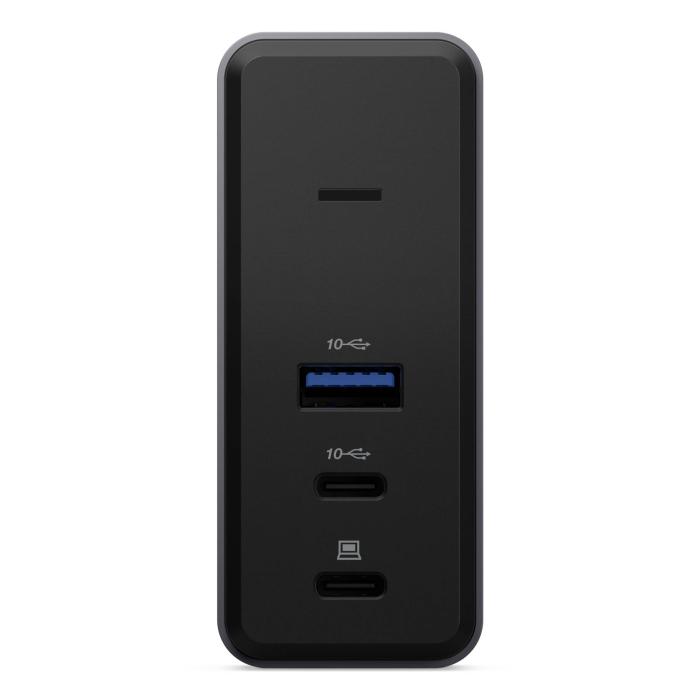

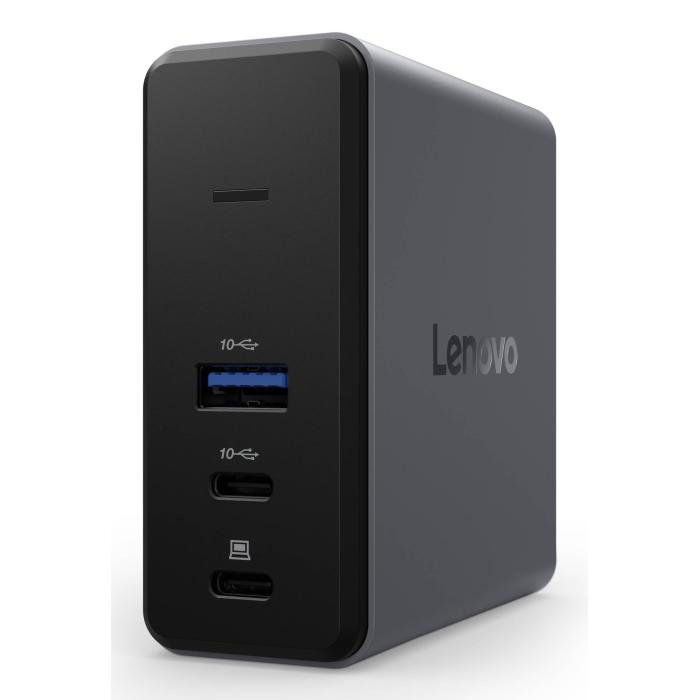

Expand your Lenovo laptop's connectivity with the X9 Charging GaN Dock, a grey wired dock that connects via USB 3.2 Gen 2 (3.1 Gen 2) Type-C host interface. It features two USB Type-C ports of this same standard and an HDMI 2.1 port that reaches a maximum resolution of 3840 x 2160 pixels at 60 Hz. Its charging function uses USB Power Delivery 3.0 of up to 60 W, so you can power the device while you work. The built-in card reader supports MicroSD (TransFlash) cards, useful for transferring photos or files instantly. With dimensions of 80 x 33.5 x 80 mm (width x height x depth) and a weight of 281 g, it takes up little space and is easy to carry. It is designed for Lenovo devices and has FCC/ICES, CE, CB, RCM, BSMI, VCCI/PSE, UKCA, TISI, TUV Mark, PSB and NOM certification.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
- USB Power Delivery (USB PD): Yes
- USB Power Delivery revision: 3.0
- USB Power Delivery up to: 60 W
- HDMI ports quantity: 1
- HDMI version: 2.1
- Microphone in: No
Network
- Ethernet LAN: No
Performance
- Card reader integrated: Yes
- Compatible memory cards: MicroSD (TransFlash)
- Maximum digital resolution: 3840 x 2160 pixels
- Number of displays supported: 1
- Maximum refresh rate: 60 Hz
- Product colour: Grey
- Reset button: No
- Charging function: Yes
- Brand compatibility: Lenovo
- Certification: FCC/ICES CE CB RCM BSMI VCCI/PSE UKCA TISI TUV Mark PSB NOM
Power
- Power source type: AC
- AC input voltage: 100 - 240 V
- Input current: 1.6 A
- Power consumption (max): 60 W
- Power cable length: 1.5 m
- USB cable length: 0.5 m
Software
- Windows operating systems supported: Windows 10, Windows 11
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 8 - 90%
Weight & dimensions
- Width: 80 mm
- Depth: 80 mm
- Height: 33.5 mm
- Weight: 281 g
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 190 mm
- Package depth: 183 mm
- Package height: 55 mm
- Package weight: 574 g
Packaging content
- Travel case: Yes
- Cables included: AC, USB Type-C to USB Type-C
- Quick start guide: Yes
- Stand included: Yes
