Description

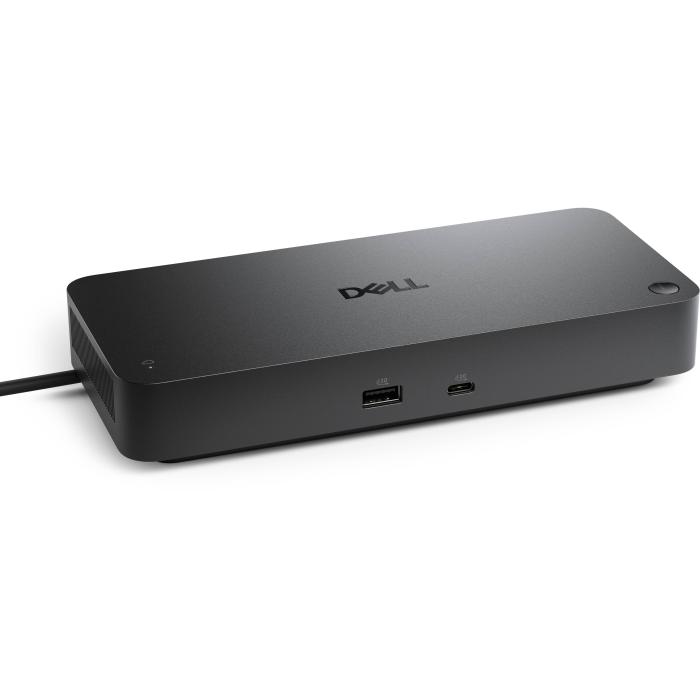

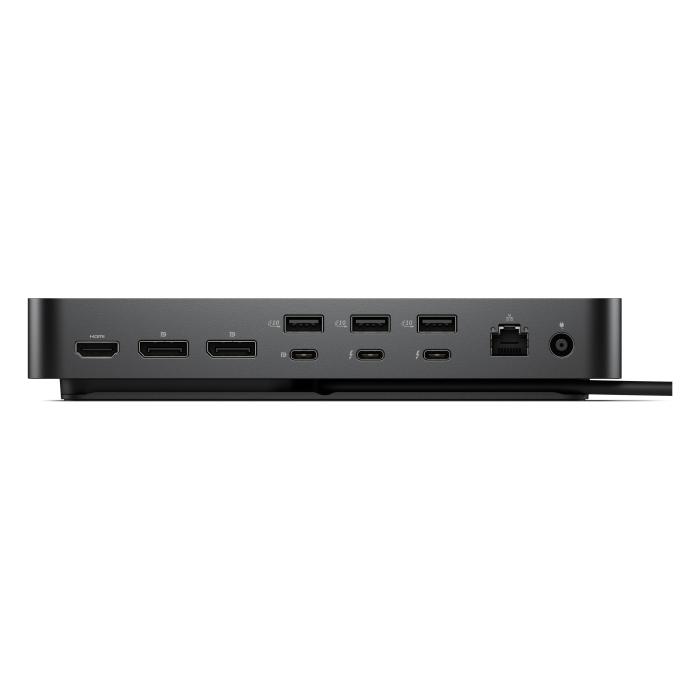

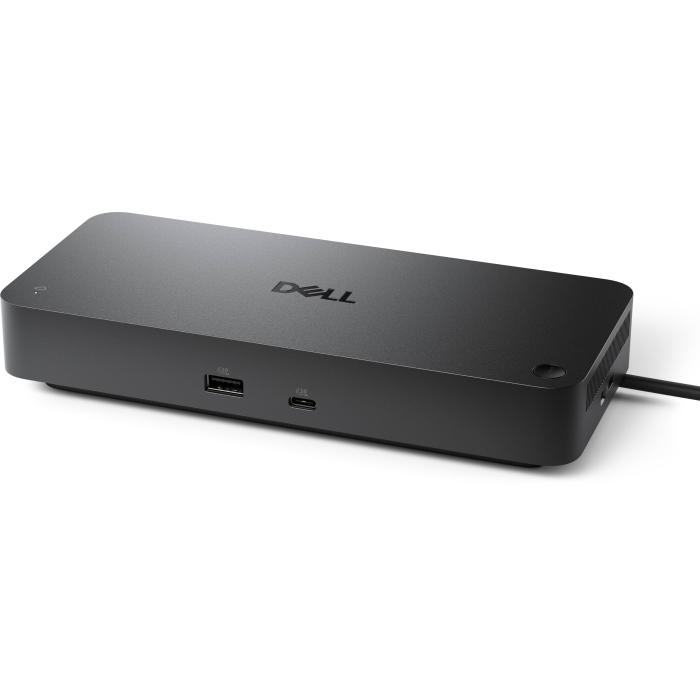

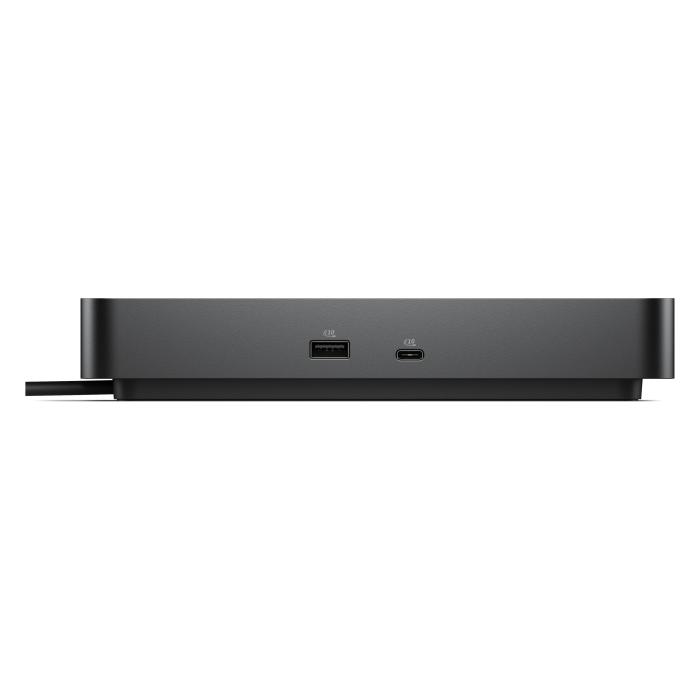

The DELL Pro Thunderbolt 4 SD25TB4 is a wired black dock with dimensions of 90 x 205 x 35.2 mm (width x height x depth) and a weight of 579 g, designed to expand your laptop's connectivity. Its Thunderbolt 4 host interface gives access to two Thunderbolt 4 ports and two USB Type-C USB 3.2 Gen 2 ports, as well as four USB Type-A USB 3.2 Gen 2 ports. It includes four PowerShare USB ports, so you can charge devices even when the equipment is idle, and supports USB Type-C DisplayPort Alternate Mode. For video output it has one HDMI 2.1 port and two DisplayPort version 1.4 ports, allowing you to set up multiple displays at once. USB Power Delivery power delivery reaches up to 130 W, enough to power the laptop while you work, and the DC input connector completes the power supply of the dock itself.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: Thunderbolt 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
- PowerShare: Yes
- Number of USB ports with PowerShare support: 4
- USB Power Delivery (USB PD): Yes
- USB Power Delivery up to: 130 W
- HDMI ports quantity: 1
- HDMI version: 2.1
- DisplayPorts quantity: 2
- DisplayPort version: 1.4
- Thunderbolt 4 ports quantity: 2
- Microphone in: No
- DC-in jack: Yes
- USB Type-C DisplayPort Alternate Mode: Yes
Network
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
- Ethernet LAN data rates: 2500 Mbit/s
- Wake-on-LAN ready: Yes
Performance
- Card reader integrated: No
- HD type: 8K Ultra HD
- Maximum digital resolution: 7680 x 4320 pixels
- Number of displays supported: 4
- Cable lock slot: Yes
- Cable lock slot type: Kensington
- Product colour: Black
- LED indicators: Yes
Power
- Power source type: DC
- Power connector: USB Type-C
- Power supply: 180 W
Software
- Windows operating systems supported: Windows 10, Windows 11
- Mac operating systems supported: Yes
- Linux operating systems supported: Yes
- Other operating systems supported: ChromeOS
Operational conditions
- Operating temperature (T-T): 0 - 35 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 10 - 80%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 90 mm
- Depth: 35.2 mm
- Height: 205 mm
- Weight: 579 g
Packaging data
- Quantity per pack: 1 pc(s)
Packaging content
- Quick start guide: Yes
