Description

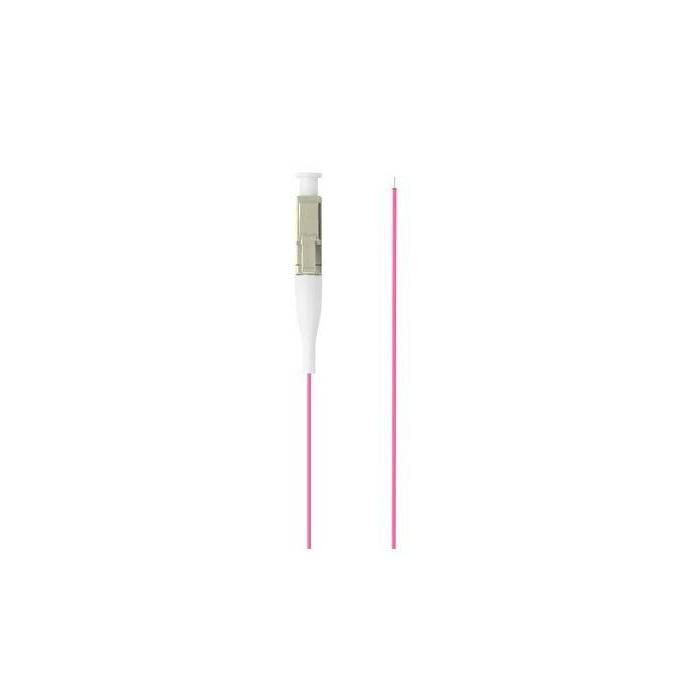

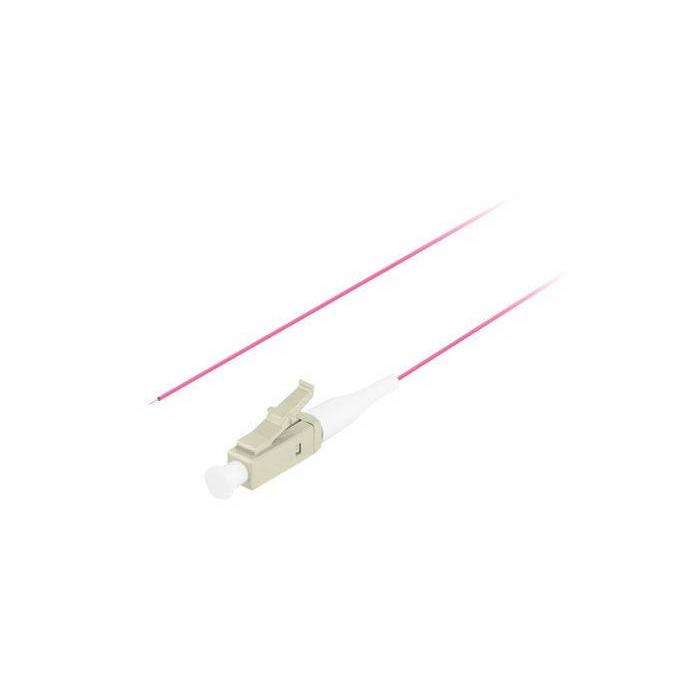

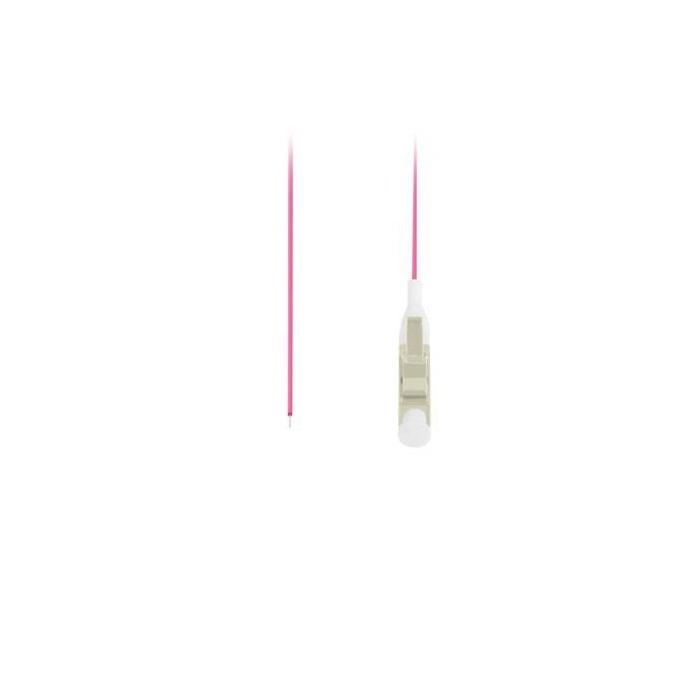

LANBERG FP-LCUP-MS41-0020-VT fibre optic pigtail: 2 m violet multimode cable, with a male LC/UPC connector at one end and unconnectorised fibre at the other. It is OM4 multimode fibre, with UPC polishing and a round halogen-free (LSZH) jacket. The cable diameter is 0.9 mm, with a 50 µm core and a 125 µm cladding. It has an insertion loss of 0.2 dB and a return loss of 35 dB. Its bend radius is 7.5 mm and it withstands an operating temperature range of -40 to 85 °C. It is sold in packs of 20 units and the weight is 9 g.
Specifications
Features
- Cable length: 2 m
- Fibre optic type: OM4
- Cable shape: Round
- Connector 1: LC
- Connector 2: LC
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector polish type: UPC
- Cable type: LC/UPC
- Product colour: Violet
- Core diameter: 50 µm
- Cladding diameter: 125 µm
- Fiber mode structure: Multi-mode
- Insertion loss: 0.2 dB
- Return loss: 35 dB
- Jacket material: Low smoke zero halogen (LSZH)
Operational conditions
- Operating temperature (T-T): -40 - 85 °C
Weight & dimensions
- Cable diameter: 0.9 mm
- Weight: 9 g
- Bending radius: 7.5 mm
Packaging content
- Quantity per pack: 20 pc(s)
