Description

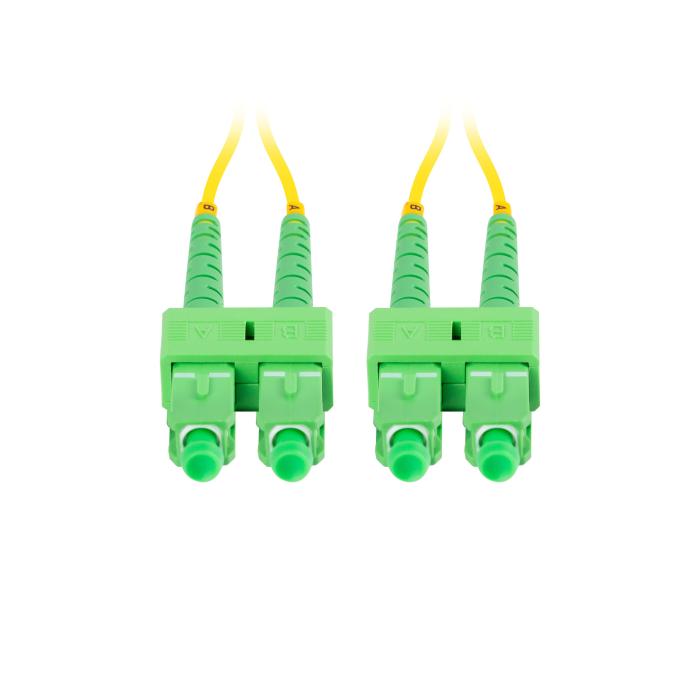

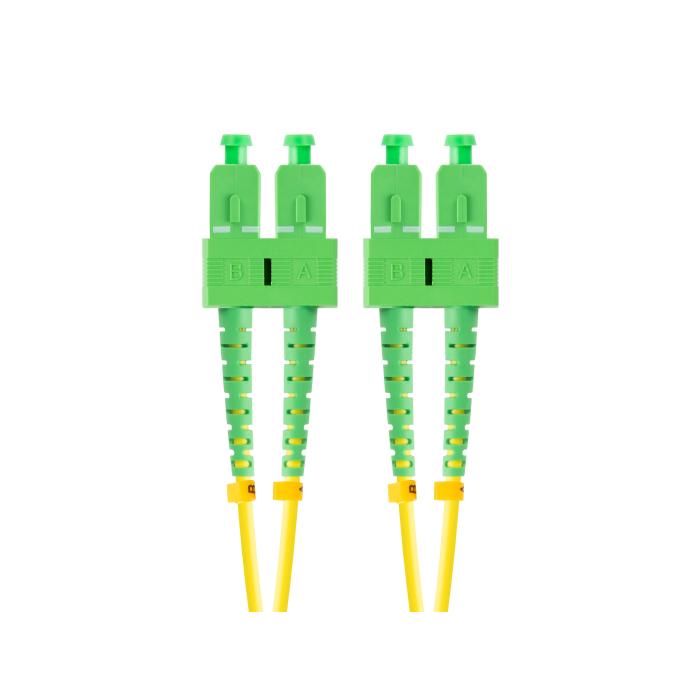

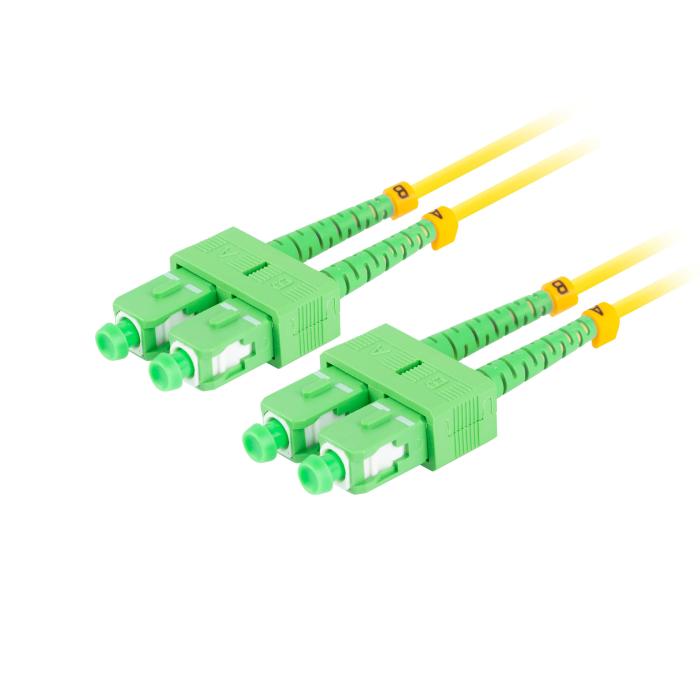

The Lanberg FO-SASA-SD11-0020-YE InfiniBand/fibre optic cable, in green and yellow, features male SC connectors at both ends and a length of 2 metres. Designed for single-mode networks, its 125 µm core and APC polish type offer an insertion loss of 0.25 dB and a return loss of 60 dB, with full bidirectional operation. The jacket, halogen-free (LSZH), has a diameter of 3 mm and a minimum bend radius of 1 cm, withstanding temperatures from -40 to 85 °C. This G.657.A1 fibre model suits installations requiring flexibility and low smoke emission, including one piece per package.
Specifications
Features
- Cable length: 2 m
- Fibre optic type: G.657.A1
- Connector 1: SC
- Connector 2: SC
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector polish type: APC
- Product colour: Green, Yellow
- Full duplex: Yes
- Core diameter: 125 µm
- Fiber mode structure: Single-mode
- Insertion loss: 0.25 dB
- Return loss: 60 dB
- Jacket material: Low smoke zero halogen (LSZH)
Operational conditions
- Operating temperature (T-T): -40 - 85 °C
Weight & dimensions
- Cable diameter: 3 mm
- Bending radius: 1 cm
Packaging content
- Quantity per pack: 1 pc(s)
