Description

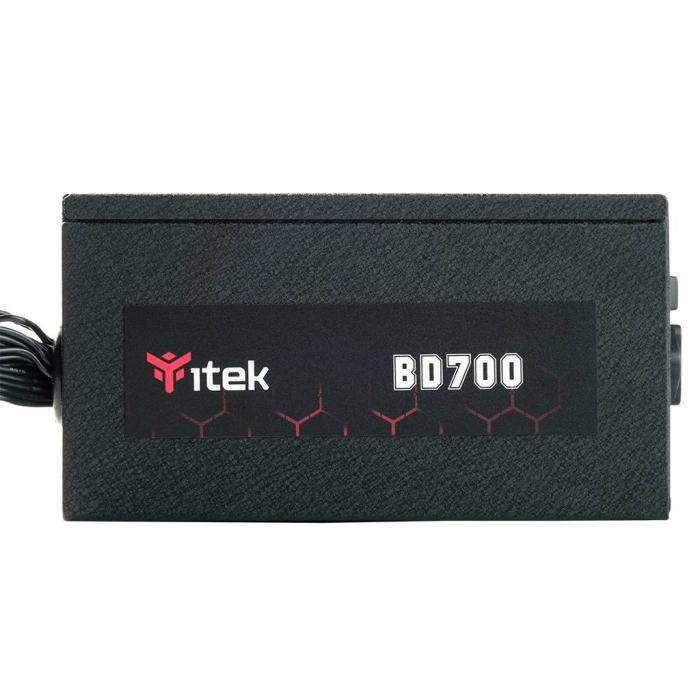

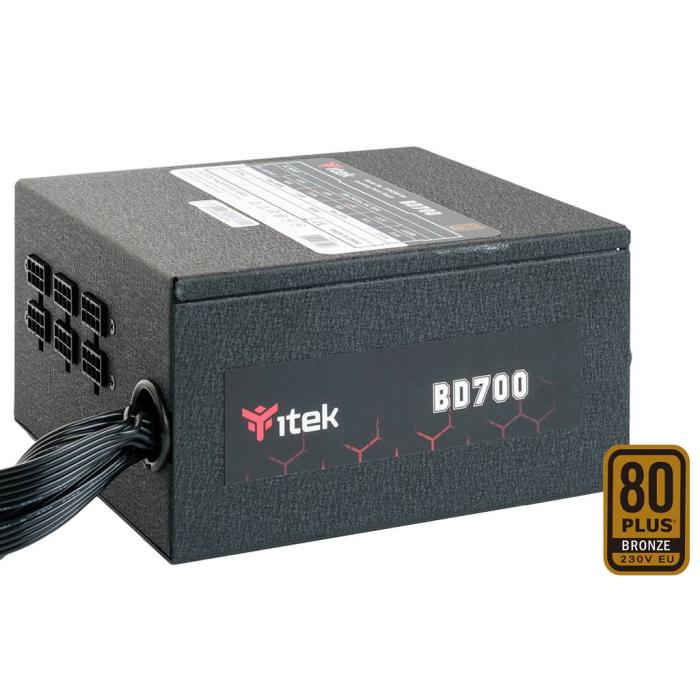

The itek BD700 is a 700 W power supply unit with ATX form factor and ATX 2.31 version, designed for PC builds. It features active power factor correction and operates with an input voltage of 230 V. Its semi-modular cabling includes a 24-pin ATX connector for the motherboard, two 6 + 2 pin PCI Express connectors, two 4-pin Molex peripheral connectors and seven SATA power connectors. It has 80 PLUS Bronze certification and offers protection against overcurrent, overvoltage, overpower, short circuit and undervoltage. The cooling system is active, with a 12 cm diameter fan, and integrates a power on/off switch. Its mean time between failures reaches 100000 h. It comes in black with dimensions of 160 x 86 x 150 mm (width x height x depth) and a weight of 2.11 kg.
Specifications
Power
- Total power: 700 W
- AC input voltage: 230 V
- Power Factor Correction (PFC) type: Active
- Power protection features: Over current, Over power, Over voltage, Short circuit, Under voltage
Ports & interfaces
- Motherboard power connector: 24-pin ATX
- Number of SATA power connectors: 7
- Peripheral (Molex) power connectors (4-pin): 2
- PCI Express power connectors (6+2 pin): 2

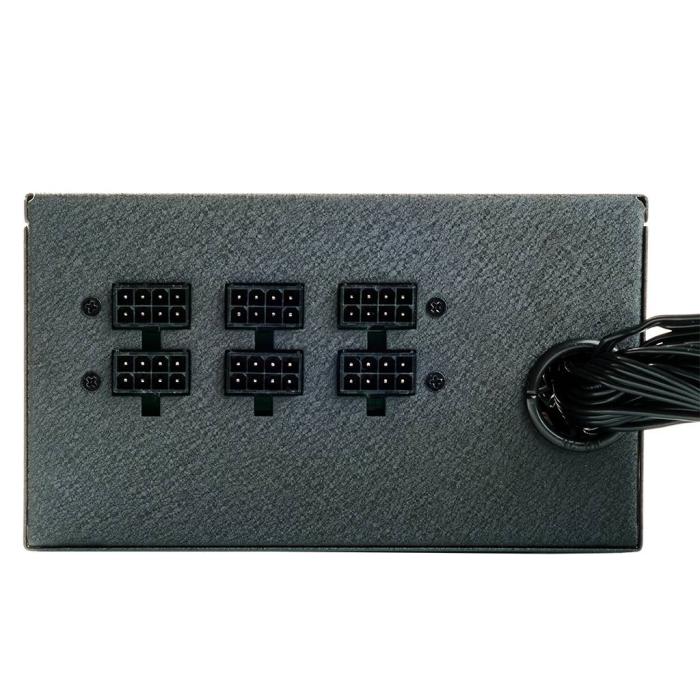

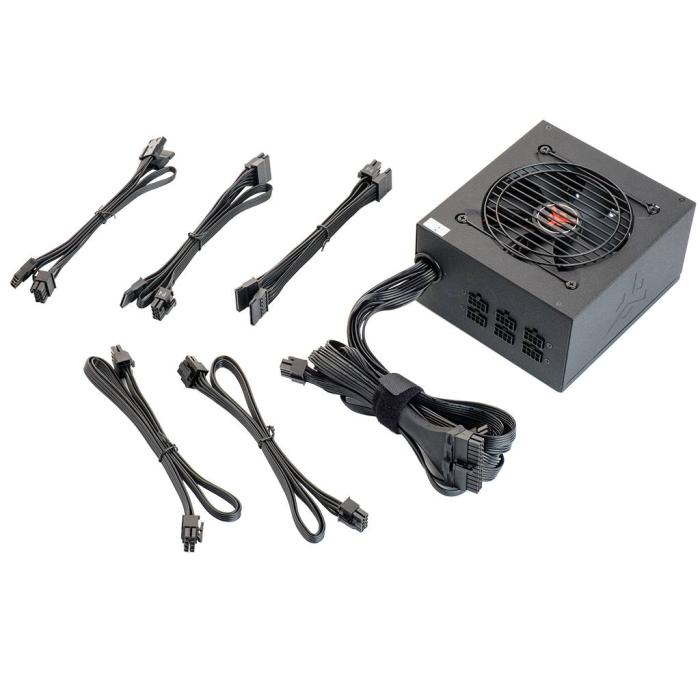

- Cabling type: Semi-Modular
Performance
- 80 PLUS certification: 80 PLUS Bronze
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 2.31
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 12 cm
- Number of fans: 1 fan(s)

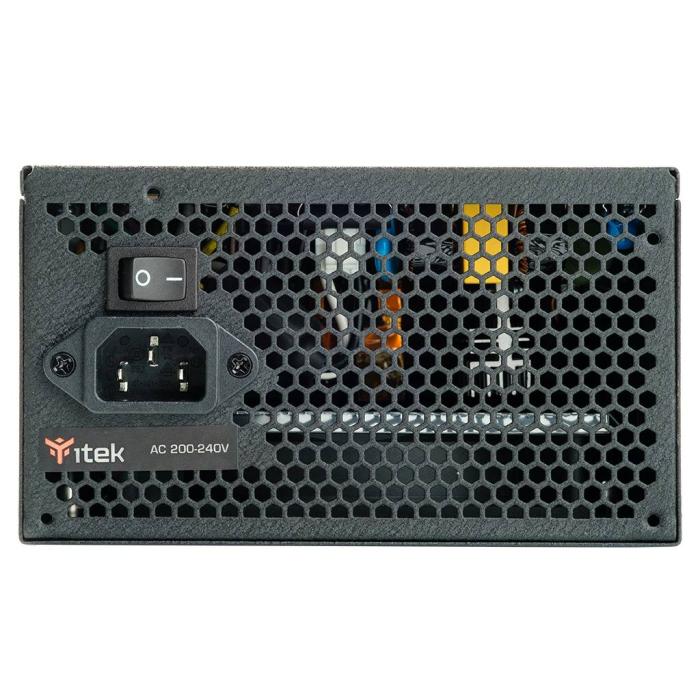

- On/off switch: Yes
Weight & dimensions
- Width: 160 mm
- Depth: 150 mm
- Height: 86 mm
- Weight: 2.11 kg
Packaging data
- Package weight: 2.7 kg
