Description

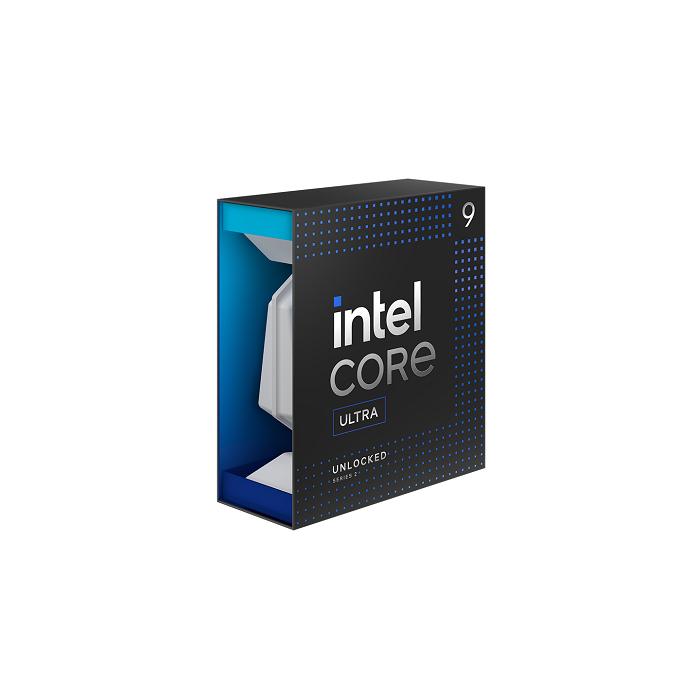

Intel Core Ultra 9 285K processor, boxed, with 24 cores and 24 threads, reaching a turbo frequency of 5.7 GHz and featuring 36 MB of Smart Cache. This model from the Intel Core Ultra Series 2, codenamed Arrow Lake and stepping B0, mounts on the LGA 1851 socket (Socket V1) and offers compatibility with AI software environments such as DirectML, OpenVINO, Windows ML, ONNX RT and WebNN. With a base power of 125 W and a maximum turbo power of 250 W, it provides up to 8 DMI lanes for chipset connectivity. Its box packaging includes the processor ready to install in your system.
Specifications
Processor
- Processor manufacturer: Intel
- Processor generation: Intel Core Ultra (Series 2)
- Processor model: 285K
- Processor family: Intel Core Ultra 9
- Processor cores: 24
- Processor socket: LGA 1851 (Socket V1)
- Processor threads: 24
- Processor operating modes: 64-bit
- Performance cores: 8
- Efficient cores: 16
- Processor boost frequency: 5.7 GHz
- Performance-core boost frequency: 5.5 GHz
- Performance-core base frequency: 3.7 GHz
- Efficient-core boost frequency: 4.6 GHz
- Efficient-core base frequency: 3.2 GHz
- Processor cache: 36 MB
- Processor cache type: Smart Cache
- Package type: Box
- Cooler included: No
- Processor base power: 125 W
- Maximum turbo power: 250 W
- AI software frameworks supported by CPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
- Stepping: B0
- Maximum number of DMI lanes: 8
- Processor codename: Arrow Lake
- Processor ARK ID: 241060
Neural processor unit (NPU)
- Neural processor unit (NPU): Intel AI Boost
- Sparsity support: Yes
- Windows Studio effects support: Yes
- AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
- Total processor performance up to: 36 TOPs
- NPU performance up to: 13 TOPs
- GPU performance up to: 8 TOPs
Memory
- Maximum internal memory supported by processor: 192 GB
- Memory types supported by processor: DDR5-SDRAM
- Memory clock speeds supported by processor: 6400 MHz
- Memory channels: Dual-channel
- ECC: Yes
Graphics
- On-board graphics card: Yes
- Discrete graphics card: No
- On-board graphics card model: Intel Graphics
- On-board graphics card outputs supported: HDMI 2.1, Embedded DisplayPort (eDP) 1.4b, DisplayPort 2.1
- On-board graphics card base frequency: 300 MHz
- On-board graphics card dynamic frequency (max): 2000 MHz
- Number of displays supported (on-board graphics): 4
- On-board graphics card DirectX version: 12.0
- On-board graphics card OpenGL version: 4.5
- On-board graphics card refresh rate at maximum resolution (DisplayPort): 60 Hz
- On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel): 60 Hz
- On-board graphics card refresh rate at maximum resolution (HDMI): 60 Hz
- On-board graphics card ID: 0x7D67
- Discrete graphics card model: Not available
- Xe-cores: 4
Features
- Execute Disable Bit: Yes
- Idle States: Yes
- Thermal Monitoring Technologies: Yes
- Market segment: Desktop
- Use conditions: Workstation, PC/Client/Tablet
- Maximum number of PCI Express lanes: 24
- PCI Express slots version: 4.0, 5.0
- Supported instruction sets: AVX 2.0, SSE4.1, SSE4.2
- Scalability: 1S
- Embedded options available: No
- Thermal solution specification: PCG 2020A
- Direct Media Interface (DMI) Revision: 4.0
- Export Control Classification Number (ECCN): 5A992C
- Commodity Classification Automated Tracking System (CCATS): 740.17B1
Processor special features
- Intel® Turbo Boost Technology: 2.0
- Intel® Quick Sync Video Technology: Yes
- Intel® AES New Instructions (Intel® AES-NI): Yes
- Enhanced Intel SpeedStep Technology: Yes
- Intel Trusted Execution Technology: Yes
- Intel® Speed Shift Technology: Yes
- Intel® Thermal Velocity Boost: Yes
- Intel® Turbo Boost Max Technology 3.0 frequency: 5.6 GHz
- Intel® Thunderbolt 4: Yes
- Intel® Thermal Velocity Boost Frequency: 5.7 GHz
- Intel® Control-flow Enforcement Technology (CET): Yes
- Intel® Thread Director: Yes
- Intel VT-x with Extended Page Tables (EPT): Yes
- Intel® Secure Key: Yes
- Intel® Active Management Technology (Intel® AMT): Yes
- Intel® OS Guard: Yes
- Intel 64: Yes
- Intel Virtualization Technology (VT-x): Yes
- Intel Virtualization Technology for Directed I/O (VT-d): Yes
- Intel Turbo Boost Max Technology 3.0: Yes
- Intel® Boot Guard: Yes
- Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
- Intel® Volume Management Device (VMD): Yes
- Mode-based Execute Control (MBE): Yes
- Intel® Standard Manageability (ISM): Yes
- Intel® One-Click Recovery: Yes
- Intel® Stable IT Platform Program (SIPP): Yes
- Intel® Remote Platform Erase (RPE): Yes
- Intel® Virtualization Technology with Redirect Protection (VT-rp): Yes
- Intel® Deep Learning Boost (Intel® DL Boost) on GPU: Yes
- Intel vPro® Enterprise Platform Eligibility: Yes
- Intel® Threat Detection Technology (TDT): Yes
- Intel® Hardware Shield Eligibility: Yes
- Intel® Total Memory Encryption - Multi Key: Yes
Operational conditions
- Maximum operating temperature: 105 °C
Technical details
- OpenCL version: 3.0
- Launch date: Q4'24
- Status: Launched
- Memory speed (max): 6400 MHz
Logistics data
- Harmonized System (HS) code: 8542310050
Other features
- L2 cache: 40960 KB
- Maximum internal memory: 192 GB
- Graphics output: DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b
