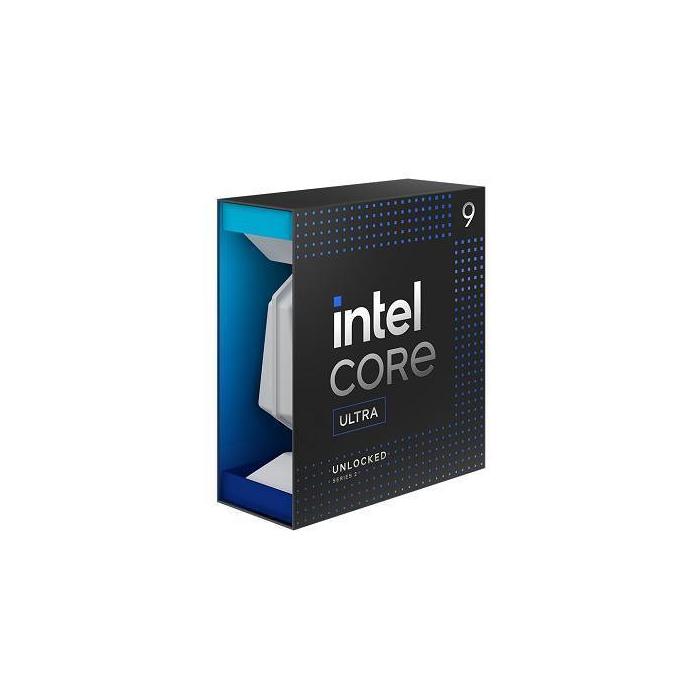

Intel Core Ultra 9 285 processor 36 MB Smart Cache Box

$556.07
$556.07 without VAT

More info

Brand: INTEL
SKU: 116555 PRC: 577987 EAN: 5032037282390 PN: bx80768285

Description

Specifications

Processor

  • Processor manufacturer: Intel
  • Processor generation: Intel Core Ultra (Series 2)
  • Processor model: 285
  • Processor family: Intel Core Ultra 9
  • Processor cores: 24
  • Processor socket: FCLGA1851
  • Processor threads: 24
  • Processor operating modes: 64-bit
  • Performance cores: 8
  • Efficient cores: 16
  • Processor boost frequency: 5.6 GHz
  • Performance-core boost frequency: 5.4 GHz
  • Performance-core base frequency: 2.5 GHz
  • Efficient-core boost frequency: 4.6 GHz
  • Efficient-core base frequency: 1.9 GHz
  • Processor cache: 36 MB
  • Processor cache type: Smart Cache
  • Box: Yes
  • Processor base power: 65 W
  • Maximum turbo power: 182 W
  • AI software frameworks supported by CPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
  • Maximum number of DMI lanes: 8
  • Processor codename: Arrow Lake
  • Processor ARK ID: 241061

Neural processor unit (NPU)

  • Neural processor unit (NPU): Intel AI Boost
  • Sparsity support: Yes
  • Windows Studio effects support: Yes
  • AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
  • Total processor performance up to: 36 TOPs
  • NPU performance up to: 13 TOPs
  • GPU performance up to: 8 TOPs

Memory

  • Maximum internal memory supported by processor: 192 GB
  • Memory types supported by processor: DDR5-SDRAM
  • Memory clock speeds supported by processor: 6400 MHz
  • Memory channels: Dual-channel
  • ECC: Yes

Graphics

  • On-board graphics card: Yes
  • Discrete graphics card: No
  • On-board graphics card model: Intel Graphics
  • On-board graphics card outputs supported: HDMI 2.1, Embedded DisplayPort (eDP) 1.4b, DisplayPort 2.1
  • On-board graphics card base frequency: 300 MHz
  • On-board graphics card dynamic frequency (max): 2000 MHz
  • Number of displays supported (on-board graphics): 4
  • On-board graphics card DirectX version: 12.0
  • On-board graphics card OpenGL version: 4.5
  • On-board graphics card refresh rate at maximum resolution (DisplayPort): 60 Hz
  • On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel): 60 Hz
  • On-board graphics card refresh rate at maximum resolution (HDMI): 60 Hz
  • On-board graphics card ID: 0x7D67
  • Discrete graphics card model: Not available
  • Xe-cores: 4

Features

  • Execute Disable Bit: Yes
  • Idle States: Yes
  • Thermal Monitoring Technologies: Yes
  • Market segment: Desktop
  • Use conditions: Workstation, PC/Client/Tablet
  • Maximum number of PCI Express lanes: 24
  • PCI Express slots version: 4.0, 5.0
  • Supported instruction sets: AVX 2.0, SSE4.1, SSE4.2
  • Scalability: 1S
  • Embedded options available: Yes
  • Direct Media Interface (DMI) Revision: 4.0

Processor special features

  • Intel® Turbo Boost Technology: 2.0
  • Intel® Quick Sync Video Technology: Yes
  • Intel® AES New Instructions (Intel® AES-NI): Yes
  • Enhanced Intel SpeedStep Technology: Yes
  • Intel Trusted Execution Technology: Yes
  • Intel® Speed Shift Technology: Yes
  • Intel® Thermal Velocity Boost: Yes
  • Intel® Turbo Boost Max Technology 3.0 frequency: 5.5 GHz
  • Intel® Thunderbolt 4: Yes
  • Intel® Thermal Velocity Boost Frequency: 5.6 GHz
  • Intel® Control-flow Enforcement Technology (CET): Yes
  • Intel® Thread Director: Yes
  • Intel VT-x with Extended Page Tables (EPT): Yes
  • Intel® Secure Key: Yes
  • Intel® Active Management Technology (Intel® AMT): Yes
  • Intel® OS Guard: Yes
  • Intel 64: Yes
  • Intel Virtualization Technology (VT-x): Yes
  • Intel Virtualization Technology for Directed I/O (VT-d): Yes
  • Intel Turbo Boost Max Technology 3.0: Yes
  • Intel® Boot Guard: Yes
  • Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
  • Intel® Volume Management Device (VMD): Yes
  • Mode-based Execute Control (MBE): Yes
  • Intel® Standard Manageability (ISM): Yes
  • Intel® One-Click Recovery: Yes
  • Intel® Stable IT Platform Program (SIPP): Yes
  • Intel® Remote Platform Erase (RPE): Yes
  • Intel® Virtualization Technology with Redirect Protection (VT-rp): Yes
  • Intel® Deep Learning Boost (Intel® DL Boost) on GPU: Yes
  • Intel vPro® Enterprise Platform Eligibility: Yes
  • Intel® Threat Detection Technology (TDT): Yes
  • Intel® Hardware Shield Eligibility: Yes
  • Intel® Total Memory Encryption - Multi Key: Yes

Operational conditions

  • Maximum operating temperature: 105 °C

Technical details

  • OpenCL version: 3.0
  • Launch date: Q1'25
  • Status: Launched

Other features

  • L2 cache: 40960 KB
  • Maximum internal memory: 192 GB
  • Graphics output: DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b
