Description

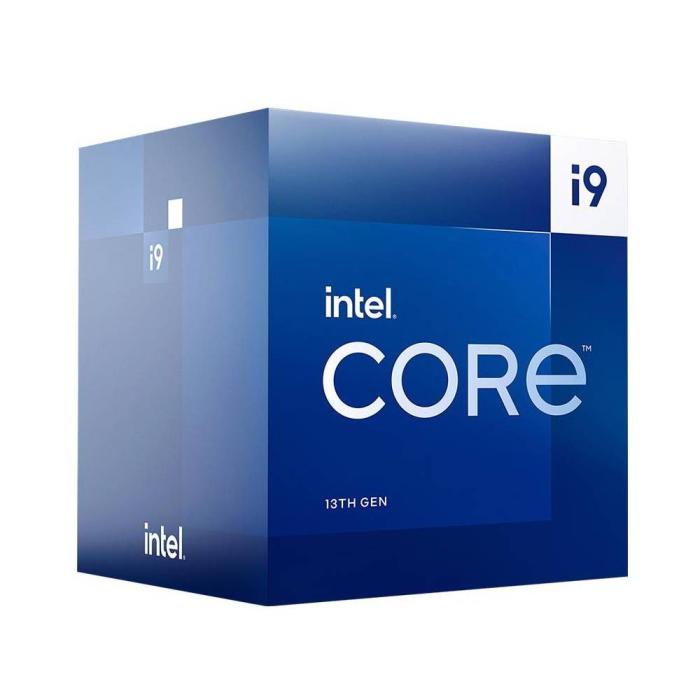

Intel Core i9-13900KS processor comes in a box format with 24 cores and 32 threads, combining 8 performance cores with a base frequency of 3.2 GHz and turbo up to 5.4 GHz, alongside 16 efficient cores reaching up to 4.3 GHz in accelerated mode. Its 36 MB Smart Cache and LGA 1700 socket allow integration into motherboards compatible with the Intel Core i9 family, managing a base power of 150 W that can rise to 253 W in maximum turbo mode. This processor uses the DMI4 bus with up to 8 lanes, facilitating communication with the chipset and other system components. Designed for demanding workloads, it offers a balanced response between high-performance and efficient cores, adapting to tasks requiring both speed and multitasking.
Specifications
Processor
- Processor manufacturer: Intel
- Processor generation: 13th gen Intel® Core™ i9
- Processor model: i9-13900KS
- Processor family: Intel® Core™ i9
- Processor cores: 24
- Processor socket: LGA 1700
- Processor threads: 32
- Processor operating modes: 64-bit
- Performance cores: 8
- Efficient cores: 16
- Processor boost frequency: 6 GHz
- Performance-core boost frequency: 5.4 GHz
- Performance-core base frequency: 3.2 GHz
- Efficient-core boost frequency: 4.3 GHz
- Efficient-core base frequency: 2.4 GHz
- Processor cache: 36 MB
- Processor cache type: Smart Cache
- Package type: Box
- Cooler included: No
- Processor base power: 150 W
- Maximum turbo power: 253 W
- Stepping: B0
- Bus type: DMI4
- Maximum number of DMI lanes: 8
- Memory bandwidth supported by processor (max): 89.6 GB/s
- Processor codename: Raptor Lake
- Processor ARK ID: 232167
Memory
- Maximum internal memory supported by processor: 192 GB
- Memory types supported by processor: DDR4-SDRAM, DDR5-SDRAM
- Memory channels: Dual-channel
- ECC: Yes
- Non-ECC: Yes
- Memory bandwidth (max): 89.6 GB/s
Graphics
- On-board graphics card: Yes
- Discrete graphics card: No
- On-board graphics card model: Intel UHD Graphics 770
- On-board graphics card outputs supported: Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1
- On-board graphics card base frequency: 300 MHz
- On-board graphics card dynamic frequency (max): 1650 MHz
- Number of displays supported (on-board graphics): 4
- On-board graphics card DirectX version: 12.0
- On-board graphics card OpenGL version: 4.5
- On-board graphics card maximum resolution (DisplayPort): 7680 x 4320 pixels
- On-board graphics card maximum resolution (eDP - Integrated Flat Panel): 5120 x 3200 pixels
- On-board graphics card maximum resolution (HDMI): 4096 x 2160 pixels
- On-board graphics card refresh rate at maximum resolution (DisplayPort): 60 Hz
- On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel): 120 Hz
- On-board graphics card refresh rate at maximum resolution (HDMI): 60 Hz
- On-board graphics card ID: 0xA780
- Discrete graphics card model: Not available
- Number of execution units: 32
- Multi-Format Codec Engines: 2
Features
- Execute Disable Bit: Yes
- Idle States: Yes
- Thermal Monitoring Technologies: Yes
- Market segment: Desktop
- Use conditions: PC/Client/Tablet
- Maximum number of PCI Express lanes: 20
- PCI Express slots version: 5.0, 4.0
- PCI Express configurations: 1x16+1x4, 2x8+1x4
- Supported instruction sets: SSE4.1, SSE4.2, AVX 2.0
- Scalability: 1S
- CPU configuration (max): 1
- Embedded options available: No
- Direct Media Interface (DMI) Revision: 4.0
- Export Control Classification Number (ECCN): 5A992C
- Commodity Classification Automated Tracking System (CCATS): 740.17B1
Processor special features
- Intel® Hyper Threading Technology (Intel® HT Technology): Yes
- Intel® Turbo Boost Technology: 2.0
- Intel® Quick Sync Video Technology: Yes
- Intel® Clear Video HD Technology (Intel® CVT HD): Yes
- Intel® AES New Instructions (Intel® AES-NI): Yes
- Enhanced Intel SpeedStep Technology: Yes
- Intel Trusted Execution Technology: Yes
- Intel® Speed Shift Technology: Yes
- Intel® Thermal Velocity Boost: Yes
- Intel® Adaptive Boost Technology: Yes
- Intel® Turbo Boost Max Technology 3.0 frequency: 5.8 GHz
- Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0: Yes
- Intel® Thermal Velocity Boost Frequency: 6 GHz
- Intel® Control-flow Enforcement Technology (CET): Yes
- Intel® Thread Director: Yes
- Intel VT-x with Extended Page Tables (EPT): Yes
- Intel® Secure Key: Yes
- Intel® Active Management Technology (Intel® AMT): Yes
- Intel Stable Image Platform Program (SIPP): Yes
- Intel® OS Guard: Yes
- Intel 64: Yes
- Intel Virtualization Technology (VT-x): Yes
- Intel Virtualization Technology for Directed I/O (VT-d): Yes
- Intel Turbo Boost Max Technology 3.0: Yes
- Intel® Boot Guard: Yes
- Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
- Intel® Volume Management Device (VMD): Yes
- Mode-based Execute Control (MBE): Yes
- Intel® vPro™ Platform Eligibility: Yes
- Intel® Standard Manageability (ISM): Yes
- Intel® One-Click Recovery: Yes
- Intel® Stable IT Platform Program (SIPP): Yes
- Intel® Remote Platform Erase (RPE): Yes
- Intel® Virtualization Technology with Redirect Protection (VT-rp): Yes
- Intel vPro® Enterprise Platform Eligibility: Yes
- Intel® Threat Detection Technology (TDT): Yes
- Intel® Hardware Shield Eligibility: Yes
- Intel® Total Memory Encryption - Multi Key: Yes
- Intel vPro® Essentials Platform Eligibility: Yes
Operational conditions
- Tjunction: 100 °C
Technical details
- Target market: Gaming, Content Creation
- OpenCL version: 3.0
- Launch date: Q1'23
- Status: Launched
Logistics data
- Harmonized System (HS) code: 8542310001
Other features
- L2 cache: 32768 KB
- Maximum internal memory: 192 GB
- Graphics output: eDP 1.4b, DP 1.4a, HDMI 2.1
