Description

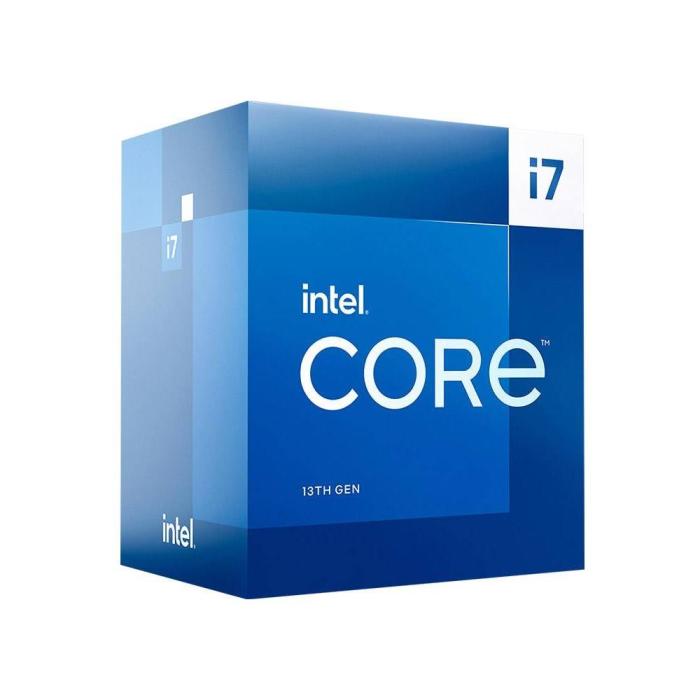

13th-generation Intel Core i7-13700 processor in box format, with 16 cores combining performance and efficient cores for demanding tasks. Its 30 MB Smart Cache and LGA 1700 socket make it compatible with modern motherboards. It offers supported memory bandwidth of up to 89.6 GB/s, with a base power of 65 W and a maximum turbo power of 219 W. This model operates in 64-bit and uses DMI4 bus, with base frequencies of 2.1 GHz on performance cores and 1.5 GHz on efficient cores, covering general computing and productivity needs.
Specifications
Processor
- Processor manufacturer: Intel
- Processor generation: 13th gen Intel® Core™ i7
- Processor model: i7-13700
- Processor family: Intel® Core™ i7
- Processor cores: 16
- Processor socket: LGA 1700
- Processor threads: 24
- Processor operating modes: 64-bit
- Performance cores: 8
- Efficient cores: 8
- Processor boost frequency: 5.2 GHz
- Performance-core boost frequency: 5.1 GHz
- Performance-core base frequency: 2.1 GHz
- Efficient-core boost frequency: 4.1 GHz
- Efficient-core base frequency: 1.5 GHz
- Processor cache: 30 MB
- Processor cache type: Smart Cache
- Package type: Box
- Cooler included: Yes
- Processor base power: 65 W
- Maximum turbo power: 219 W
- Bus type: DMI4
- Maximum number of DMI lanes: 8
- Memory bandwidth supported by processor (max): 89.6 GB/s
- Processor codename: Raptor Lake
- Processor ARK ID: 230490
Memory
- Maximum internal memory supported by processor: 192 GB
- Memory types supported by processor: DDR4-SDRAM, DDR5-SDRAM
- Memory channels: Dual-channel
- ECC: Yes
- Non-ECC: Yes
- Memory bandwidth (max): 89.6 GB/s
Graphics
- On-board graphics card: Yes
- Discrete graphics card: No
- On-board graphics card model: Intel UHD Graphics 770
- On-board graphics card outputs supported: Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1
- On-board graphics card base frequency: 300 MHz
- On-board graphics card dynamic frequency (max): 1600 MHz
- Number of displays supported (on-board graphics): 4
- On-board graphics card DirectX version: 12.0
- On-board graphics card OpenGL version: 4.5
- On-board graphics card maximum resolution (DisplayPort): 7680 x 4320 pixels
- On-board graphics card maximum resolution (eDP - Integrated Flat Panel): 5120 x 3200 pixels
- On-board graphics card maximum resolution (HDMI): 4096 x 2160 pixels
- On-board graphics card refresh rate at maximum resolution (DisplayPort): 60 Hz
- On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel): 120 Hz
- On-board graphics card refresh rate at maximum resolution (HDMI): 60 Hz
- On-board graphics card ID: 0xA780
- Discrete graphics card model: Not available
- Number of execution units: 32
- Multi-Format Codec Engines: 2
Features
- CPU configuration (max): 1
- Embedded options available: Yes
- Direct Media Interface (DMI) Revision: 4.0
- Export Control Classification Number (ECCN): 5A992C
- Commodity Classification Automated Tracking System (CCATS): 740.17B1
- Execute Disable Bit: Yes
- Idle States: Yes
- Thermal Monitoring Technologies: Yes
- Market segment: Desktop
- Use conditions: PC/Client/Tablet, Workstation
- Maximum number of PCI Express lanes: 20
- PCI Express slots version: 5.0, 4.0
- PCI Express configurations: 1x16+1x4, 2x8+1x4
- Supported instruction sets: SSE4.1, SSE4.2, AVX 2.0
- Scalability: 1S
Processor special features
- Intel® Hyper Threading Technology (Intel® HT Technology): Yes
- Intel® Turbo Boost Technology: 2.0
- Intel® Quick Sync Video Technology: Yes
- Intel® Clear Video HD Technology (Intel® CVT HD): Yes
- Intel® AES New Instructions (Intel® AES-NI): Yes
- Enhanced Intel SpeedStep Technology: Yes
- Intel Trusted Execution Technology: Yes
- Intel® Speed Shift Technology: Yes
- Intel® Turbo Boost Max Technology 3.0 frequency: 5.2 GHz
- Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0: Yes
- Intel® Control-flow Enforcement Technology (CET): Yes
- Intel® Thread Director: Yes
- Intel VT-x with Extended Page Tables (EPT): Yes
- Intel® Secure Key: Yes
- Intel® Active Management Technology (Intel® AMT): Yes
- Intel Stable Image Platform Program (SIPP): Yes
- Intel® OS Guard: Yes
- Intel 64: Yes
- Intel Virtualization Technology (VT-x): Yes
- Intel Virtualization Technology for Directed I/O (VT-d): Yes
- Intel Turbo Boost Max Technology 3.0: Yes
- Intel® Boot Guard: Yes
- Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
- Intel® Volume Management Device (VMD): Yes
- Mode-based Execute Control (MBE): Yes
- Intel® vPro™ Platform Eligibility: Yes
- Intel® Standard Manageability (ISM): Yes
- Intel® One-Click Recovery: Yes
- Intel® Remote Platform Erase (RPE): Yes
- Intel® Virtualization Technology with Redirect Protection (VT-rp): Yes
- Intel vPro® Enterprise Platform Eligibility: Yes
- Intel® Threat Detection Technology (TDT): Yes
- Intel® Hardware Shield Eligibility: Yes
- Intel® Total Memory Encryption - Multi Key: Yes
- Intel vPro® Essentials Platform Eligibility: Yes
Operational conditions
- Tjunction: 100 °C
Technical details
- Target market: Gaming, Content Creation
- OpenCL version: 3.0
- Launch date: Q1'23
- Status: Launched
Logistics data
- Harmonized System (HS) code: 8542310001
Weight & dimensions
- Processor package size: 45 x 37.5 mm
Other features
- L2 cache: 24576 KB
- Maximum internal memory: 192 GB
- Graphics output: eDP 1.4b, DP 1.4a, HDMI 2.1
