Description

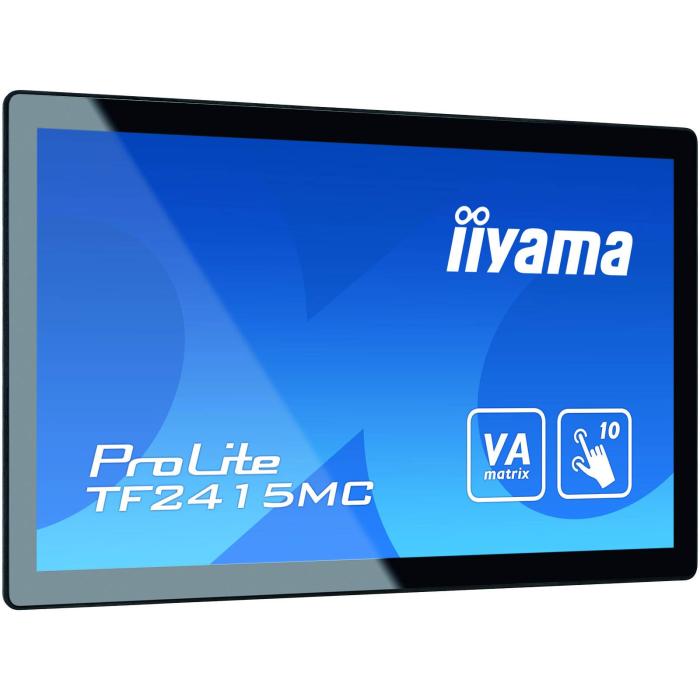

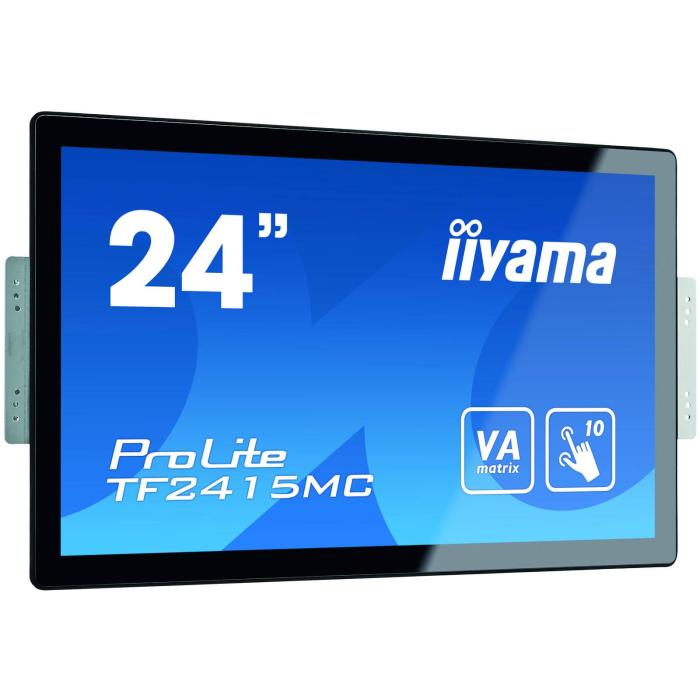

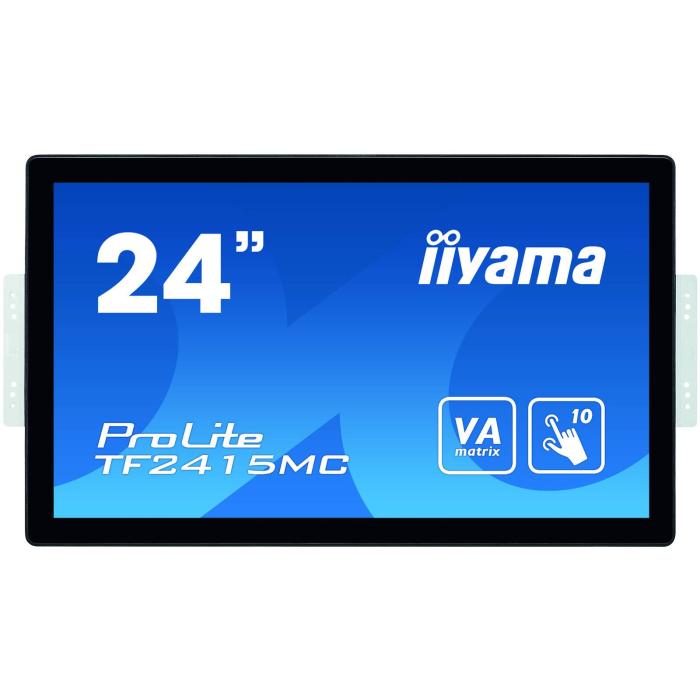

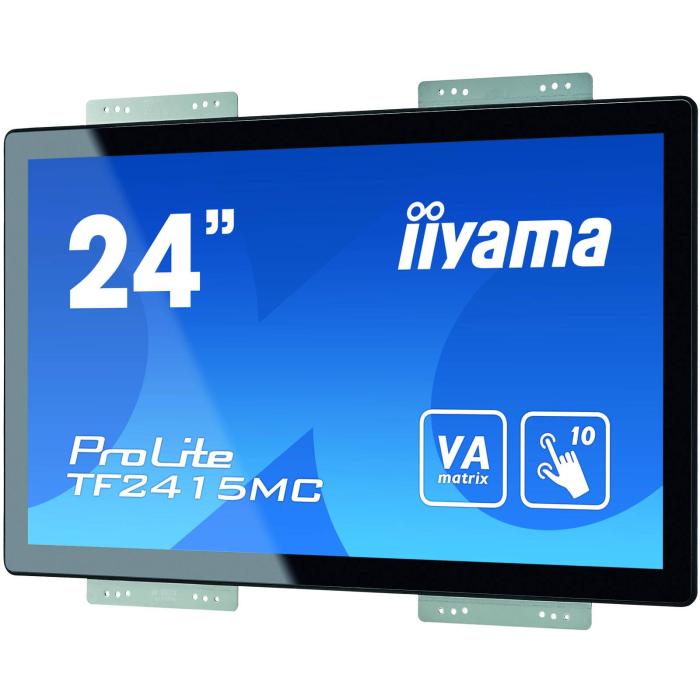

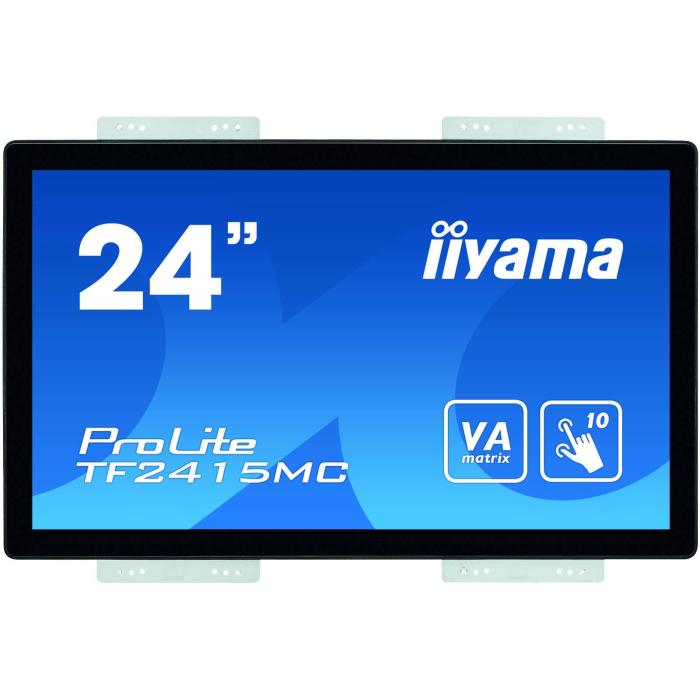

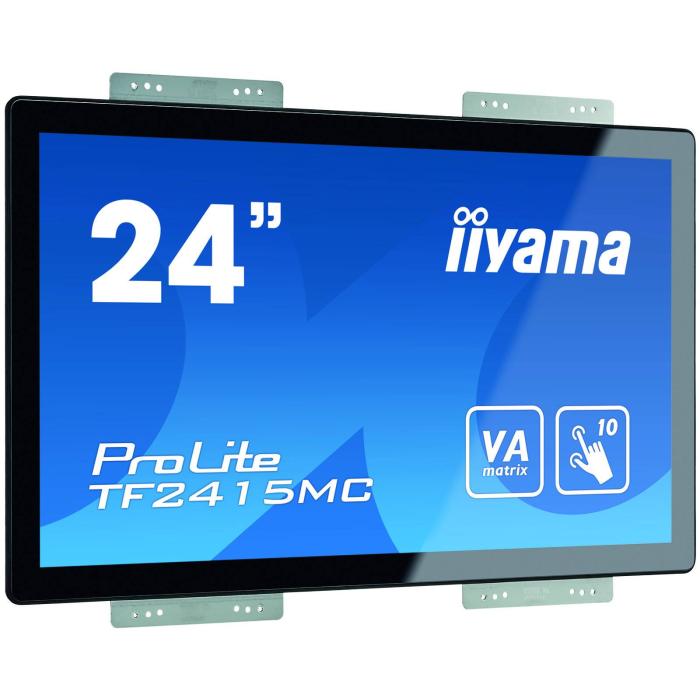

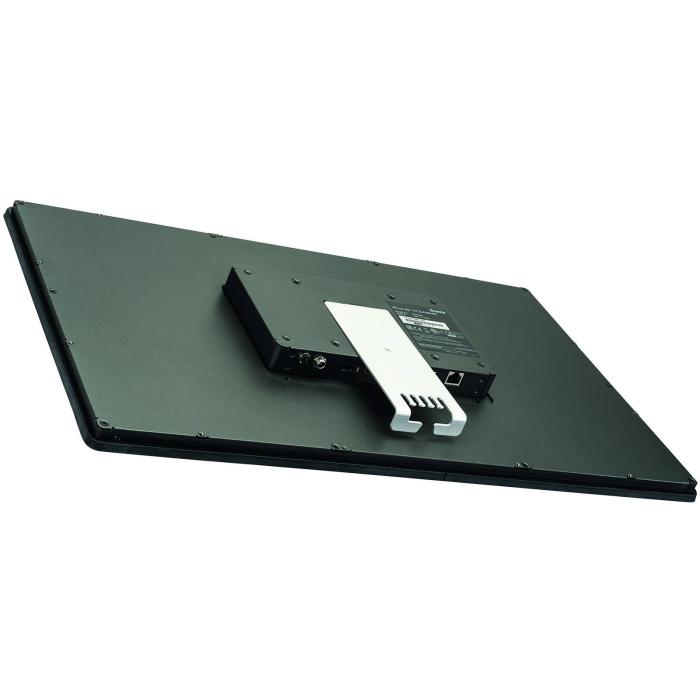

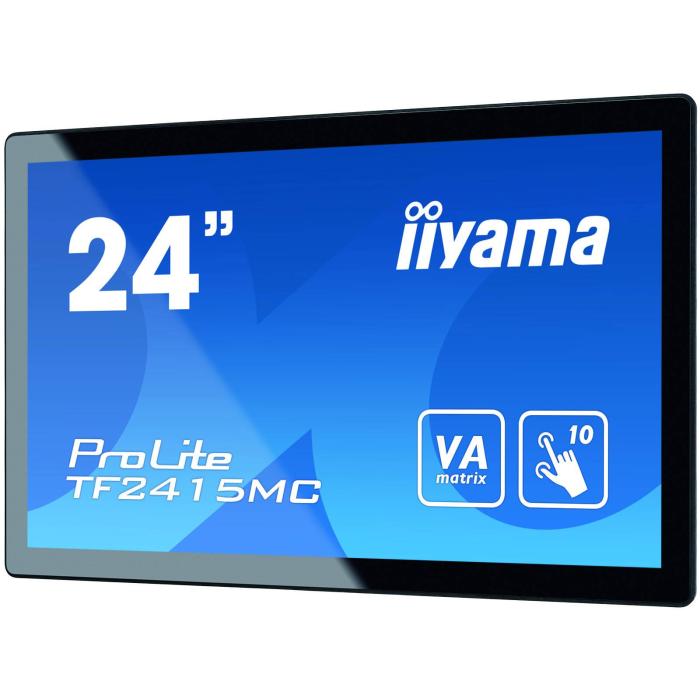

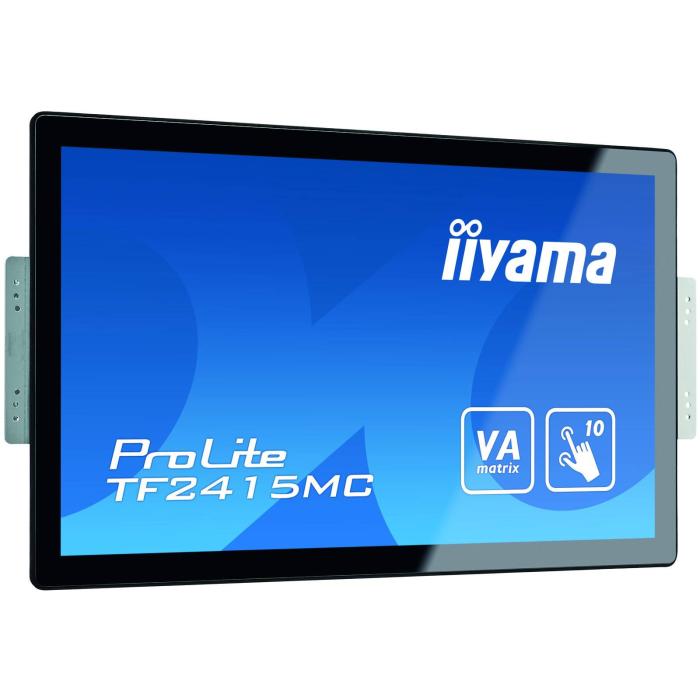

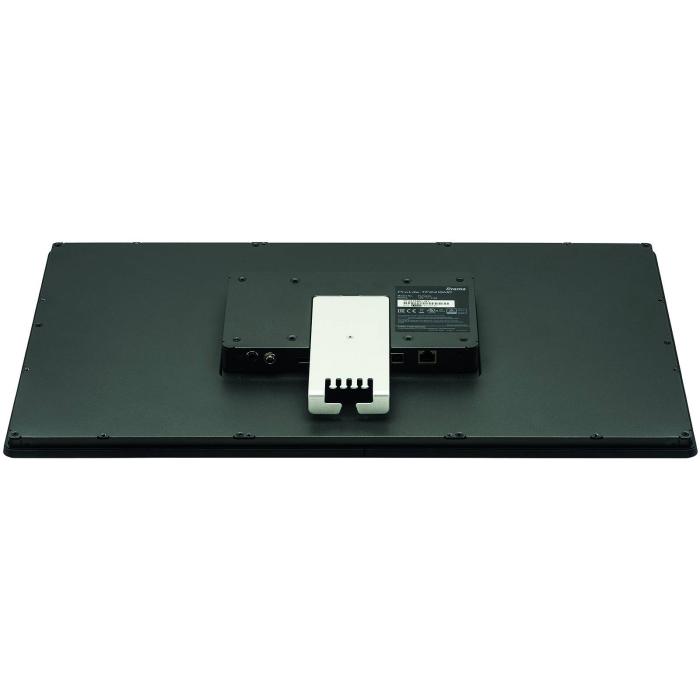

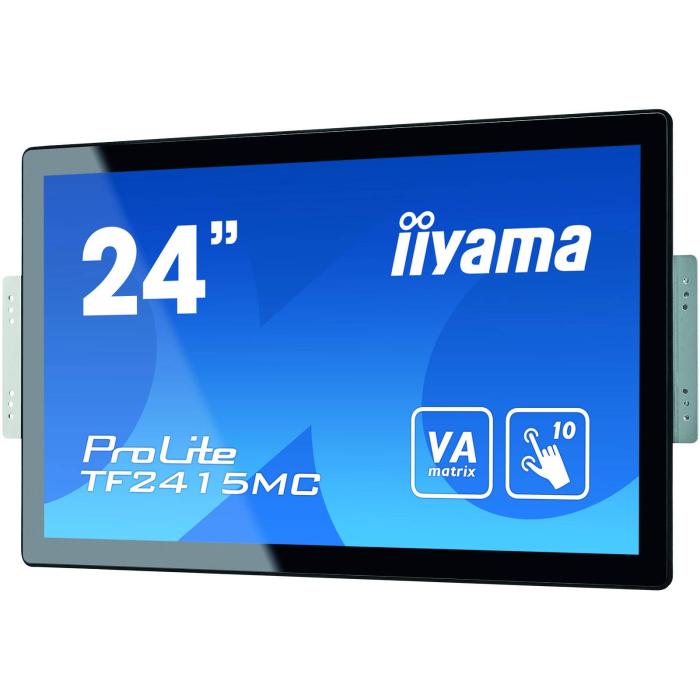

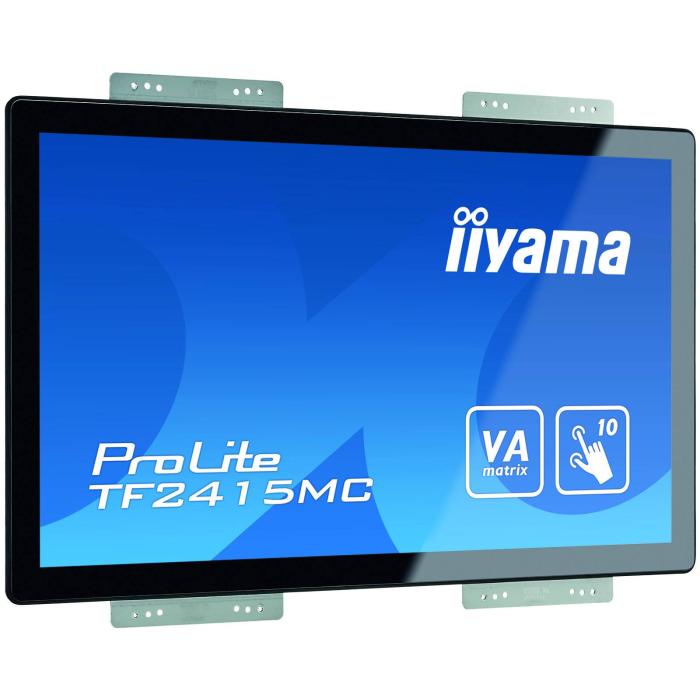

iiyama ProLite Open Frame PCAP 10 point touch screen equipped with touch through glass function, 60.5 cm (23.8''), 1920 x 1080 pixels, Full HD, LCD, 16 ms, Black

Specifications

Display


  • Display diagonal: 60.5 cm (23.8")
  • Display resolution: 1920 x 1080 pixels
  • HD type: Full HD
  • Native aspect ratio: 16:9
  • Display technology: LCD
  • Touchscreen: Yes
  • Touchscreen type: Multi-user
  • Touchscreen technology: Projected capacitive system
  • Touch technology: Multi-touch
  • Number of simultaneous touchpoints: 10
  • Display brightness: 315 cd/m²
  • Response time: 16 ms
  • Screen shape: Flat
  • Aspect ratio: 16:9
  • Contrast ratio (typical): 3000:1
  • Viewing angle, horizontal: 178°
  • Viewing angle, vertical: 178°
  • Display number of colours: 16.78 million colours
  • Pixel pitch: 0.2745 x 0.2745 mm
  • Horizontal scan range: 31.4 - 82 kHz
  • Vertical scan range: 56 - 75 Hz
  • Display diagonal (metric): 60.5 cm
  • Separate H/V sync: Yes

Performance


  • NVIDIA G-SYNC: No
  • AMD FreeSync: No
  • OmniTapps Multitouch compatibility: No

Multimedia


  • Built-in microphone: No
  • Built-in camera: No

Design


  • Product colour: Black

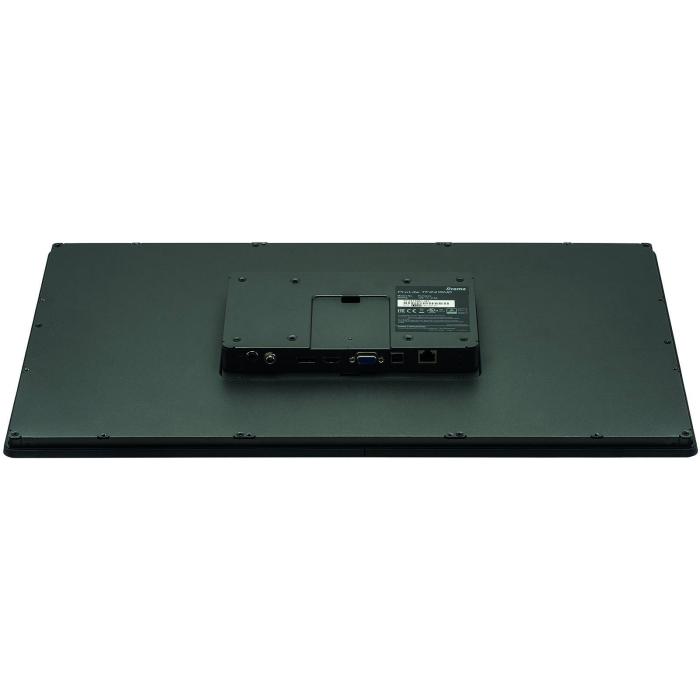

Ports & interfaces


  • USB Touch port: Yes
  • VGA (D-Sub) ports quantity: 1
  • HDMI: Yes
  • HDMI ports quantity: 1
  • DisplayPorts quantity: 1
  • Audio output: 1
  • HDCP: Yes

Ergonomics


  • Plug and Play: Yes

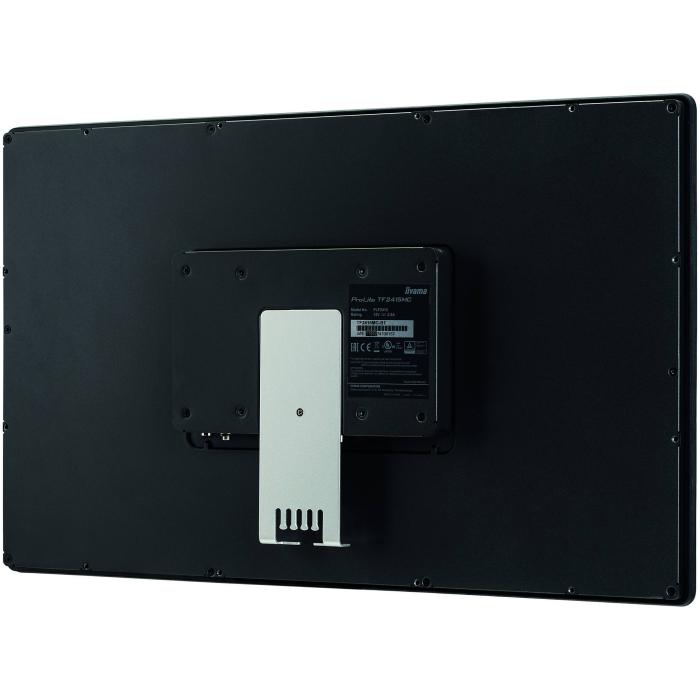

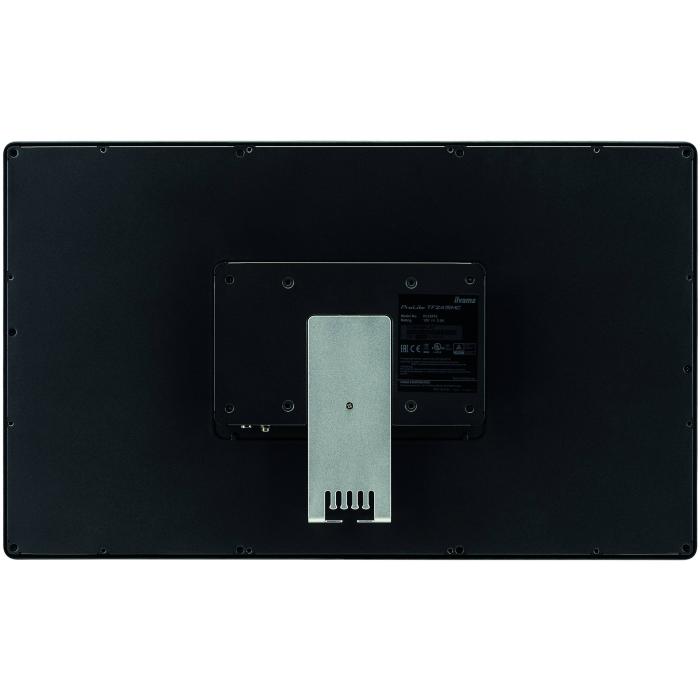

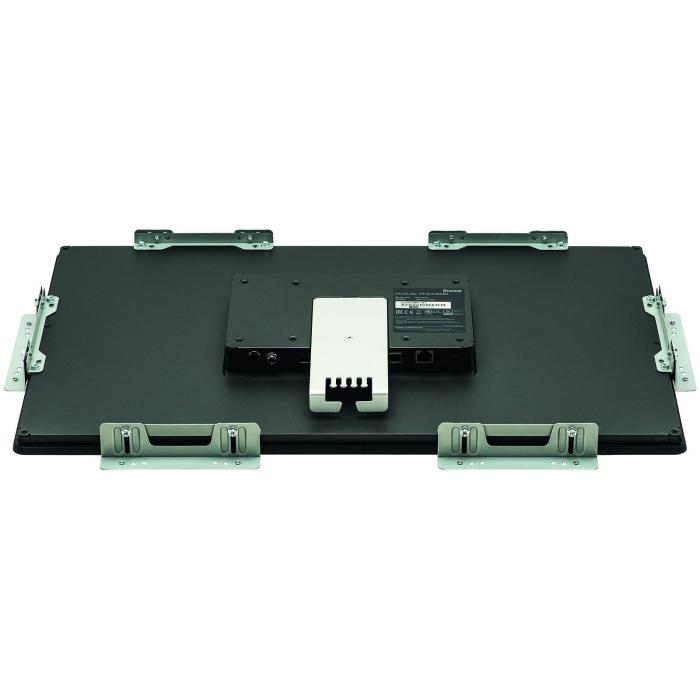

  • VESA mounting: Yes
  • Panel mounting interface: 100 x 100 mm
  • Wall mountable: Yes
  • On Screen Display (OSD) languages: German, English, Spanish, French, Italian, Japanese
  • Number of OSD languages: 7

Power


  • Energy efficiency class (SDR): F
  • Energy consumption (SDR) per 1000 hours: 22 kWh
  • Power consumption (typical): 25 W
  • Power consumption (standby): 1.2 W
  • Power consumption (off): 1.2 W
  • Power supply type: DC
  • Energy efficiency scale: A to G
  • European Product Registry for Energy Labelling (EPREL) code: 378595

Operational conditions


  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 20 - 80%
  • Storage relative humidity (H-H): 10 - 90%

Weight & dimensions


  • Width (without stand): 575 mm
  • Depth (without stand): 42.5 mm
  • Height (without stand): 347 mm
  • Weight (without stand): 5.8 kg

Packaging content


  • Cables included: AC, DisplayPort, HDMI, USB
  • Quick start guide: Yes

Other features


  • International Protection (IP) code: IP65
  • AC adapter included: Yes
  • Display viewable area (HxV): 527.04 x 296.46 mm
  • Placement supported: Horizontal/Vertical
  • Full HD: Yes
  • Glass protection: Yes
  • Certification: CB, CE, TÜV-Bauart, CU, cULus

Logistics data


  • Harmonized System (HS) code: 85285210
