Description

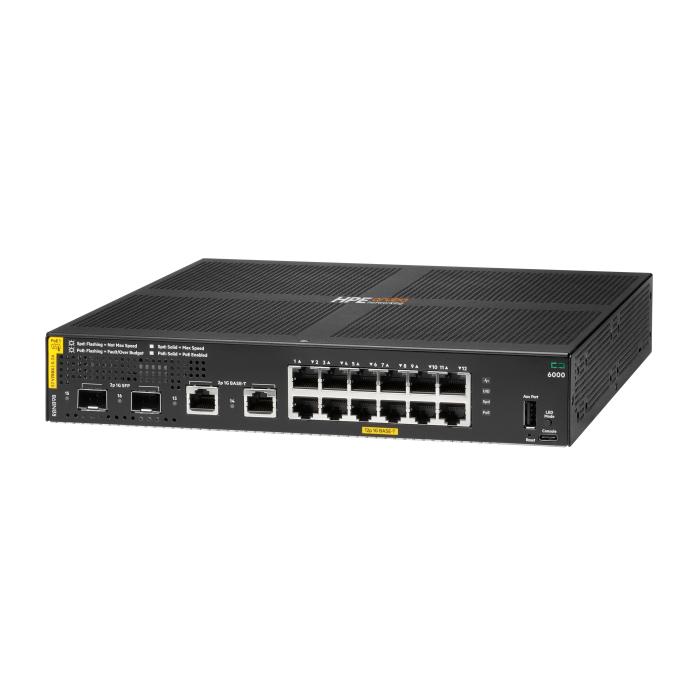

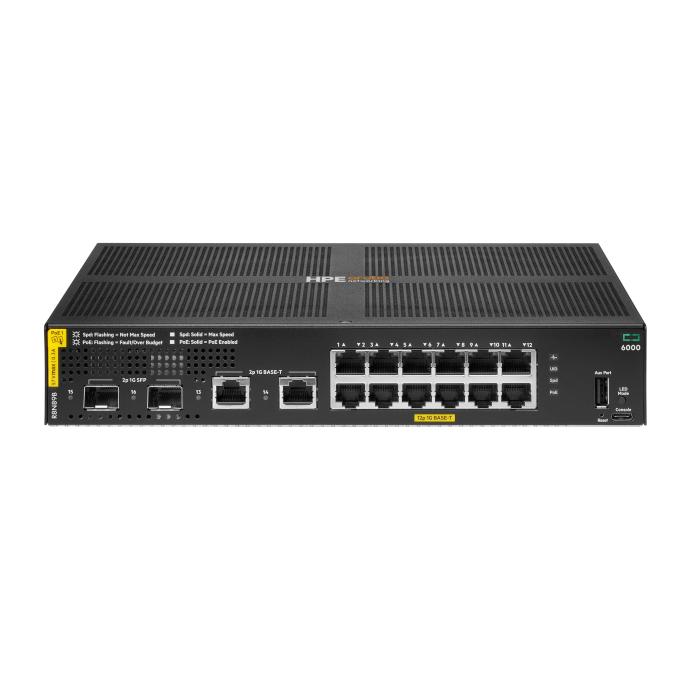

The HPE Aruba Networking CX 6000 12p is an L3 managed switch with 12 Gigabit Ethernet ports (10/100/1000) and 2 1G SFP slots, with a PoE budget of 139 W. Its switching capacity reaches 32 Gbit/s and it offers a latency of 2.3 µs at 1 Gbps. It is powered by a dual-core ARM Cortex-A9 processor at 1016 MHz, accompanied by 4 GB of DDR3 memory and 16 GB of eMMC flash. It includes 256 IPv4 FIB entries and IPv4/IPv6 access-control list functions, as well as MAC-based authentication and DHCP client. It supports port mirroring and flow control, and is powered by alternating current. With a 1U form factor, it weighs 2.8 kg and measures 44 x 255 x 254 mm (width x height x depth).
Specifications
Management features
- Switch type: Managed
- Switch layer: L3
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Cloud-managed: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 12
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP module slots quantity: 2
- Console port: USB
Network
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.
- 10G support: No
- Port mirroring: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Auto MDI/MDI-X: Yes
- Spanning tree protocol: Yes
- VLAN support: Yes
Data transmission
- Switching capacity: 32 Gbit/s
- Throughput: 23.8 Mpps
- MAC address table: 8192 entries
- Latency (1 Gbps): 2.3 µs
- Static route: Yes
- Packet buffer memory: 12.38 MB
Security
- DHCP features: DHCP client
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Authentication: MAC-based authentication
Multicast features
- Multicast support: Yes
Protocols
- IPv4 & IPv6 features: IPv4/IPv6 access-control list (ACL)
- IPv4 FIB entries: 256
- IPv6 FIB entries: 128
Design
- Rack mounting: Yes
- Stackable: No
- Form factor: 1U
Performance
- Built-in processor: Yes
- Processor model: ARM Cortex-A9
- Processor frequency: 1016 MHz
- Memory type: DDR3-SDRAM
- Internal memory: 4096 MB
- Flash memory: 16384 MB
Power
- Power source: AC
- Power supply included: Yes
- AC input voltage: 200 - 240 V
- Power consumption note: Max. Power (w/o PoE): 19.7W Max. Power (w/ PoE): 165W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Total Power over Ethernet (PoE) budget: 139 W
Other features
- Latency: 1 Gbps: 2.3 μSec
- Memory and processor: CPU: Dual-core Arm Cortex-A9 @ 1016 MHz Memory: 4 GB DDR3 Flash: 16 GB eMMC
- I/O ports: 12 x 10/100/1000BASE-T Class 4 PoE ports 2 x 1 G SFP ports 2 x 1 GbE ports Supports PoE Standards IEEE 802.3af, 802.3at 1 x USB-
- Performance management: Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 15 - 95%
- Storage relative humidity (H-H): 15 - 90%
Weight & dimensions
- Width: 44 mm
- Depth: 254 mm
- Height: 255 mm
- Weight: 2.8 kg
Logistics data
- Harmonized System (HS) code: 85176990
