Description

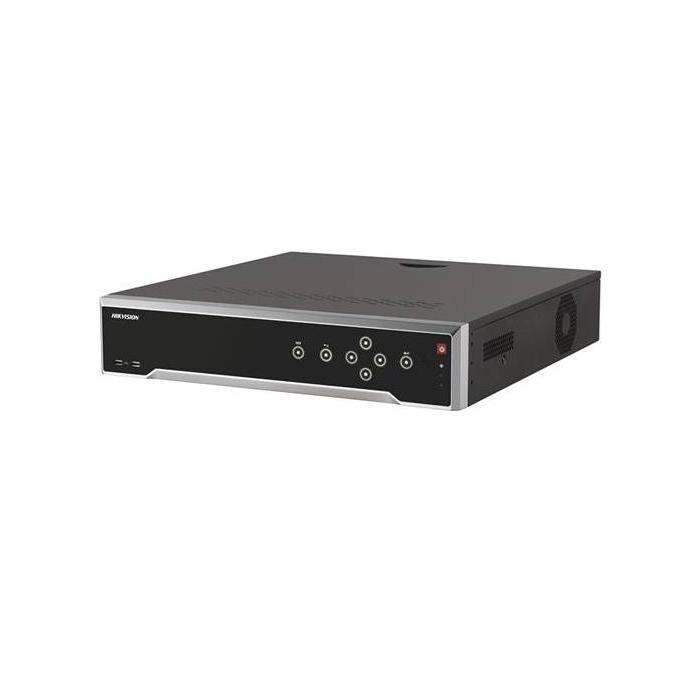

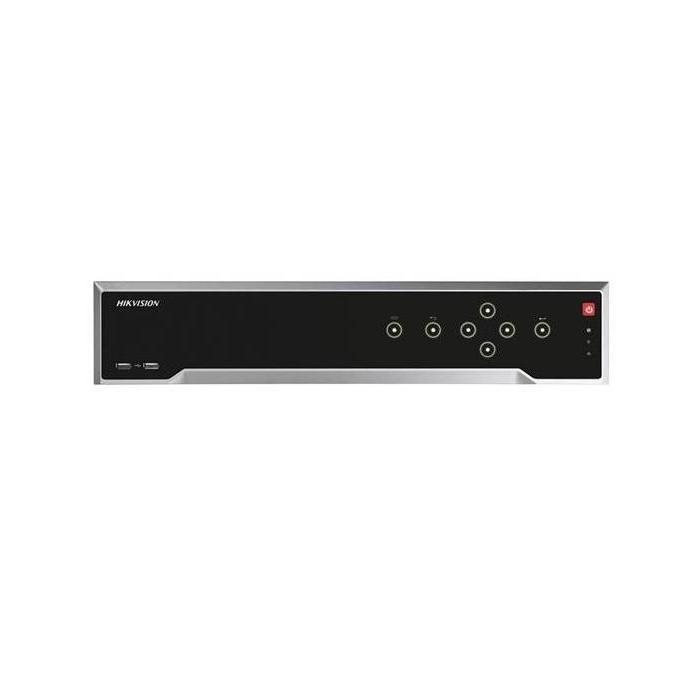

Hikvision Digital Technology DS-7708NI-I4, 8 channels, 3840 x 2160 pixels, 3840 x 2160, 3840 x 2160, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768, 1280x720@60fps,1920x1080@60fps, H.264,H.264+,H.265,H.265+,MPEG4, NTSC,PAL

Specifications

Performance


  • Video input channels: 8 channels
  • Alarm input channels: 16
  • Alarm output channels: 4
  • Maximum resolution: 3840 x 2160 pixels
  • Supported resolutions: 3840 x 2160, 3840 x 2160, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
  • Resolution at capture speed: 1280x720@60fps,1920x1080@60fps
  • Video motion detection: Yes
  • Video loss detection: Yes
  • Multi-screen: Yes
  • Video formats supported: H.264,H.264+,H.265,H.265+,MPEG4
  • Analog signal format system: NTSC,PAL
  • Backup function: Yes
  • Split screen: Yes
  • PTZ control: Yes
  • Sequence mode: Yes
  • Playback controls: Yes
  • Throughput data rate: 80 Mbit/s
  • Maximum frame rate: 60 fps
  • Recording modes: Continuous,Event,Holiday,Manual,Schedule
  • Display modes: Live view, Playback, Split screen

Storage


  • Number of HDDs supported: 4
  • Maximum storage capacity: 6 TB
  • HDD interface: Serial ATA
  • RAID support: Yes
  • Card reader integrated: No
  • Built-in optical drive: No

Ports & interfaces


  • Ethernet LAN (RJ-45) ports: 2
  • Power over Ethernet (PoE): No
  • Ethernet LAN data rates: 10,100,1000 Mbit/s
  • HDMI output: Yes
  • HDMI ports quantity: 1
  • VGA (D-Sub) output ports: 1
  • USB 2.0 ports quantity: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
  • Audio RCA inputs: 1
  • Audio RCA outputs: 1
  • eSATA ports quantity: 1
  • RS-485 ports: 1
  • RS-232 interface: Yes
  • RS-232 ports: 1

Features


  • Rack mounting: Yes
  • Rack capacity: 1.5U
  • On/off switch: Yes
  • Product colour: Black

Display


  • Built-in display: No

Power


  • Power consumption (max): 20 W
  • AC input voltage: 100 - 240 V

Operational conditions


  • Operating temperature (T-T): -10 - 55 °C
  • Operating relative humidity (H-H): 10 - 90%

Weight & dimensions


  • Width: 445 mm
  • Depth: 390 mm
  • Height: 70 mm
  • Weight: 5 kg

Packaging content


  • Handheld remote control: Yes
