Description

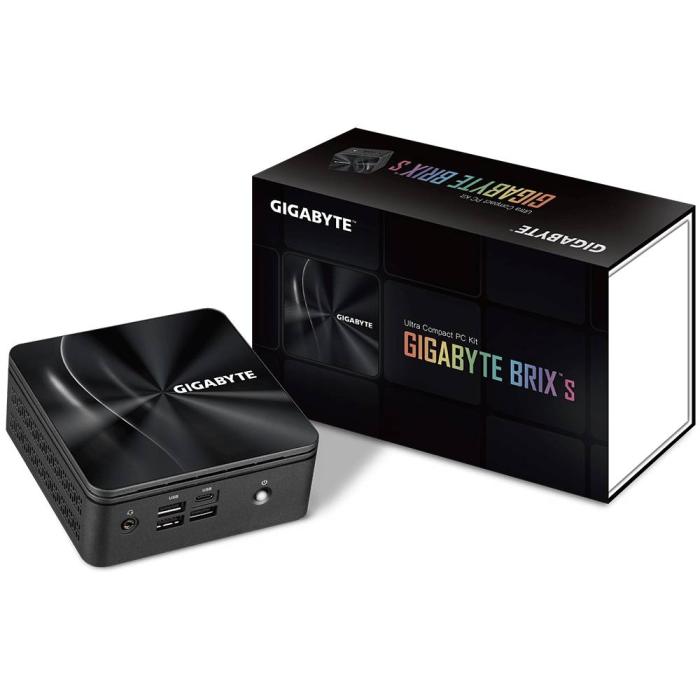

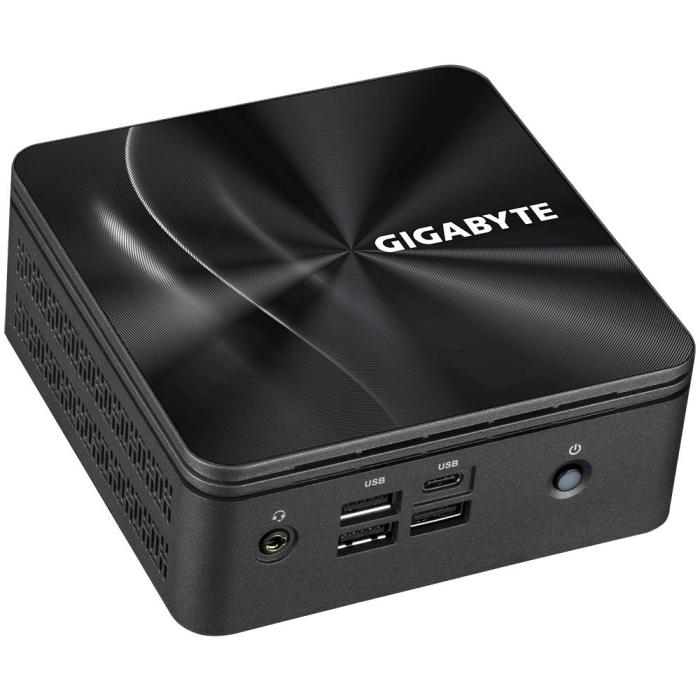

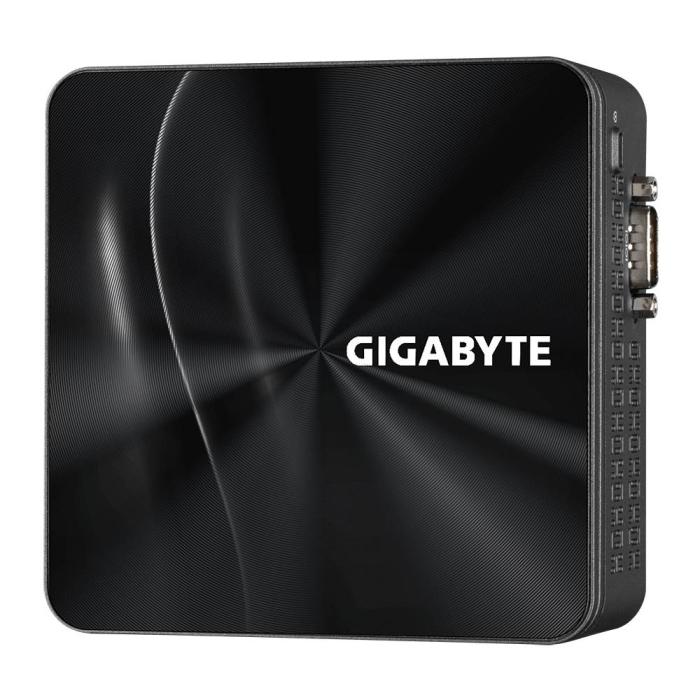

The GIGABYTE GB-BRR5H-4500 is a black UCFF barebone measuring 119.5 x 46.8 x 119.5 mm that comes with an AMD Ryzen 5 4500U processor built in. This third-generation chip runs at a 2.3 GHz base frequency and can reach 4 GHz in turbo mode, with 4 cores and 11 MB of L3 cache on a 7 nm lithography. Memory supports up to 64 GB in two DDR4-SDRAM SO-DIMM slots at 3200 MHz, ready to build the system to measure. For storage it offers two compatible drives and an interface covering M.2, PCI Express and Serial ATA III, with support for 2.5-inch and M.2 drives. With this compact format you can build a lightweight workstation or a discreet desktop system by choosing the memory and drive yourself.
Specifications
Processor
- Processor manufacturer: AMD
- Processor family: AMD Ryzen™ 5
- Processor generation: 3rd Generation AMD Ryzen 5
- Processor model: 4500U
- Processor cores: 4
- Processor boost frequency: 4 GHz
- Processor frequency: 2.3 GHz
- Built-in processor: Yes
- Processor lithography: 7 nm
- L3 cache: 11 MB
Memory
- Memory slots type: SO-DIMM
- Number of memory slots: 2
- Maximum internal memory: 64 GB
- Supported memory clock speeds: 3200 MHz
- Supported memory types: DDR4-SDRAM
Storage
- Supported storage drive types: HDD & SSD
- Storage drive sizes supported: 2.5, M.2
- SSD form factor: 2.5"
- Storage drive interface: M.2, PCI Express, Serial ATA III
- Number of storage drives supported: 2
Graphics
- On-board graphics card: Yes
- Graphics card family: AMD
- On-board graphics card model: AMD Radeon Graphics
- Maximum resolution: 3840 x 2160 pixels
Display
- Touchscreen: No
Audio
- Built-in speaker(s): No
Network
- Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
- Wi-Fi standards: Wi-Fi 6 (802.11ax)
- WLAN controller model: Intel Wi-Fi 6 AX200
- Ethernet LAN: Yes
- Wi-Fi: Yes
- LAN controller: Realtek RTL8125
- Bluetooth: Yes
- Bluetooth version: 5.2

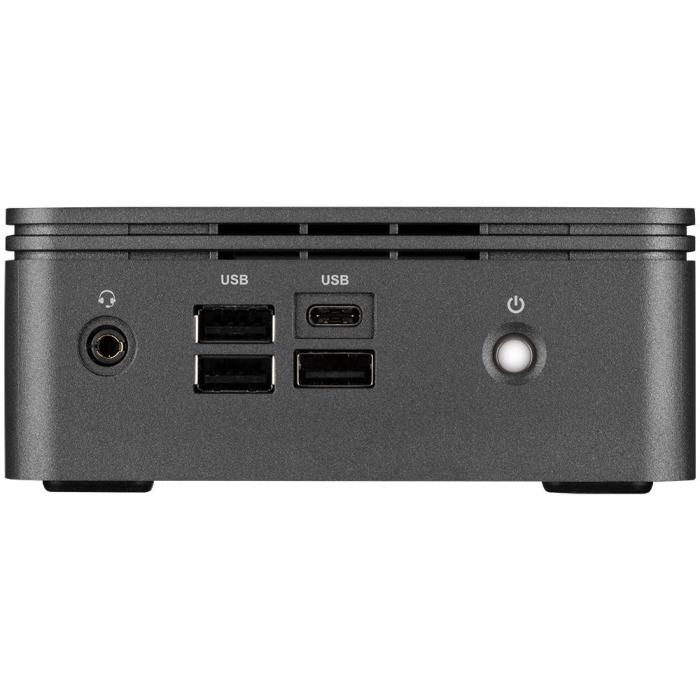

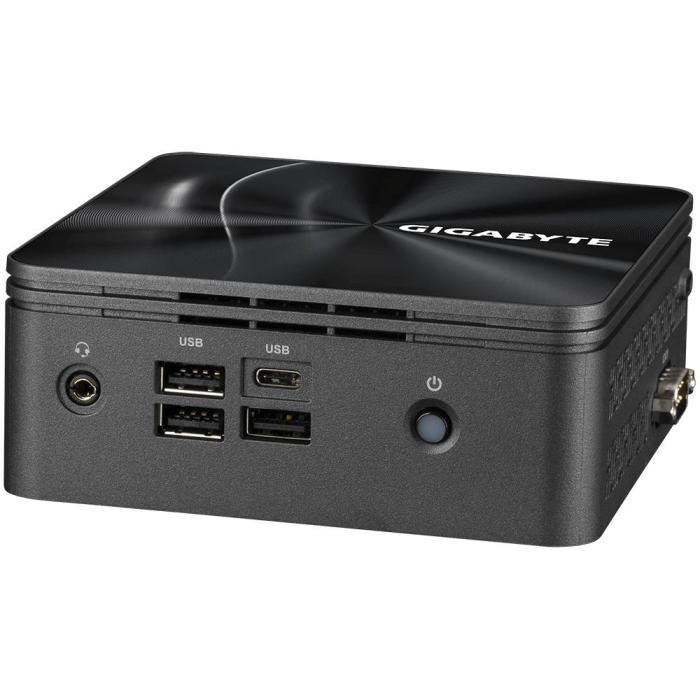

Ports & interfaces
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 5
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
- HDMI ports quantity: 1
- HDMI version: 2.0a
- Mini DisplayPorts quantity: 1
- Headphone outputs: 1
- Ethernet LAN (RJ-45) ports: 1

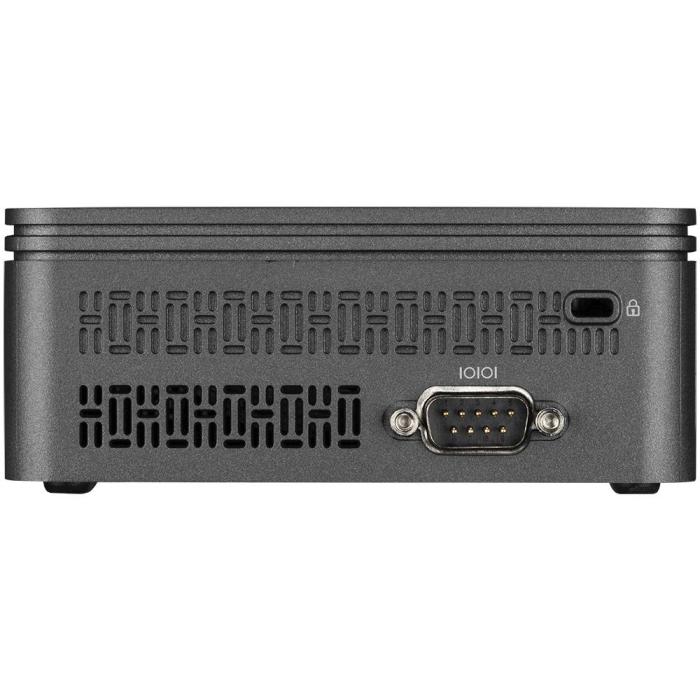

- COM ports quantity: 1
- DC-in jack: Yes
Expansion slots
- Number of M.2 (M) slots: 1
Design
- Chassis type: UCFF
- Product colour: Black
- On/off switch: Yes
- Cable lock slot: Yes
- Cable lock slot type: Kensington
- VESA mounting: Yes
- Panel mounting interface: 75 x 75,100 x 100 mm
- Product type: Mini PC barebone
Performance
- Number of processors supported: 1
- Audio chip: Realtek ALC255
Logistics data
- Harmonized System (HS) code: 84713000
Software
- Windows operating systems supported: Windows 10 x64
Power
- Power supply type: External AC adapter
- Power supply: 90 W
- AC input voltage: 100 - 240 V
Operational conditions
- Operating temperature (T-T): 0 - 35 °C
- Storage temperature (T-T): -20 - 60 °C
Weight & dimensions
- Width: 119.5 mm
- Depth: 119.5 mm
- Height: 46.8 mm
Packaging content
- Power cord included: Yes
- AC adapter included: Yes
- Quick start guide: Yes
