Description

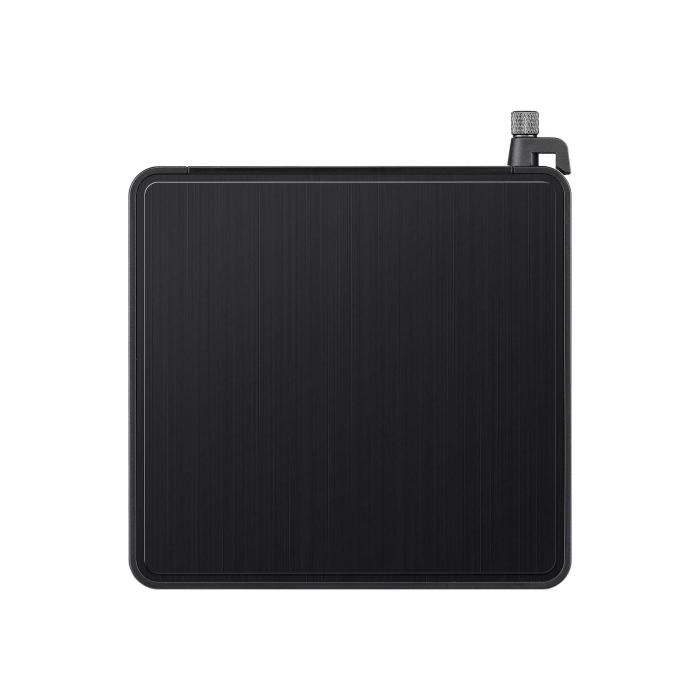

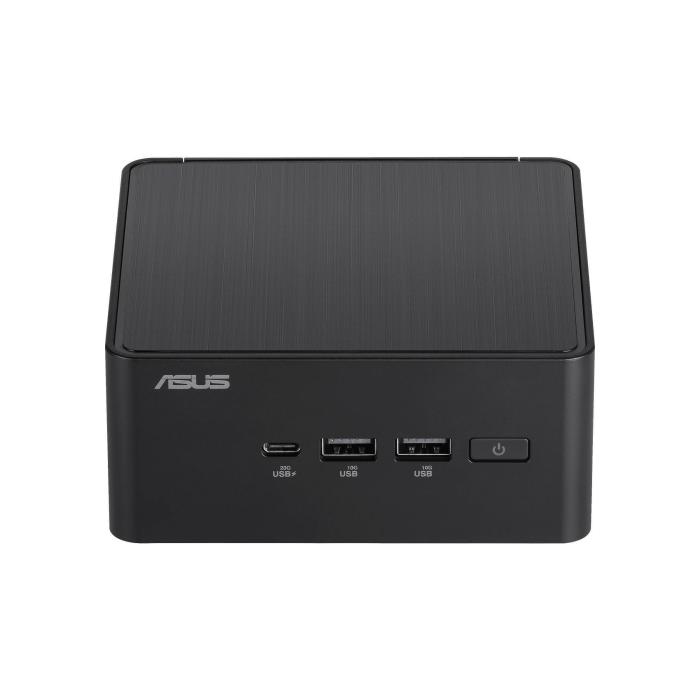

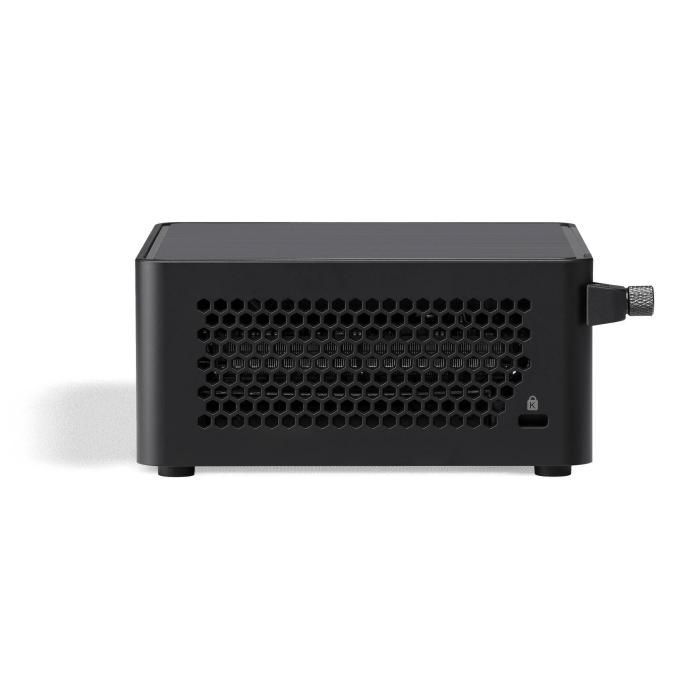

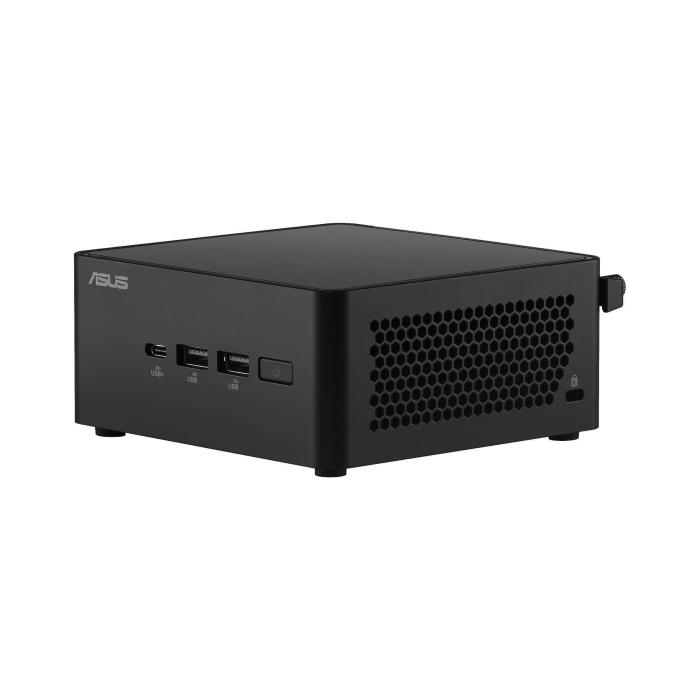

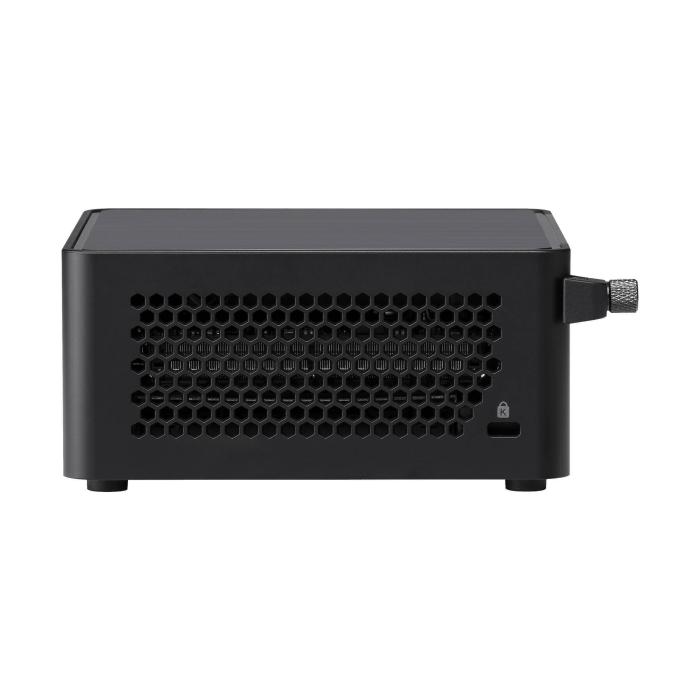

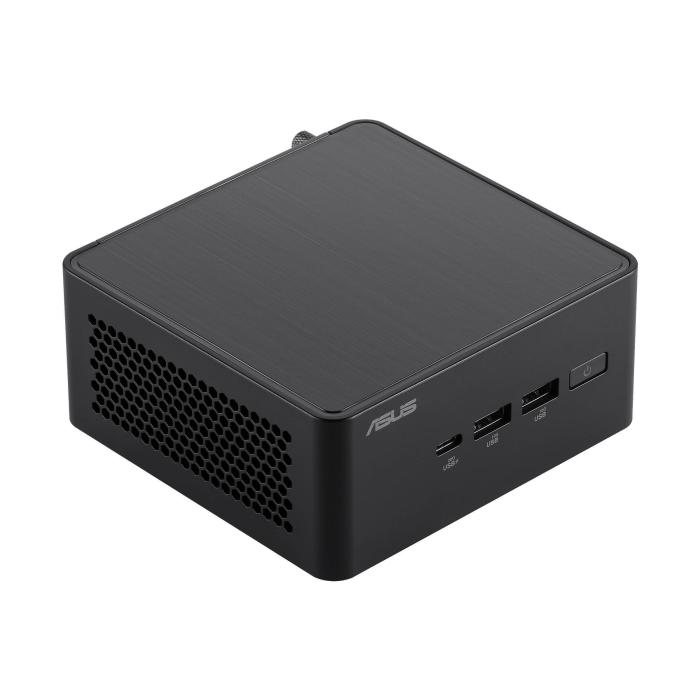

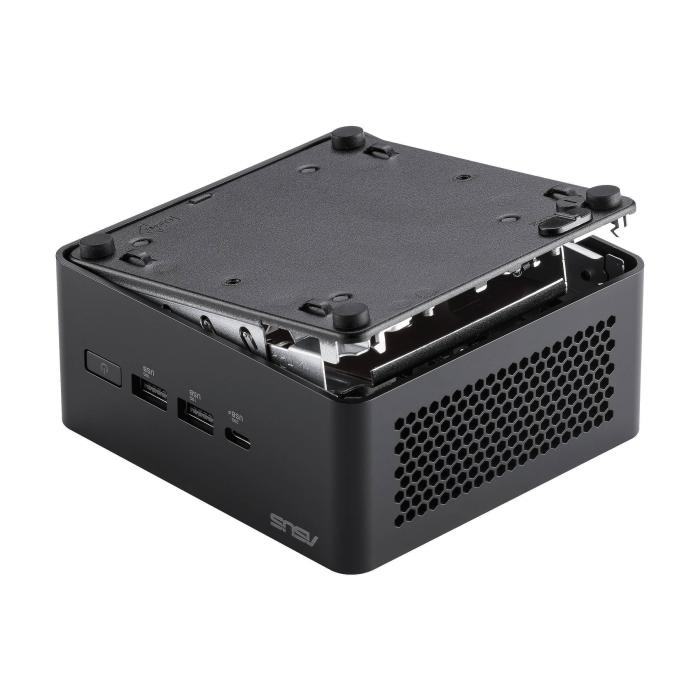

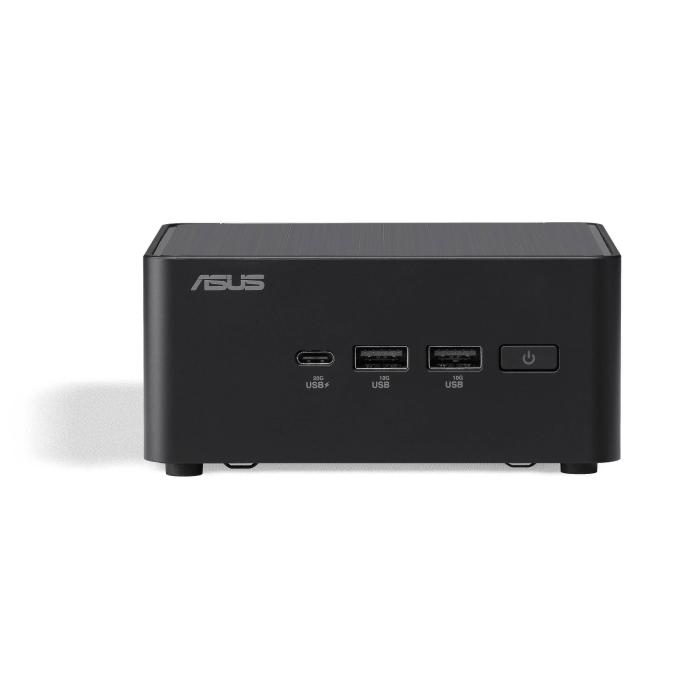

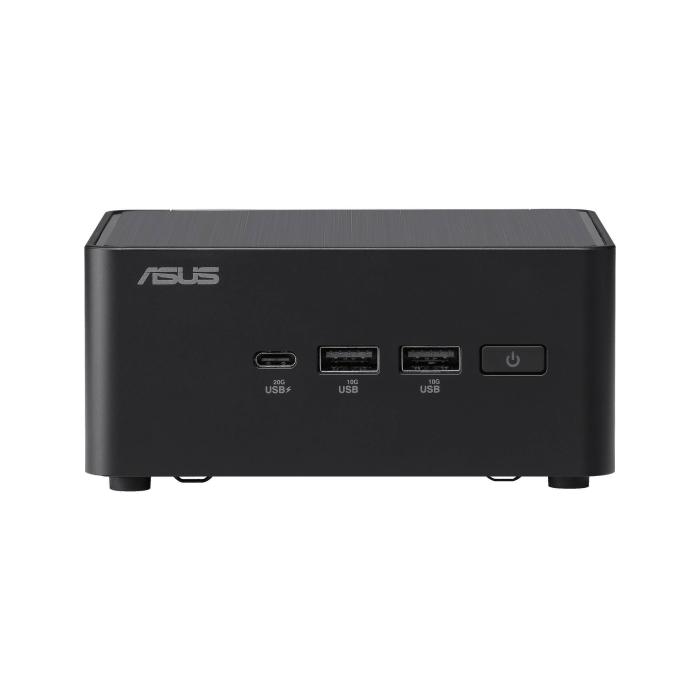

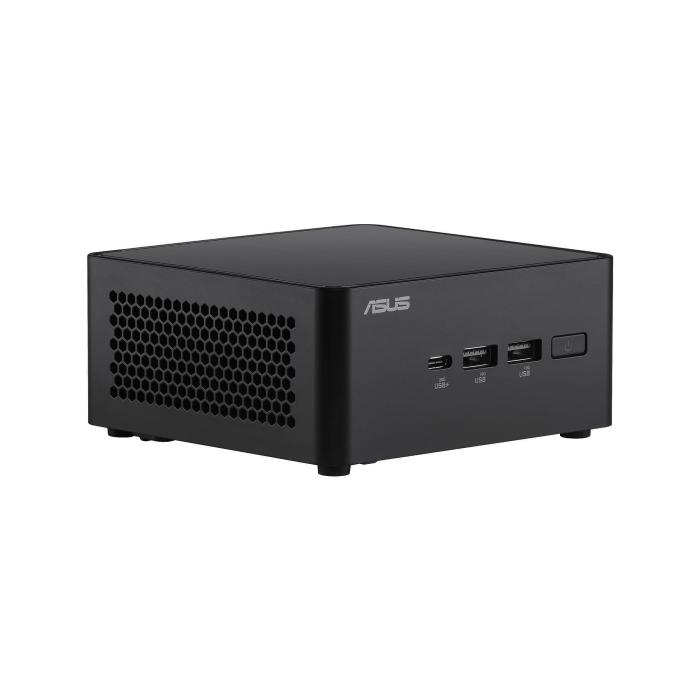

This ASUS NUC 14 Pro in UCFF form factor and black colour integrates the Intel Core 3 100U processor from series 1, with six cores and eight threads reaching up to 4.7 GHz in turbo mode. Its compact configuration is designed for work environments where space is limited, with a 15 W TDP that promotes efficient operation. It features two slots for DDR5-SDRAM memory in dual channel, supporting speeds of up to 5600 MHz, although it does not include modules pre-installed from the factory. This minimal-factor computer offers a solid foundation for building a custom system, leveraging the 10 MB cache and hybrid core architecture for everyday tasks and light productivity.
Specifications
Processor
- Processor manufacturer: Intel
- Processor family: Intel Core 3
- Processor generation: Intel Core (Series 1)
- Processor model: 100U
- Processor cores: 6
- Processor threads: 8
- Performance cores: 2
- Efficient cores: 4
- Built-in processor: Yes
- Performance-core boost frequency: 4.7 GHz
- Efficient-core boost frequency: 3.3 GHz
- Processor cache: 10 MB
- Thermal Design Power (TDP): 15 W
Memory
- Memory slots type: SO-DIMM
- Number of memory slots: 2
- Maximum internal memory: 96 GB
- Supported memory clock speeds: 5600 MHz
- Supported memory types: DDR5-SDRAM
- Memory channels: Dual-channel
- Internal memory installed: No
Storage
- Supported storage drive types: SSD
- Storage drives installed: No
- Storage drive sizes supported: 2.5, M.2
- Storage drive interface: PCI Express, Serial ATA III
- NVMe: Yes
Graphics
- On-board graphics card: Yes
- Graphics card family: Intel
- On-board graphics card model: Intel Graphics
Audio
- Built-in speaker(s): No
Network
- Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
- WLAN controller model: Intel Wi-Fi 6E AX211
- Ethernet LAN: Yes
- Wi-Fi: Yes
- Bluetooth: Yes
- Bluetooth version: 5.3

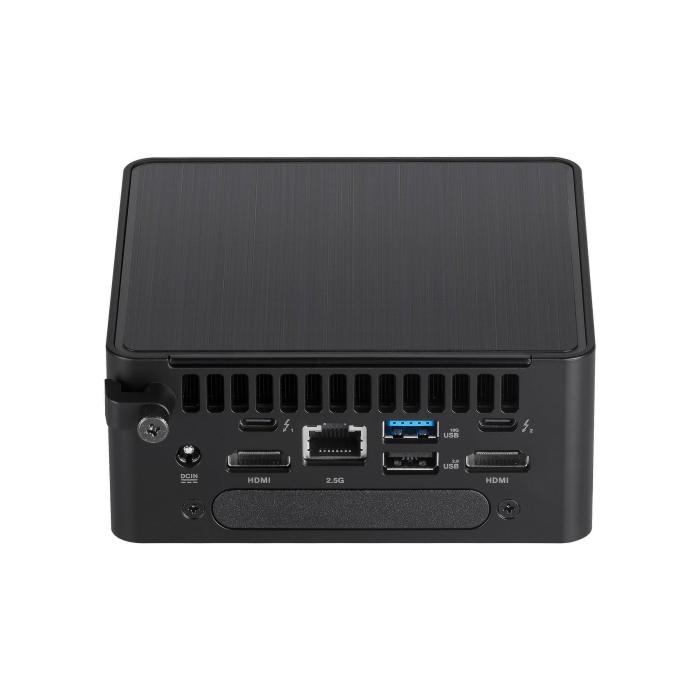

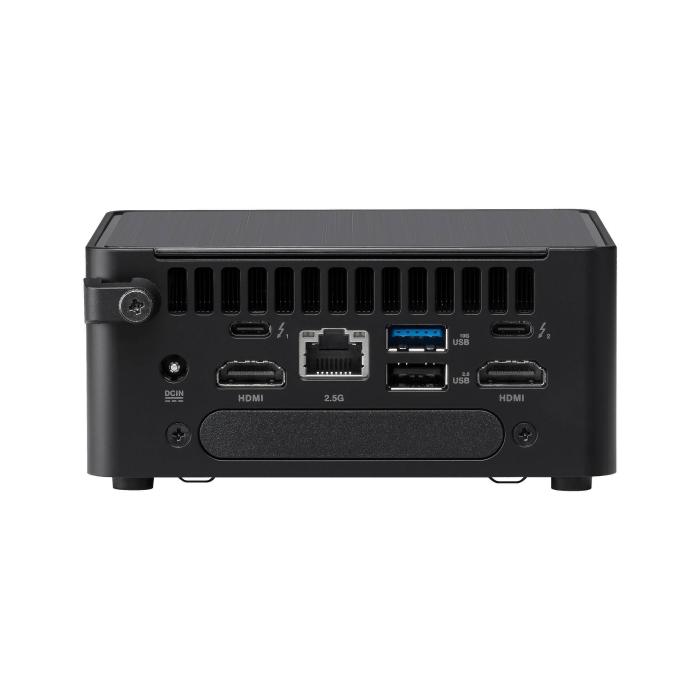

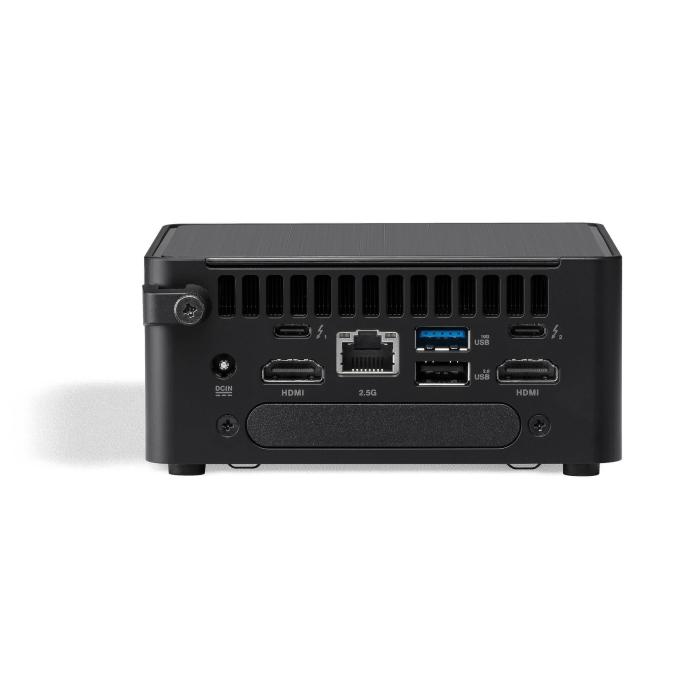

Ports & interfaces
- USB 2.0 ports quantity: 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- USB4 Gen 2x2 ports quantity: 1
- HDMI ports quantity: 2
- HDMI version: 2.1
- Ethernet LAN (RJ-45) ports: 1
- Thunderbolt 4 ports quantity: 2
- DC-in jack: Yes
Design
- Chassis type: UCFF
- Product colour: Black
- Cooling type: Active
- Cable lock slot: Yes
- Cable lock slot type: Kensington
- VESA mounting: Yes
- Product type: Mini PC barebone
Performance
- Number of processors supported: 1
Software
- Windows operating systems supported: Windows 11
Power
- Power supply type: External AC adapter
- Power supply: 90 W
Weight & dimensions
- Width: 144 mm
- Depth: 112 mm
- Height: 41 mm
- Weight: 570 g
Packaging content
- Power cord included: Yes
- Quick start guide: Yes
