  • GIGABYTE B550M DS3H AC Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 5+3 Phases Pure Digital VRM, up to 4733MHz DDR4 (OC), 2xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen1
Return

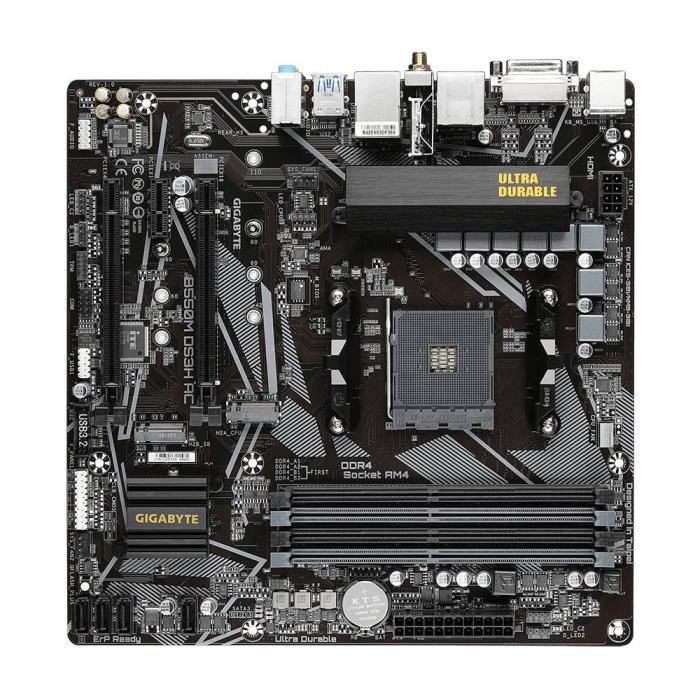

Product 1 image

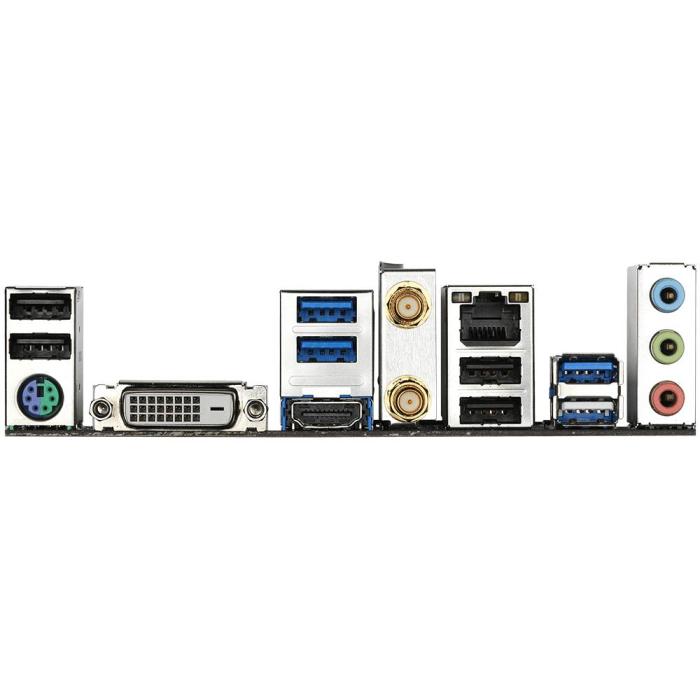

Product 2 image

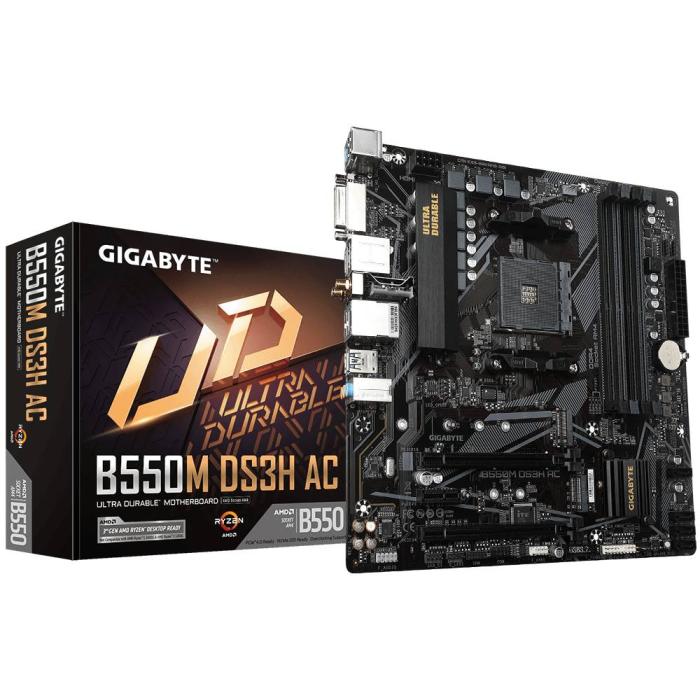

Product 3 image

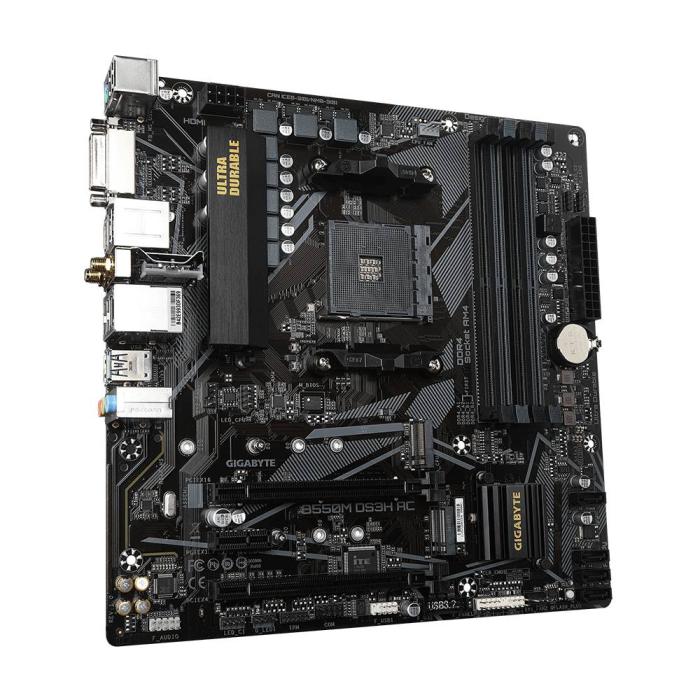

Product 4 image

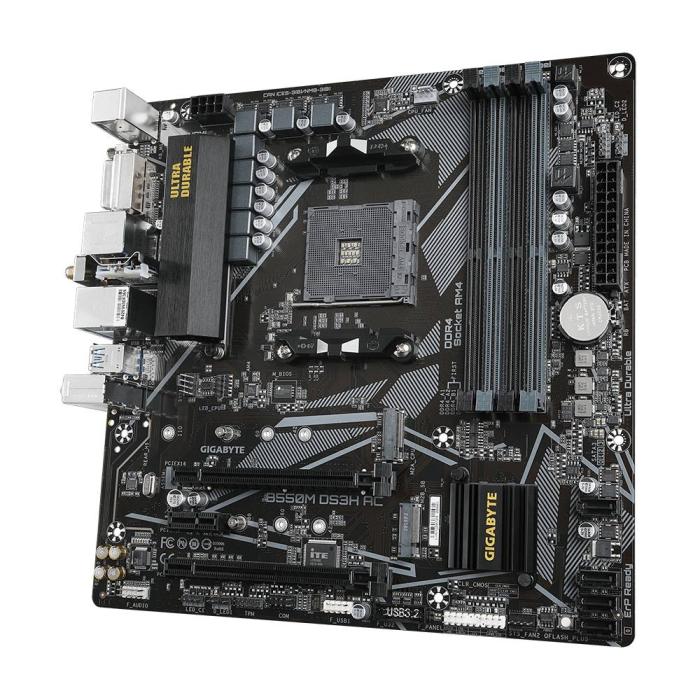

Product 5 image

GIGABYTE B550M DS3H AC Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 5+3 Phases Pure Digital VRM, up to 4733MHz DDR4 (OC), 2xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen1

121.00 €
100.00 € without VAT

More info

Brand: GIGABYTE
SKU: 99384 PRC: 431727 EAN: 4719331810962 PN: GA-B550M-DS3H-AC

Description

m-ATX, AM4, AMD B550, 4 x DDR4 DIMM max 128 GB, DVI-D, DisplayPort, HDMI 2.1, 1 Gbps LAN, WIFI 802.11a,b g,n,ac, BT 4.2, PCIe 3.0 x16, PCIe 3.0 x1

Specifications

Processor

  • Processor manufacturer: AMD
  • Processor socket: Socket AM4
  • Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series
  • Supported processor sockets: Socket AM4
  • Maximum internal memory supported by processor: 128 GB

Memory

  • Supported memory types: DDR4-SDRAM
  • Number of memory slots: 4
  • Memory slots type: DIMM
  • Memory channels: Dual-channel
  • ECC сompatibility: ECC & Non-ECC
  • Supported memory clock speeds: 2133, 2400, 2667, 2933, 3200, 3333, 3600, 4000, 4400, 4600, 4733 MHz
  • Supported memory clock speed (max): 4733 MHz
  • Maximum internal memory: 128 GB
  • Supported memory module capacities: 4GB, 8GB, 16GB, 32GB
  • Unbuffered memory: Yes

Storage controllers

  • Supported storage drive types: HDD & SSD
  • Supported storage drive interfaces: M.2, SATA III
  • Number of HDDs supported: 4
  • Number of storage drives supported: 6
  • RAID support: Yes
  • RAID levels: 0, 1, 10

Graphics

  • Parallel processing technology support: Not supported
  • On-board graphics card: No
  • Maximum resolution: 4096 x 2160 pixels
  • HDCP: Yes
  • DirectX version: 12.0

Internal I/O

  • Front panel audio connector: Yes
  • Front panel connector: Yes
  • ATX Power connector (24-pin): Yes
  • Power fan connector: Yes
  • CPU fan connector: Yes
  • EPS power connector (8-pin): Yes
  • TPM connector: Yes
  • Parallel connector: Yes
  • 12V power connector: Yes
  • USB 2.0 connectors: 1
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
  • Number of SATA III connectors: 4
  • Total number of SATA connectors: 4
  • Number of Parallel ATA connectors: 1
  • Audio connector: Yes

Rear panel I/O ports

  • USB 2.0 ports quantity: 4
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
  • Ethernet LAN (RJ-45) ports: 1
  • PS/2 ports quantity: 1
  • HDMI ports quantity: 1
  • HDMI version: 2.1
  • DVI-D ports quantity: 1
  • DisplayPorts quantity: 1
  • DisplayPort version: 1.4
  • Headphone outputs: 1
  • Microphone in: Yes
  • Digital audio optical out: 3
  • USB connector type: USB Type-A

Network

  • Ethernet LAN: Yes
  • Ethernet interface type: Gigabit Ethernet
  • Wi-Fi: Yes
  • Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
  • Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
  • WLAN controller model: Realtek RTL8822CE
  • Bluetooth: Yes
  • Bluetooth version: 4.2

Features

  • Motherboard chipset: AMD B550
  • Audio output channels: 7.1 channels
  • Product colour: Brown
  • PC health monitoring: CPU, Fan, Temperature, Voltage
  • Component for: PC
  • Motherboard form factor: micro ATX
  • Motherboard chipset family: AMD
  • Cooling type: Passive
  • Power source type: ATX
  • Windows operating systems supported: Windows 10 x64, Windows 11 x64
  • Compatible operating systems: Windows 10 64-bit

Expansion slots

  • PCI Express x1 slots: 1
  • PCI Express x1 (Gen 3.x) slots: 1
  • PCI Express x4 slots: 1
  • PCI Express x16 slots: 1
  • PCI Express x16 (Gen 4.x) slots: 1
  • Number of M.2 (M) slots: 2

BIOS

  • BIOS type: UEFI AMI
  • BIOS memory size: 128 Mbit
  • ACPI version: 5.0
  • Clear CMOS jumper: Yes
  • Desktop Management Interface (DMI) version: 2.7
  • System management BIOS (SMBIOS) version: 2.7

Logistics data

  • Country of origin: China
  • Products per shipping (inner) case: 1 pc(s)

Battery

  • Battery weight: 3 g
  • Lithium weight per battery: 0.07 g
  • Number of battery cells: 1
  • Battery technology: Lithium-Manganese Dioxide (LiMnO2)
  • Battery type: CR2032

Packaging data

  • Package width: 270 mm
  • Package depth: 268 mm
  • Package height: 68 mm
  • Package weight: 1.09 kg

Weight & dimensions

  • Width: 244 mm
  • Depth: 244 mm
  • Height: 35 mm

Packaging content

  • Batteries included: Yes
  • Bundled software: Norton® Internet Security LAN bandwidth management software

Technical details

  • Warranty period: 3 year(s)
