Description

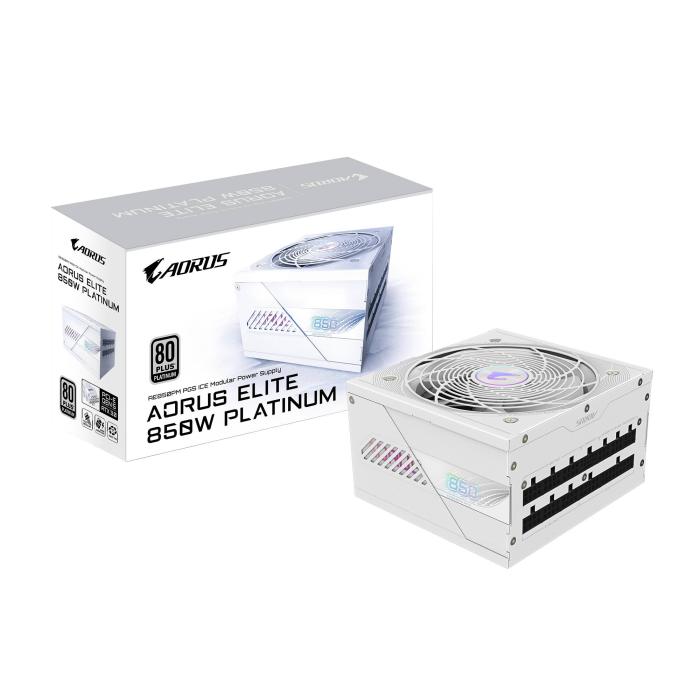

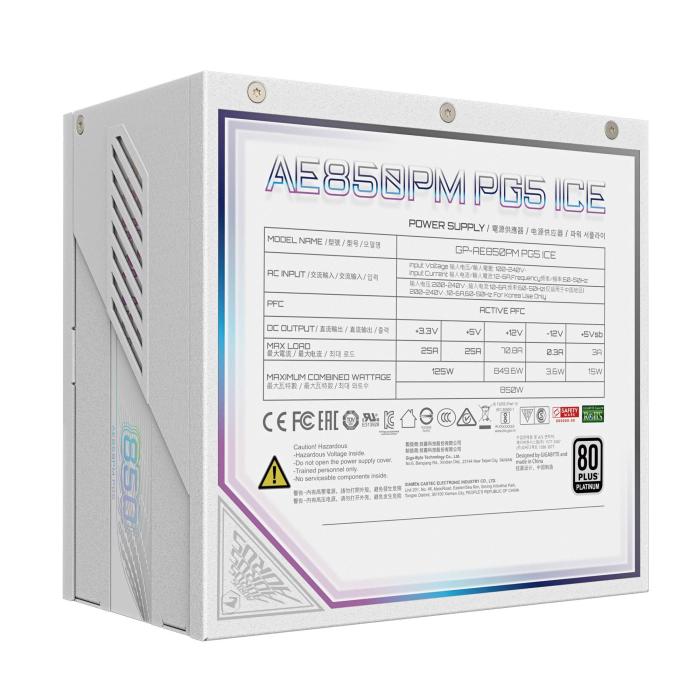

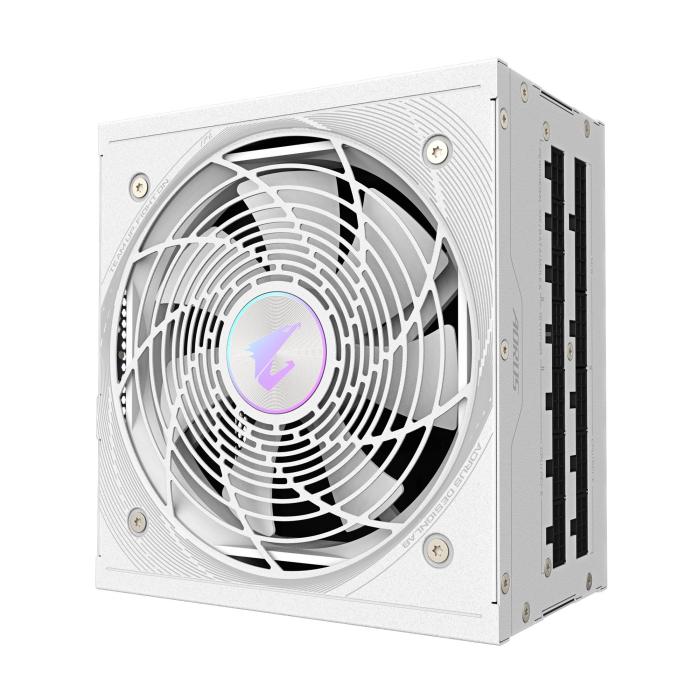

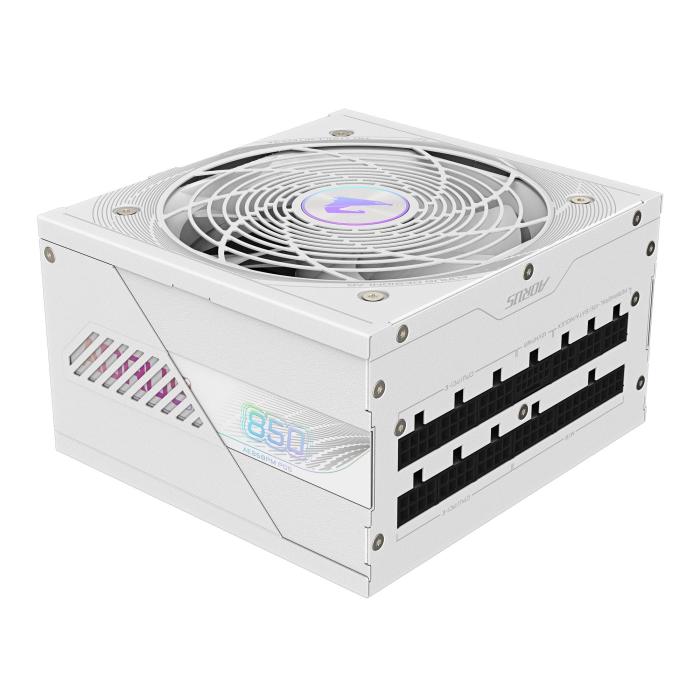

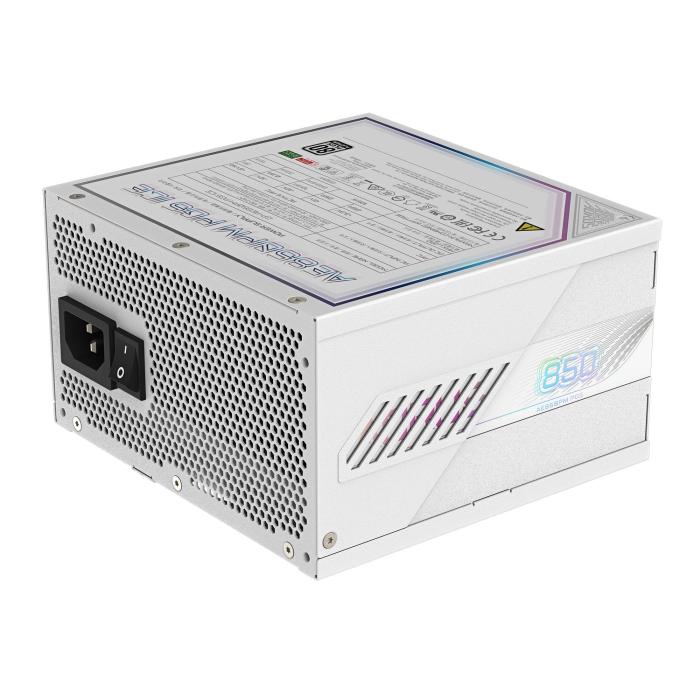

GIGABYTE AORUS ELITE P850W ICE Power Supply with white finish and 850 W capacity, designed for ATX 3.0 builds with PCIe 5.0 connector. Delivers 849.6 W combined on the +12 V rail with a maximum current of 70.8 A, achieving 90% efficiency certified 80 PLUS Platinum. Features a 120 mm fan, fully modular topology, active PFC, and protections against overcurrent, overvoltage, overvoltage, overheating, short circuit, and undervoltage. Accepts AC input from 100 to 240 V with a frequency of 50/60 Hz, includes a Power Good signal delay margin of 100 to 150 ms and a hold-up time of 16 ms.
Specifications
Power
- Total power: 850 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 12 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 125 W
- Combined power (+12V): 849.6 W
- Combined power (+5V): 125 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 25 A
- Max output current (+12V): 70.8 A
- Max output current (+5V): 25 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Hold time: 16 ms
- Efficiency: 90%
- Power Good signal delay range: 100 - 150 ms
- Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces

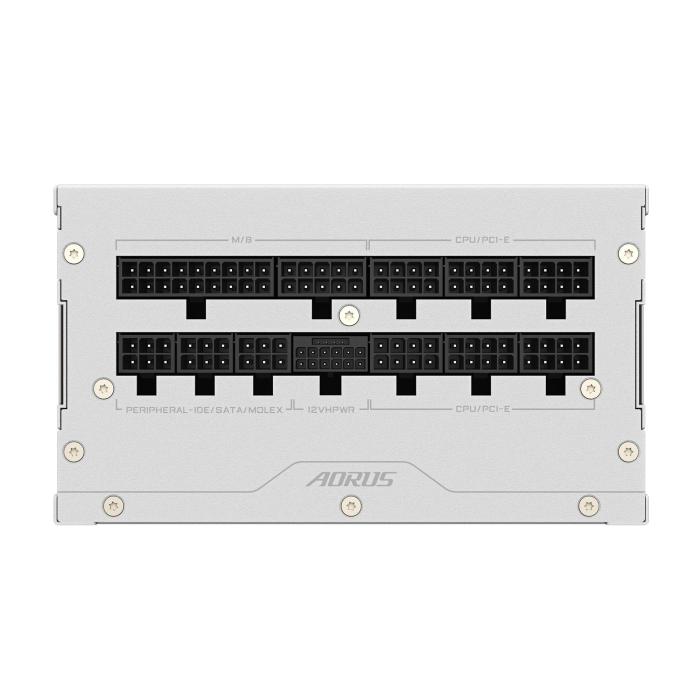

- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 65 cm
- Number of SATA power connectors: 8
- Peripheral (Molex) power connectors (4-pin): 4
- PCI Express power connectors (6+2 pin): 6
- CPU power connector (4+4 pin): Yes
- ATX power connector (20+4 pin): Yes
- Floppy drive power connector: 2
- Floppy disk drive connector: Yes
- PCI Express connector: Yes
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Platinum
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.1
- Bearing technology: Ball bearing
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: White
- Cooling type: Active

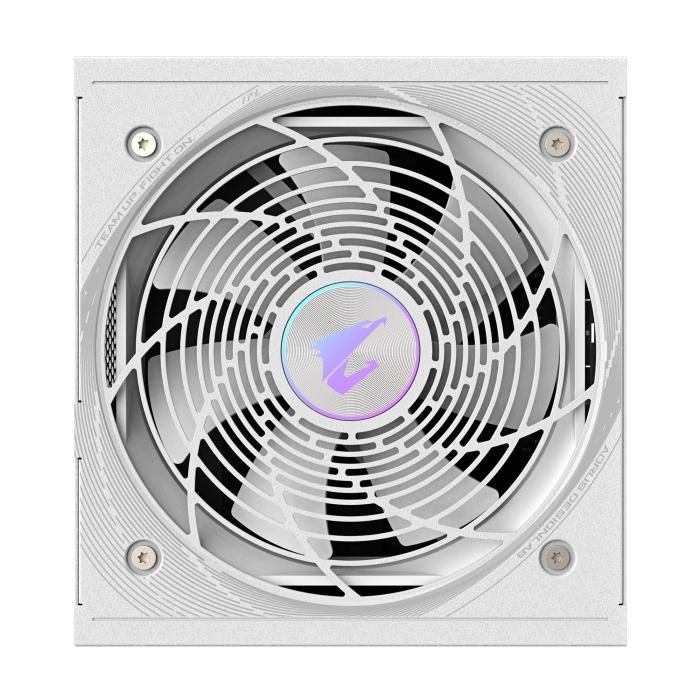

- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- Fan location: Top
- On/off switch: Yes
Weight & dimensions
- Width: 150 mm
- Depth: 140 mm
- Height: 86 mm
- Weight: 2.68 kg
Packaging data
- Package width: 340 mm
- Package depth: 206 mm
- Package height: 120 mm
- Package weight: 3.31 kg
- Package type: Box
Logistics data
- Warranty period: 10 year(s)
