Description

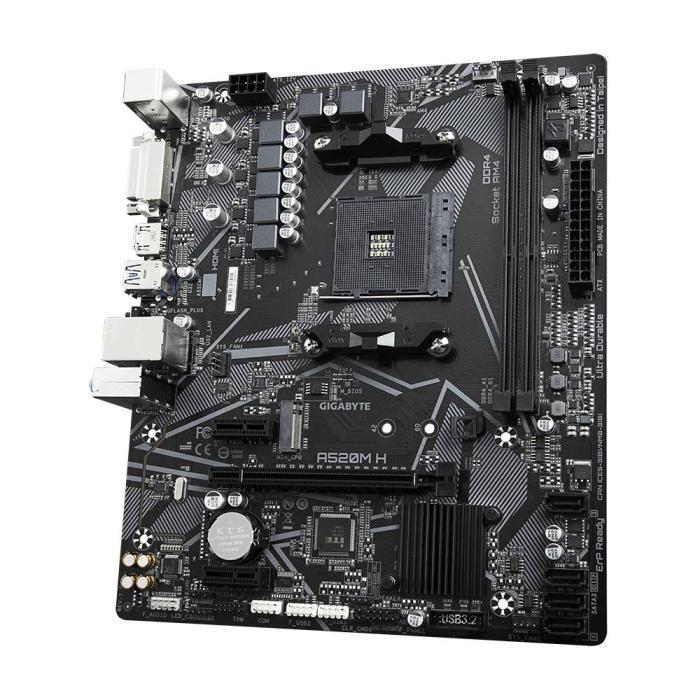

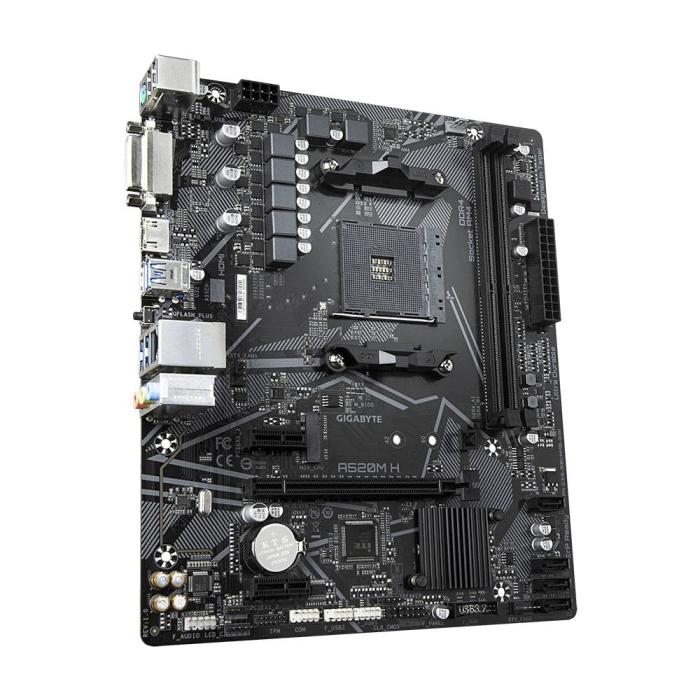

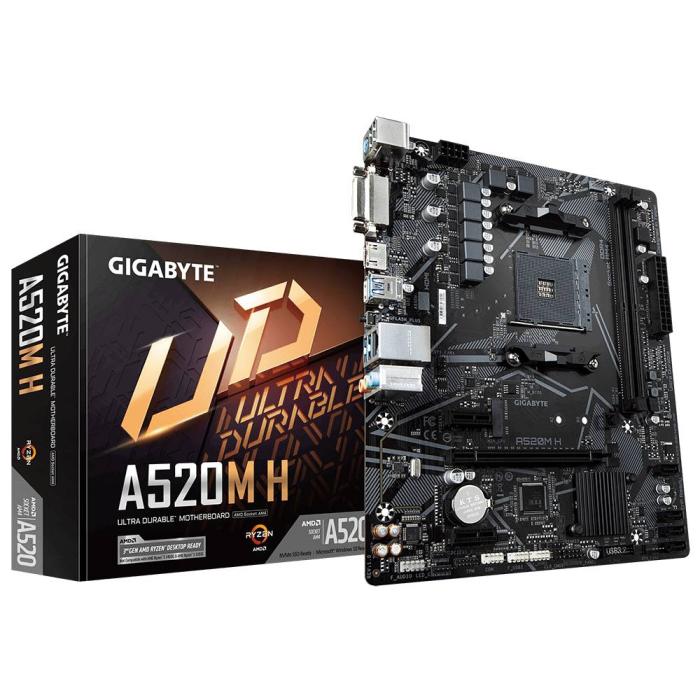

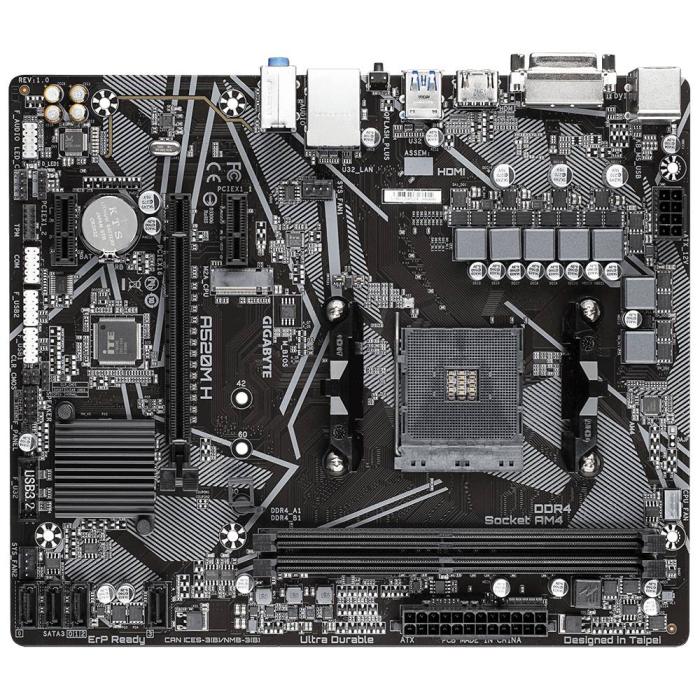

GIGABYTE A520M H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1, AMD, Socket AM4, AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series, Socket AM4, 64 GB, DDR4-SDRAM
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM4
- Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series
- Maximum number of SMP processors: 1
- Supported processor sockets: Socket AM4
- Maximum internal memory supported by processor: 64 GB
Memory
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 2
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Supported memory clock speeds: 2133, 2400, 2667, 2933, 3200, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4600, 4800, 5100 MHz
- Supported memory clock speed (max): 5100 MHz
- Maximum internal memory: 64 GB
- Supported memory module capacities: 1GB, 8GB, 16GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III
- Number of HDDs supported: 4
- Number of storage drives supported: 5
- RAID support: Yes
- RAID levels: 0, 1, 10
Graphics
- Parallel processing technology support: Not supported
- Maximum resolution: 4096 x 2160 pixels
- HDCP: Yes
- Discrete graphics support: Yes
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Number of SATA III connectors: 4
- Total number of SATA connectors: 4
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- Number of EATX power connectors: 1
- Power fan connector: Yes
- CPU fan connector: Yes
- Chassis intrusion connector: Yes
- EPS power connector (8-pin): Yes
- TPM connector: Yes
- Serial port headers: 1
- 12V power connector: Yes
- RGB LED pin header: Yes

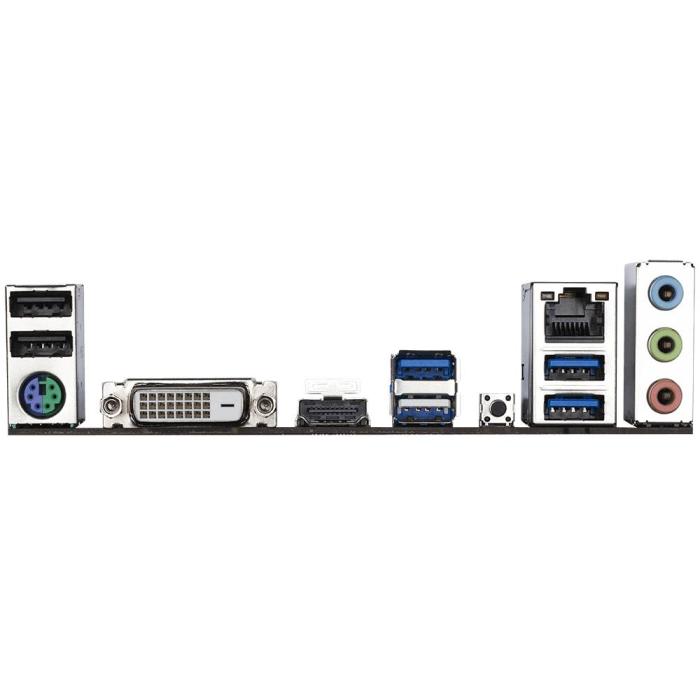

Rear panel I/O ports
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- Ethernet LAN (RJ-45) ports: 1
- PS/2 ports quantity: 1
- HDMI ports quantity: 1
- HDMI version: 2.1
- DVI-D ports quantity: 1
- Headphone outputs: 1
- Microphone in: Yes
- USB connector type: USB Type-A
Network
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- Wi-Fi: No
Features
- Motherboard chipset: AMD A520
- Audio chip: Realtek ALC887
- Audio output channels: 7.1 channels
- Product colour: Black
- PC health monitoring: CPU, Fan, LED, Power supply, Temperature, Voltage
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: AMD
- Cooling type: Active
- Power source type: ATX
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
Expansion slots
- PCI Express x1 (Gen 3.x) slots: 2
- PCI Express x16 (Gen 3.x) slots: 1
- Number of M.2 (M) slots: 1
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 128 Mbit
- ACPI version: 5.0
- Clear CMOS jumper: Yes
- Clear CMOS button: Yes
- Desktop Management Interface (DMI) version: 2.7
- System management BIOS (SMBIOS) version: 2.7
Logistics data
- Country of origin: China
- Products per shipping (inner) case: 1 pc(s)
Battery
- Battery weight: 3 g
- Lithium weight per battery: 0.07 g
- Number of battery cells: 1
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
Packaging data
- Package width: 265 mm
- Package depth: 235 mm
- Package height: 52 mm
- Package weight: 740 g
Weight & dimensions
- Width: 244 mm
- Depth: 205 mm
- Height: 35 mm
Packaging content
- Cables included: SATA
- Batteries included: Yes
- Bundled software: Norton® Internet Security (OEM version) Realtek® 8118 Gaming LAN Bandwidth Control Utility
Technical details
- Warranty period: 3 year(s)
