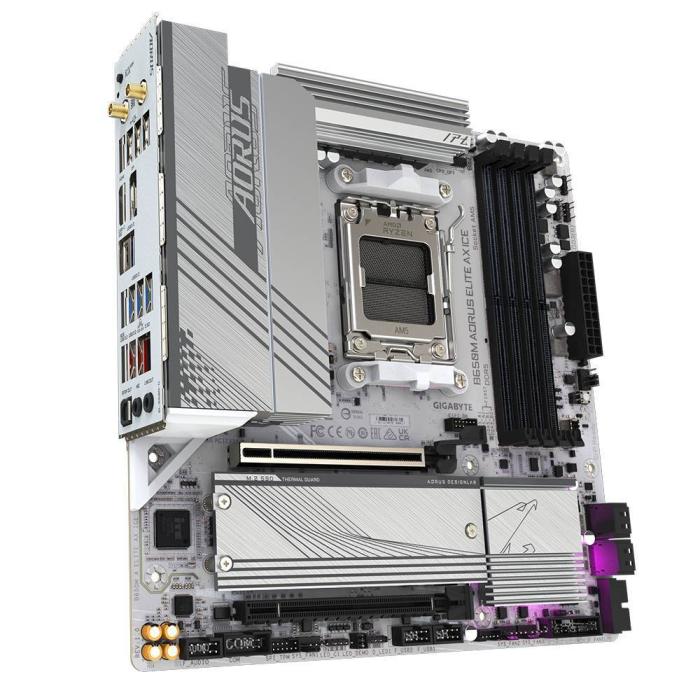

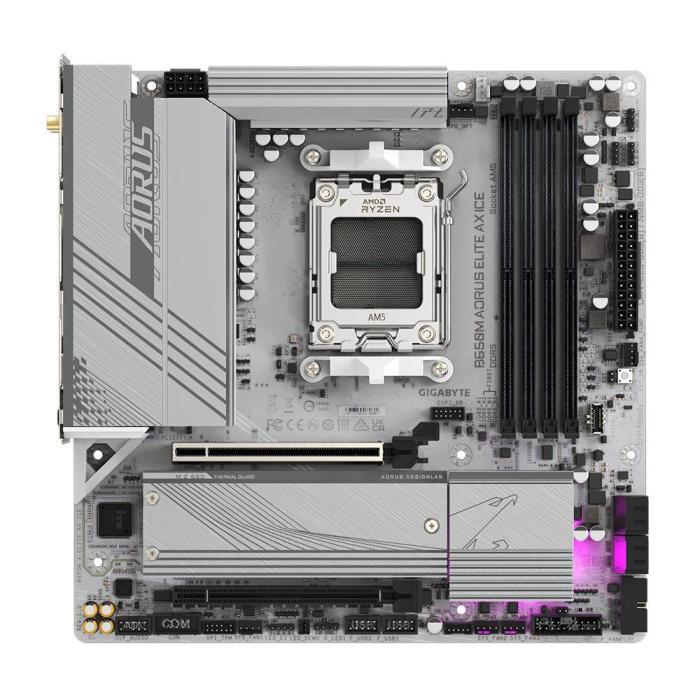

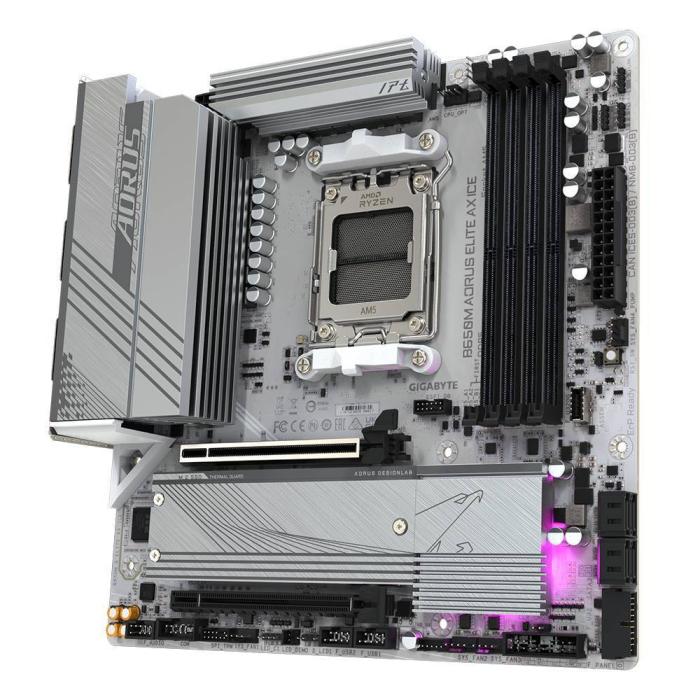

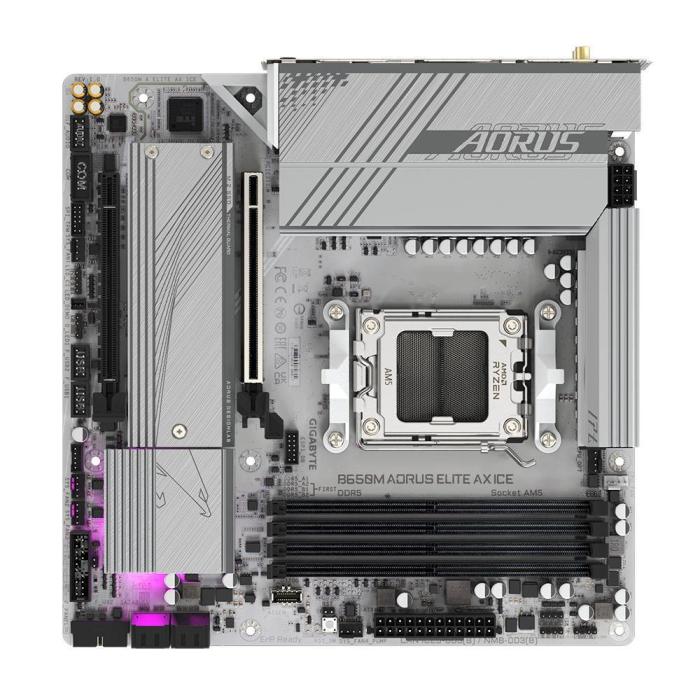

Name: GIGABYTE B650M AORUS ELITE AX ICE Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2x2
Brand: GIGABYTE
Availability: OutOfStock

GIGABYTE B650M AORUS ELITE AX ICE Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2x2

Not avaliable

GIGABYTE B650M AORUS ELITE AX ICE Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2x2. More info

Amount

Brand: GIGABYTE

SKU: 112592 PRC: 528015 EAN: 4719331859336 PN: B650M AORUS ELITE AX ICE

Description

B650M AORUS ELITE AX ICE Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2x2

Specifications

Processor

Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets: Socket AM5

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speeds: 4400, 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6666, 6800, 7000, 7200, 7600, 7800, 8000 MHz
Supported memory clock speed (max): 8000 MHz
Maximum internal memory: 256 GB
Unbuffered memory: Yes
Maximum internal memory per slot: 64 GB

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 6
RAID support: Yes
RAID levels: 0, 1, 10

Graphics

Parallel processing technology support: Not supported
Maximum resolution: 4096 x 2304 pixels
HDCP: Yes
DirectX version: 12.0
Discrete graphics support: Yes

Internal I/O

USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2x2 connectors: 1
Number of SATA III connectors: 4
Front panel audio connector: Yes
Front panel connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of CPU fan connectors: 2
Number of chassis fan connectors: 4
TPM connector: Yes
Serial port headers: 1
12V power connector: Yes
Number of water pump connectors: 2
RGB LED pin header: Yes
Number of RGB LED pin headers: 5

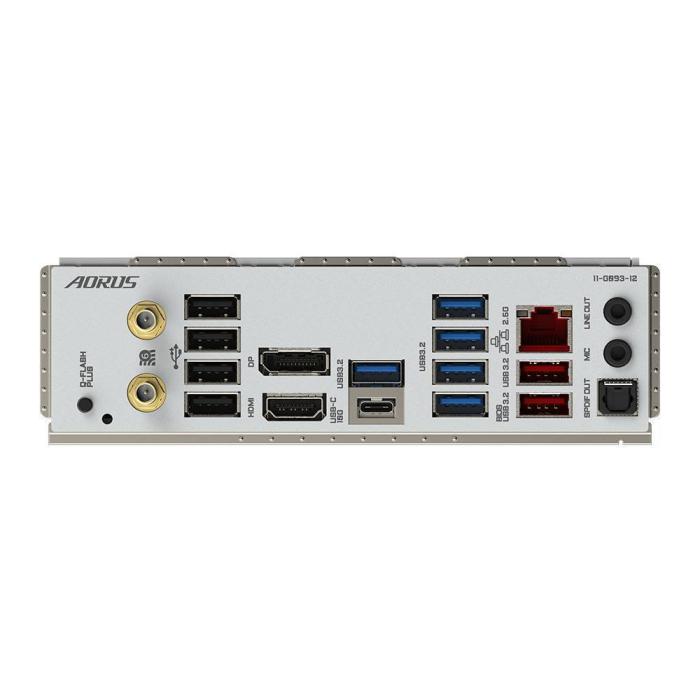

Rear panel I/O ports

USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 5
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 1.4
Headphone outputs: 1
Line-in: Yes
S/PDIF out port: Yes
Digital audio optical out: 1
WiFi-AP antenna jack: 2

Network

Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8125
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller model: Realtek RTL8852CE
Bluetooth: Yes
Bluetooth version: 5.3

Features

Motherboard chipset: AMD B650
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Product colour: White
PC health monitoring: Fan, Temperature, Voltage, Water cooling
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Power source type: ATX
Windows operating systems supported: Windows 10 x64, Windows 11 x64

Expansion slots

PCI Express x16 (Gen 4.x) slots: 2
Number of M.2 (M) slots: 2
1st M.2 largest key size: 25110
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 25110
2nd M.2 highest PCI Express generation: 4.0

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 5.0
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
System management BIOS (SMBIOS) version: 2.7

Logistics data

Country of origin: China
Products per shipping (inner) case: 1 pc(s)

Battery

Battery weight: 3 g
Lithium weight per battery: 0.07 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032

Packaging data

Package width: 270 mm
Package depth: 268 mm
Package height: 68 mm
Package weight: 1.89 kg

Weight & dimensions

Width: 244 mm
Depth: 244 mm
Height: 35 mm

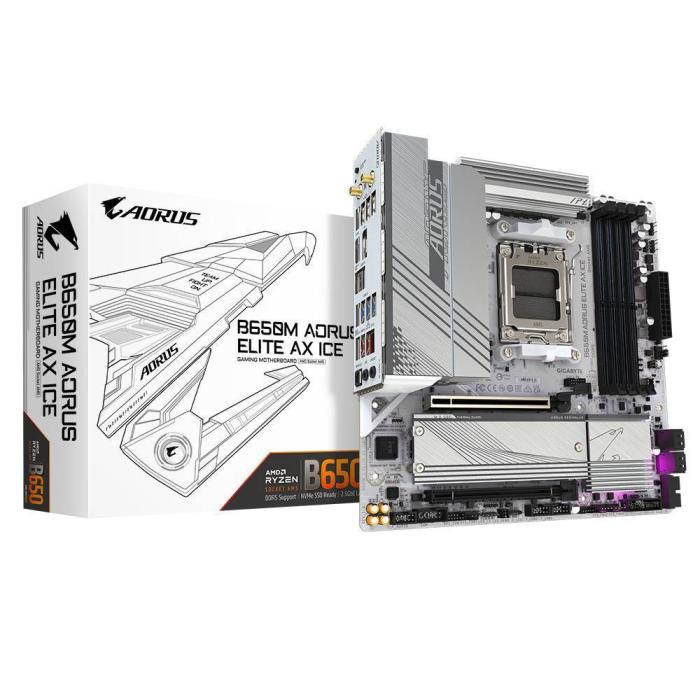

Packaging content

Batteries included: Yes
Antenna included: Yes
Screws included: Yes
Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software
