GIGABYTE A620M DS3H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7600MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1

$90.46
$90.46 without VAT

GIGABYTE A620M DS3H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7600MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1.   More info

Brand: GIGABYTE
SKU: 116105 PRC: 476418 EAN: 4719331855567 PN: A620M DS3H

Description

AMD A620, Socket AM5, 4 x DDR5, 6400 MT/s, 1 x DisplayPort, 1 x HDMI, 1 x D-Sub, 4 x SATA, Micro ATX

Specifications

Processor

  • Processor manufacturer: AMD
  • Processor socket: Socket AM5
  • Compatible processor series: AMD Ryzen 7000 Series
  • Supported processor sockets: Socket AM5
  • Maximum internal memory supported by processor: 192 GB

Memory

  • Supported memory types: DDR5-SDRAM
  • Number of memory slots: 4
  • Memory slots type: DIMM
  • Memory channels: Dual-channel
  • ECC сompatibility: Non-ECC
  • Supported memory clock speeds: 4800, 5200, 5600, 6000, 6200, 6400, 6800, 7000, 7200, 7600 MHz
  • Supported memory clock speed (max): 7600 MHz
  • Maximum internal memory: 192 GB
  • Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
  • Unbuffered memory: Yes

Storage controllers

  • Supported storage drive types: HDD & SSD
  • Supported storage drive interfaces: M.2, SATA III
  • Number of HDDs supported: 1
  • Number of storage drives supported: 4
  • RAID support: Yes
  • RAID levels: 0, 1, 10

Graphics

  • Parallel processing technology support: Not supported
  • Maximum resolution: 4096 x 2160 pixels
  • HDCP: Yes
  • DirectX version: 12.0

Internal I/O

  • USB 2.0 connectors: 1
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
  • Number of SATA III connectors: 4
  • Total number of SATA connectors: 4
  • Front panel audio connector: Yes
  • Front panel connector: Yes
  • ATX Power connector (24-pin): Yes
  • CPU fan connector: Yes
  • EPS power connector (8-pin): Yes
  • TPM connector: Yes
  • 12V power connector: Yes
  • RGB LED pin header: Yes

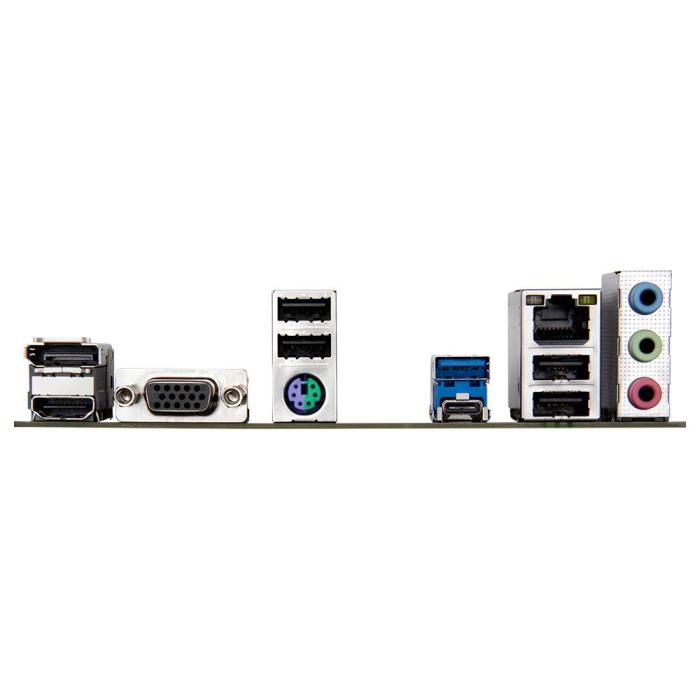

Rear panel I/O ports

  • USB 2.0 ports quantity: 4
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
  • Ethernet LAN (RJ-45) ports: 1
  • PS/2 ports quantity: 1
  • VGA (D-Sub) ports quantity: 1
  • HDMI ports quantity: 1
  • HDMI version: 2.1
  • DisplayPorts quantity: 1
  • DisplayPort version: 1.4
  • Headphone outputs: 3
  • Microphone in: Yes
  • USB connector type: USB Type-A, USB Type-C

Network

  • Ethernet LAN: Yes
  • Ethernet interface type: Gigabit Ethernet
  • Wi-Fi: No

Features

  • Motherboard chipset: AMD A620
  • Audio output channels: 7.1 channels
  • Product colour: Brown
  • PC health monitoring: Fan, Temperature, Voltage, Water cooling
  • Component for: PC
  • Motherboard form factor: micro ATX
  • Motherboard chipset family: AMD
  • Windows operating systems supported: Windows 10 x64, Windows 11 x64

Expansion slots

  • PCI Express x1 slots: 1
  • PCI Express x16 slots: 1
  • Number of M.2 (M) slots: 1

BIOS

  • BIOS type: UEFI AMI
  • BIOS memory size: 256 Mbit
  • ACPI version: 5.0
  • Clear CMOS jumper: Yes
  • Desktop Management Interface (DMI) version: 2.7
  • System management BIOS (SMBIOS) version: 2.7

Logistics data

  • Country of origin: China
  • Products per shipping (inner) case: 1 pc(s)

Battery

  • Battery weight: 3 g
  • Lithium weight per battery: 0.07 g
  • Number of battery cells: 1
  • Battery technology: Lithium-Manganese Dioxide (LiMnO2)
  • Battery type: CR2032

Packaging data

  • Package width: 265 mm
  • Package depth: 265 mm
  • Package height: 54 mm
  • Package weight: 1.07 kg

Weight & dimensions

  • Width: 244 mm
  • Depth: 244 mm
  • Height: 35 mm

Packaging content

  • Cables included: SATA
  • Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software

Technical details

  • Warranty period: 3 year(s)
