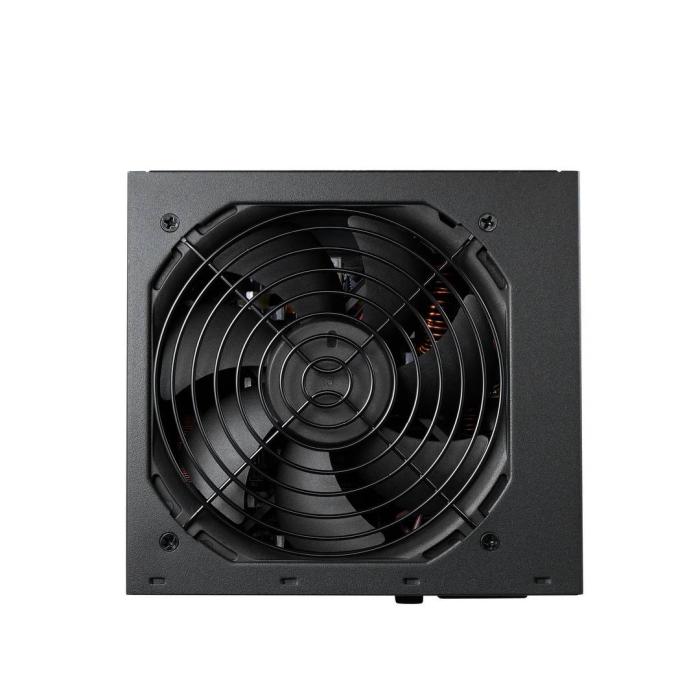

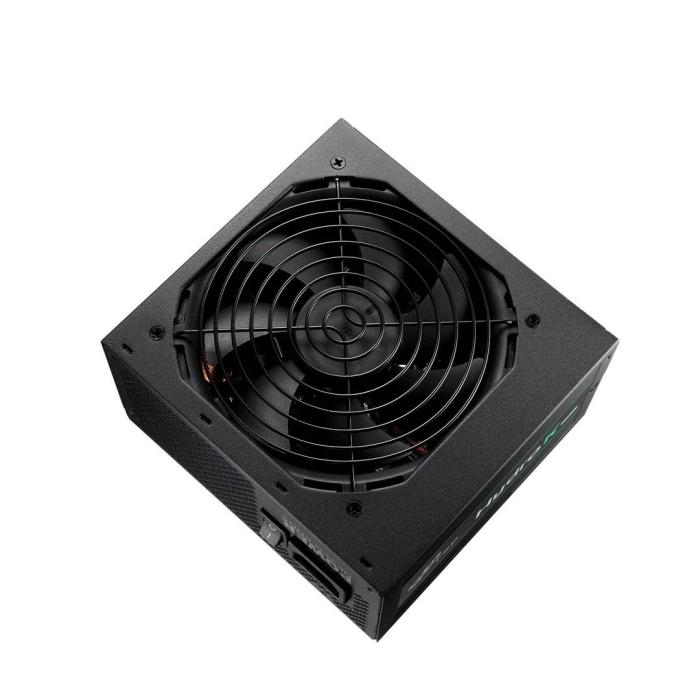

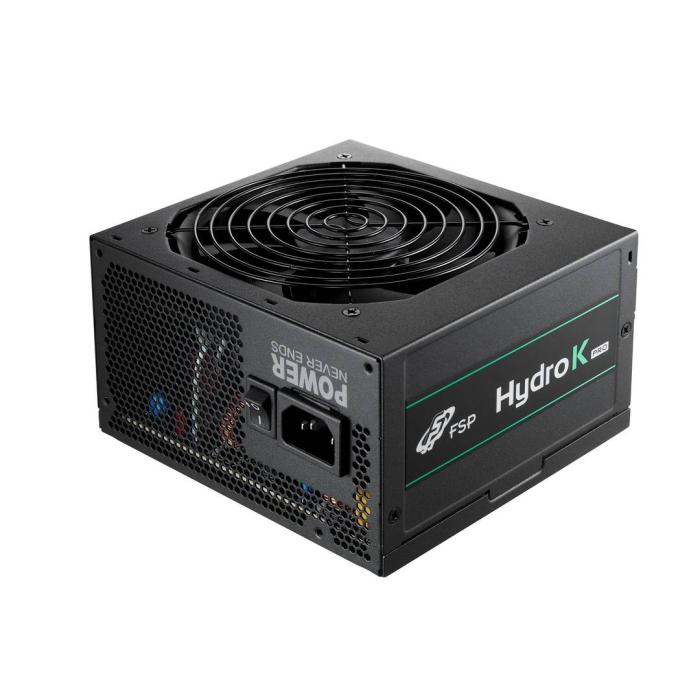

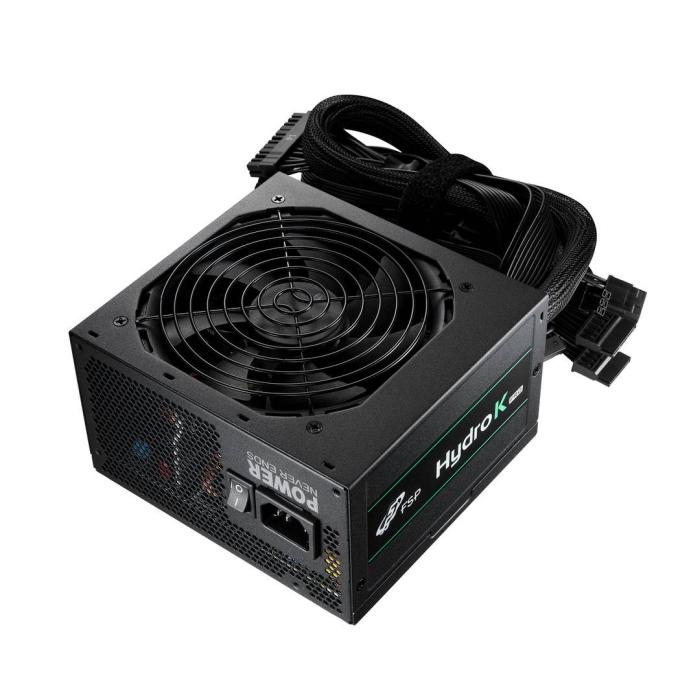

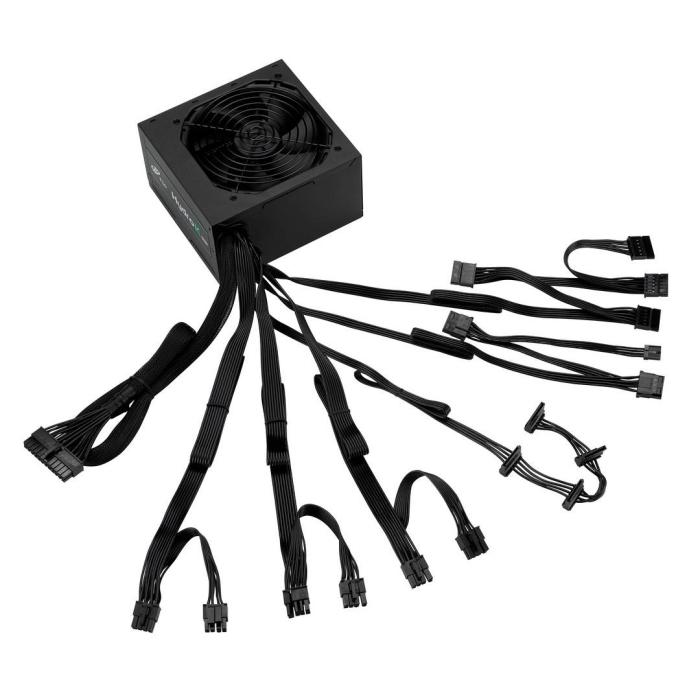

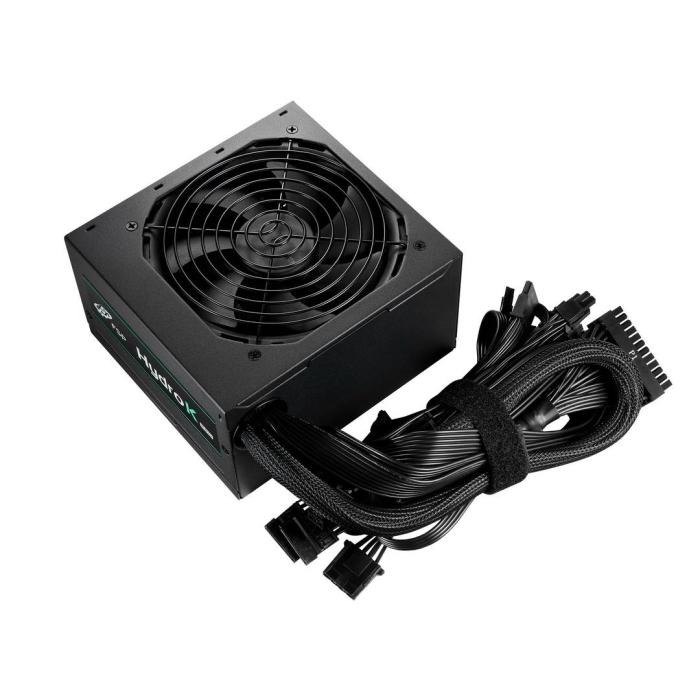

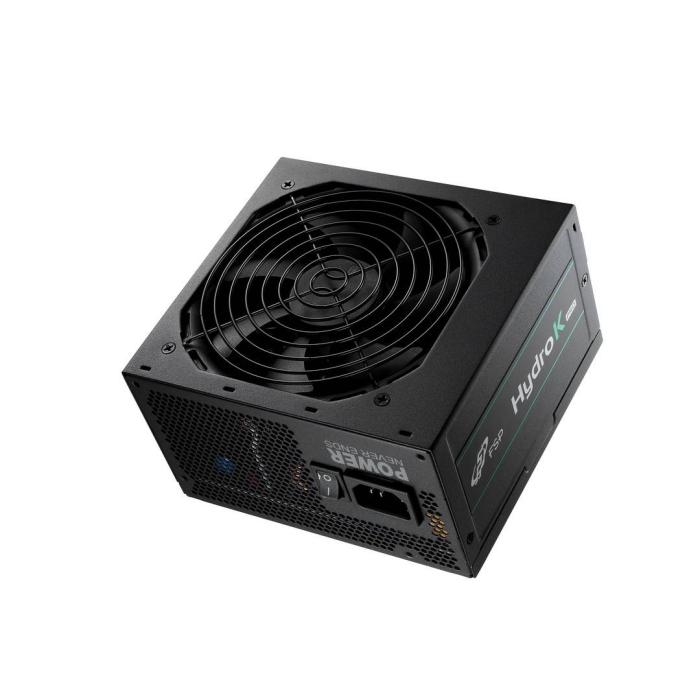

FSP/Fortron HD2-850 power supply unit 850 W 24-pin ATX ATX Black
FSP/Fortron HD2-850, 850 W, 200 - 240 V, 50 - 60 Hz, 6 A, Active, 100 W.
More infoBrand: FSP/FORTRON
77,00 €Stock available: 0 units.
Unavailable
SKU:
101463
PRC:
449363
EAN:
4713224525513
PN:
ppa8503201
Description
FSP/Fortron HD2-850, 850 W, 200 - 240 V, 50 - 60 Hz, 6 A, Active, 100 W
Specifications
Power
- Total power: 850 W
- AC input voltage: 200 - 240 V
- AC input frequency: 50 - 60 Hz
- Input current: 6 A
- Power factor: 0.9
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 100 W
- Combined power (+12V): 849.86 W
- Combined power (+5V): 100 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 12.5 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 70.83 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 2.5 A
- Hold time: 17 ms
- Efficiency: 88%
- Power protection features: Over current, Over power, Over voltage, Short circuit
Ports & interfaces
- Motherboard power connector: 24-pin ATX
- Number of SATA power connectors: 8
- Peripheral (Molex) power connectors (4-pin): 2
- PCI Express power connectors (6+2 pin): 4
- CPU power connector (4+4 pin): Yes
- ATX Power connector (24-pin): Yes
- Floppy drive power connector: 1
- Floppy disk drive connector: Yes
- Cabling type: Non-Modular
Performance
- 80 PLUS certification: 80 PLUS Bronze
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 2.52
- EPS version: 2.92
- Bearing technology: HYB
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- Fan location: Top
- On/off switch: Yes
Weight & dimensions
- Width: 150 mm
- Depth: 140 mm
- Height: 86 mm
Packaging data
- Package type: Box
Logistics data
- Harmonized System (HS) code: 84733020
