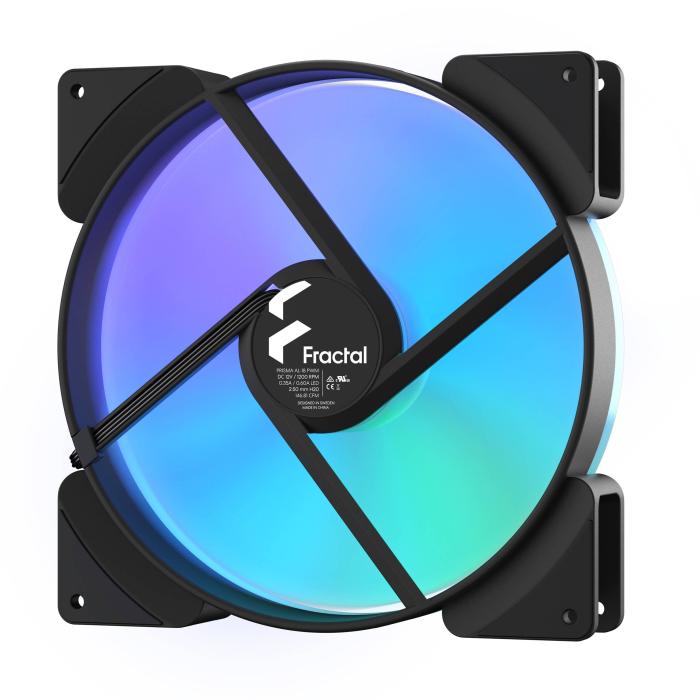

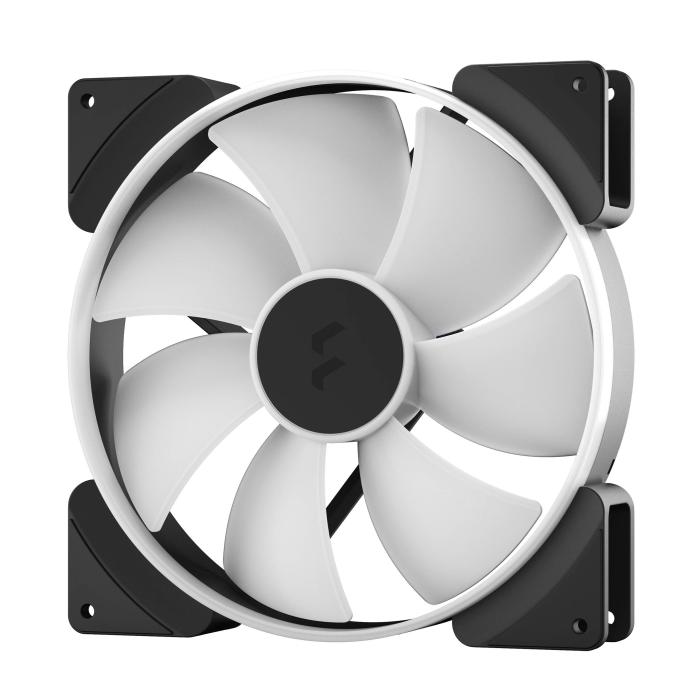

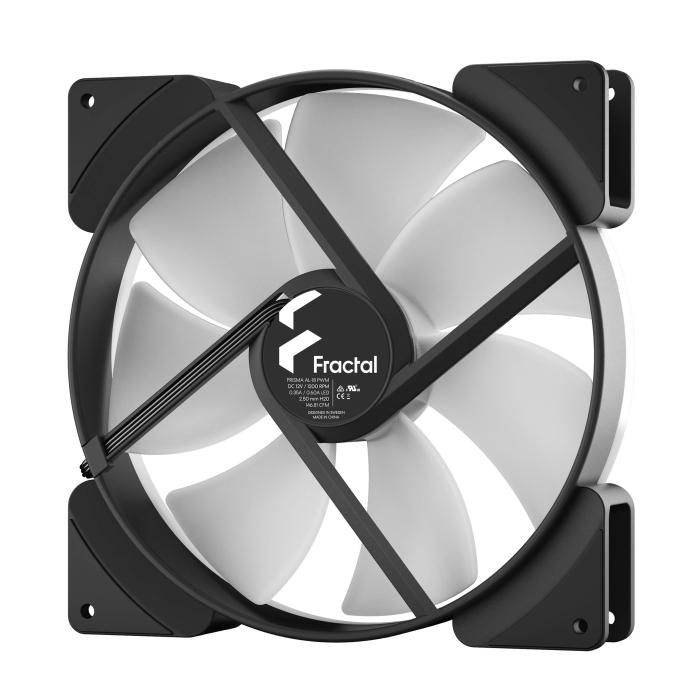

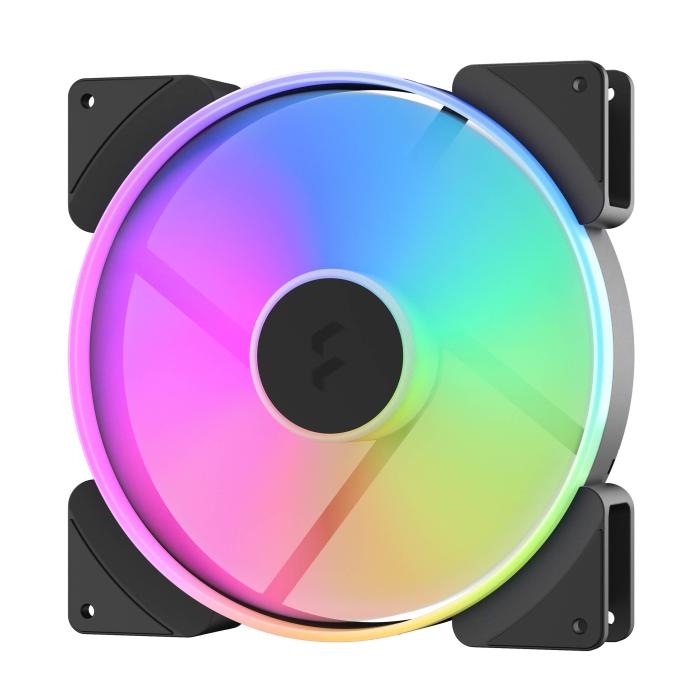

Fractal Design Prisma AL-18 PWM Computer case Fan 18 cm Black, White 2 pc(s)

Return

Fractal Design Prisma AL-18 PWM Computer case Fan 18 cm Black, White 2 pc(s)

Name: Fractal Design Prisma AL-18 PWM Computer case Fan 18 cm Black, White 2 pc(s)
Brand: FRACTAL DESIGN
Price: 28.57 USD
Availability: InStock

$28.57

$28.57 without VAT

More info

Amount

Brand: FRACTAL DESIGN

SKU: 89288 PRC: 336106 EAN: 7340172702665 PN: FD-FAN-PRI-AL18-PWM-2P

Description

Specifications

Performance

Suitable location: Computer case
Type: Fan
Fan diameter: 18 cm
Supported processor sockets: Not supported
Compatible processor series: Not supported
Rotational speed (min): 300 RPM
Rotational speed (max): 1200 RPM
Noise level (low speed): 14.9 dB
Noise level (high speed): 37.4 dB
Minimum airflow (imperial): 43.1 cfm
Maximum airflow: 146.8 cfm
Airflow: 249.56 m³/h
Minimum air pressure: 0.44 mmH2O
Maximum air pressure: 2.5 mmH2O
Fan diameter 2: 18 cm
Fan 2 rotational speed (min): 300 RPM
Fan 2 rotational speed (max): 1200 RPM
Fan 2 noise level (low speed): 14.9 dB
Fan 2 noise level (high speed): 37.4 dB
Fan 2 maximum airflow: 146.8 cfm
Fan 2 maximum air pressure: 2.5 mmH2O
Pulse-width modulation (PWM) support: Yes
Bearing type: Sleeve bearing
Quantity per pack: 2 pc(s)
Mean time between failures (MTBF): 90000 h

Design

Product colour: Black, White
Number of fans: 2 fan(s)
Number of fan blades: 7

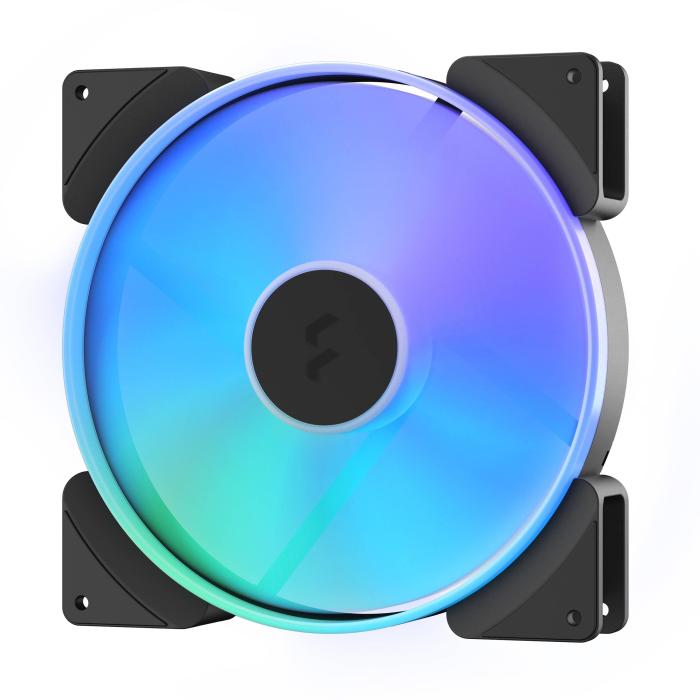

Illumination LED: Yes
Number of LEDs: 12
Illumination colour: Multi

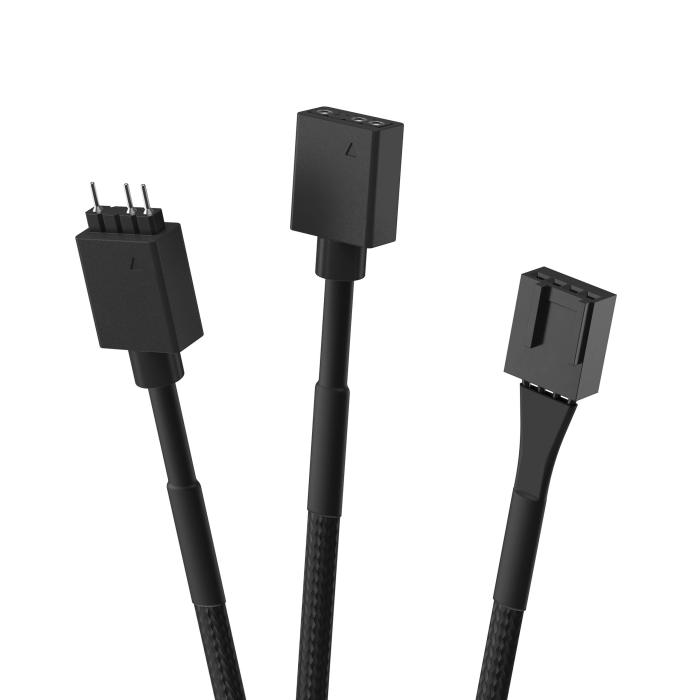

Fan connector: 4-pin

Power

Voltage: 6 - 12 V
Rated voltage: 5 V
Rated current: 0.6 A
Maximum current: 0.35 A

Weight & dimensions

Fan dimensions (W x D x H): 180 x 180 x 38 mm
Fan weight: 521 g
Fan 2 dimensions (W x D x H): 180 x 180 x 38 mm
Fan 2 weight: 521 g
Cable length: 1 m
Package width: 227 mm
Package depth: 182 mm
Package height: 80 mm
Package weight: 1.14 kg

Packaging content

Package type: Hanging box
Screws included: Yes
Number of screws: 24

Logistics data

Harmonized System (HS) code: 84733080
