Fractal Design Aspect 12 PWM Computer case Fan 12 cm Black 1 pc(s)
More info
Brand: FRACTAL DESIGN
12.74 €
10.53 €
without VAT
Stock available: 168 units.
Get it
on the
September 1
/
September 2
SKU:
88682
PRC:
328646
EAN:
7340172703303
PN:
FD-F-AS1-1203
Description

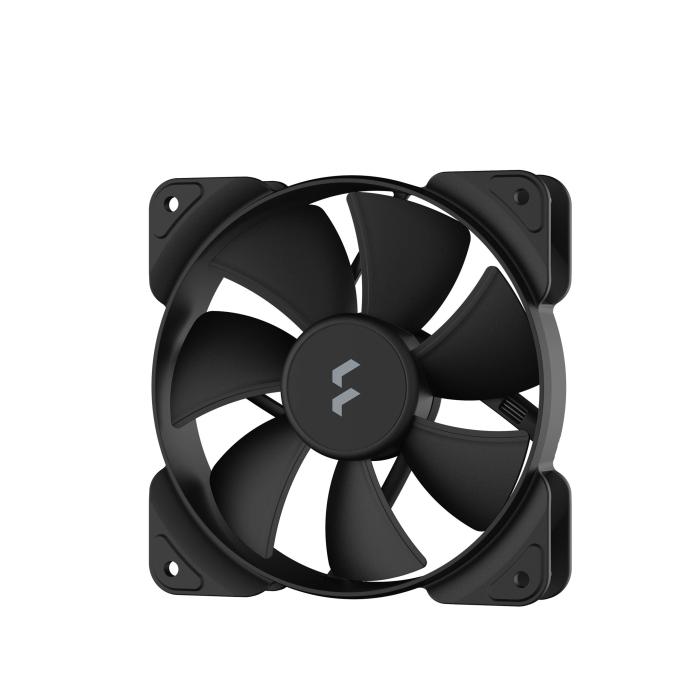

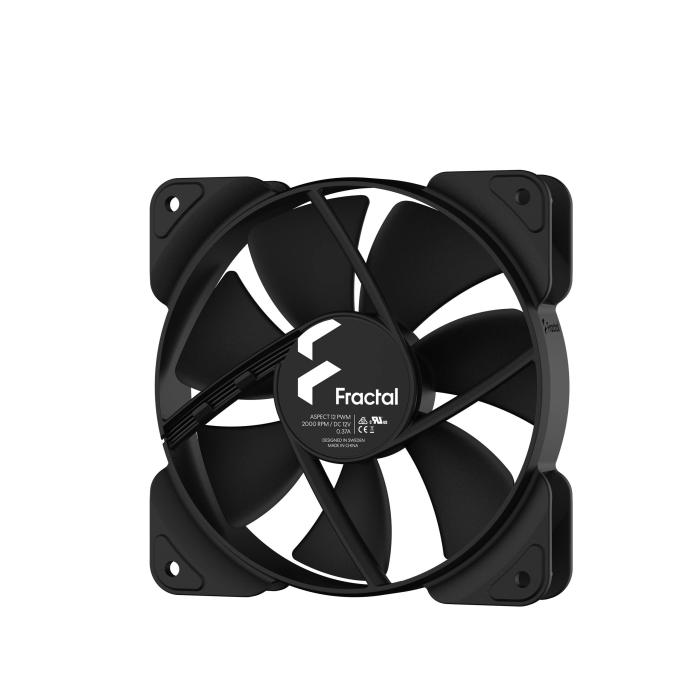

The Fractal Design Aspect 12 PWM fan, in black and with a 12 cm diameter, is designed for installation in the computer case. This single-fan model offers a rotation speed range of 500 to 2000 RPM, with an airflow of up to 95.1 m³/h (56 cfm) and a maximum pressure of 2.34 mmH2O. Its rifle bearing contributes to a long service life of 90,000 hours, with noise levels ranging from 10 dB at low speed to 33.2 dB at maximum. Equipped with 7 blades, its design seeks a balance between performance and sound levels for chassis cooling, although it is not compatible with processors.
Specifications
Performance
- Suitable location: Computer case
- Type: Fan
- Fan diameter: 12 cm
- Supported processor sockets: Not supported
- Compatible processor series: Not supported
- Rotational speed (min): 500 RPM
- Rotational speed (max): 2000 RPM
- Noise level (low speed): 10 dB
- Noise level (high speed): 33.2 dB
- Minimum airflow (imperial): 13 cfm
- Maximum airflow: 56 cfm
- Airflow: 95.1 m³/h
- Minimum air pressure: 0.23 mmH2O
- Maximum air pressure: 2.34 mmH2O
- Bearing type: Rifle bearing
- Quantity per pack: 1 pc(s)
- Mean time between failures (MTBF): 90000 h
Design
- Product colour: Black
- Number of fans: 1 fan(s)
- Number of fan blades: 7

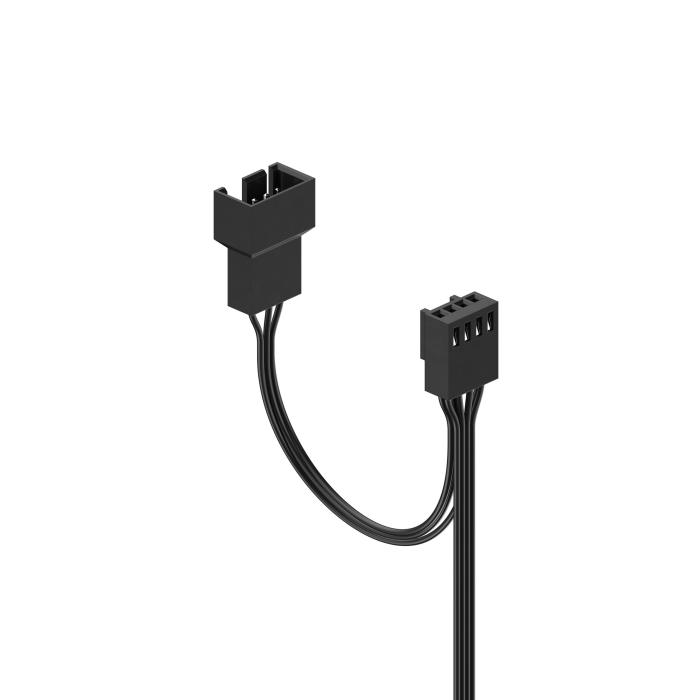

- Fan connector: 4-pin
Power
- Power consumption (typical): 1.68 W
- Voltage: 12 V
- Starting voltage: 7 V
- Maximum current: 0.37 A
Weight & dimensions
- Weight: 135 g
- Fan dimensions (W x D x H): 120 x 120 x 25 mm
- Cable length: 0.5 m
- Package width: 123 mm
- Package depth: 192 mm
- Package height: 30 mm
- Package weight: 155 g
Packaging content
- Screws included: Yes
- Number of screws: 4
Other features
- Country of origin: China
Logistics data
- Harmonized System (HS) code: 84733080
