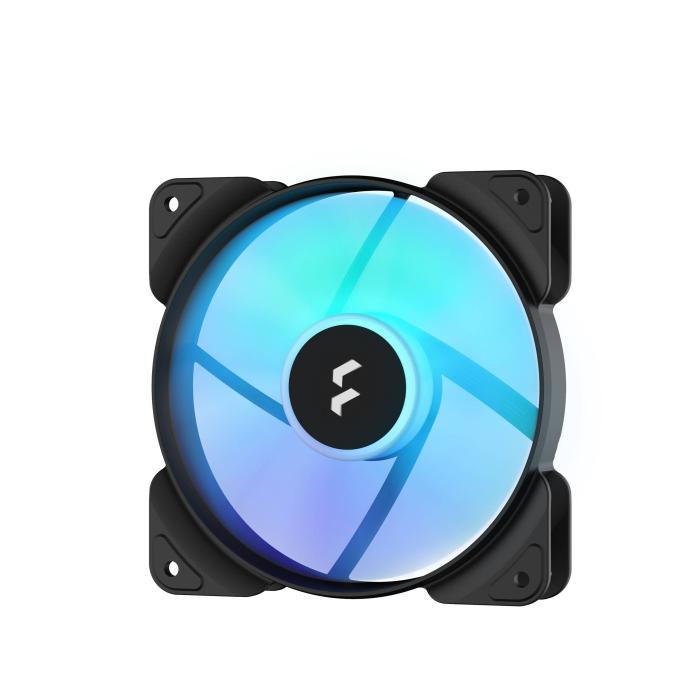

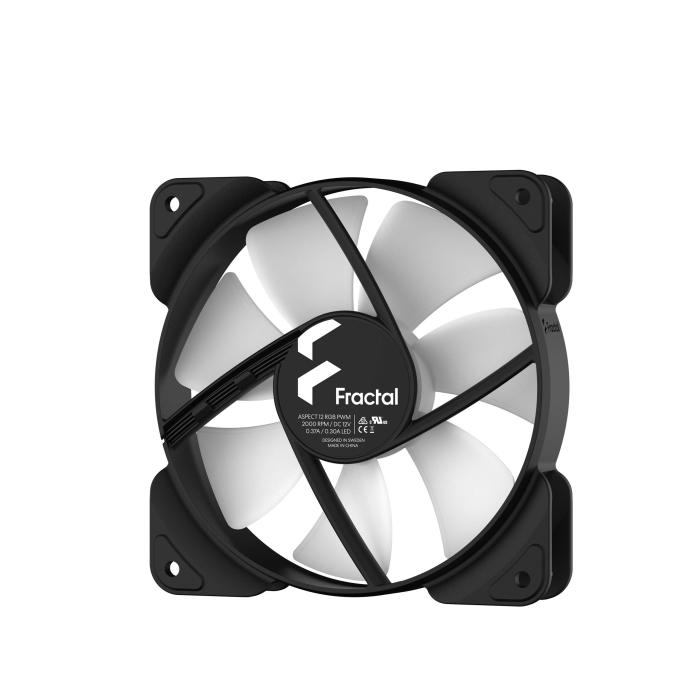

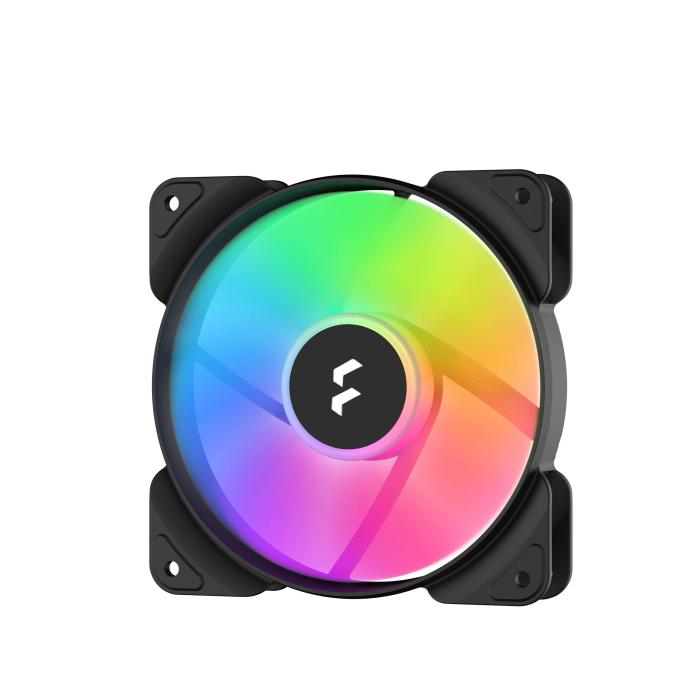

Fractal Design Aspect 12 RGB PWM Computer case Fan 12 cm Black 1 pc(s)
More info
Brand: FRACTAL DESIGN
16,00 €Stock available: 0 units.
Unavailable
SKU:
88683
PRC:
328648
EAN:
7340172703327
PN:
FD-F-AS1-1205
Description
12 cm black fan from Fractal Design, model Aspect 12 RGB PWM, specifically designed for installation in the computer case and supplied as a single unit. This fan features a rifle bearing and seven blades, offering a maximum airflow of 56 cfm (95.1 m³/h) and a maximum static pressure of 2.34 mmH2O, with a speed range between 500 and 2000 RPM. Its noise level varies from 10 dB at low speed up to 33.2 dB at high speed, while its mean time between failures is rated at 90000 hours.
Specifications
Performance
- Suitable location: Computer case
- Type: Fan
- Fan diameter: 12 cm
- Supported processor sockets: Not supported
- Compatible processor series: Not supported
- Rotational speed (min): 500 RPM
- Rotational speed (max): 2000 RPM
- Noise level (low speed): 10 dB
- Noise level (high speed): 33.2 dB
- Minimum airflow (imperial): 13 cfm
- Maximum airflow: 56 cfm
- Airflow: 95.1 m³/h
- Minimum air pressure: 0.23 mmH2O
- Maximum air pressure: 2.34 mmH2O
- Bearing type: Rifle bearing
- Quantity per pack: 1 pc(s)
- Mean time between failures (MTBF): 90000 h
Design
- Product colour: Black
- Number of fans: 1 fan(s)
- Number of fan blades: 7
- Illumination LED: Yes
- Illumination colour: Multi

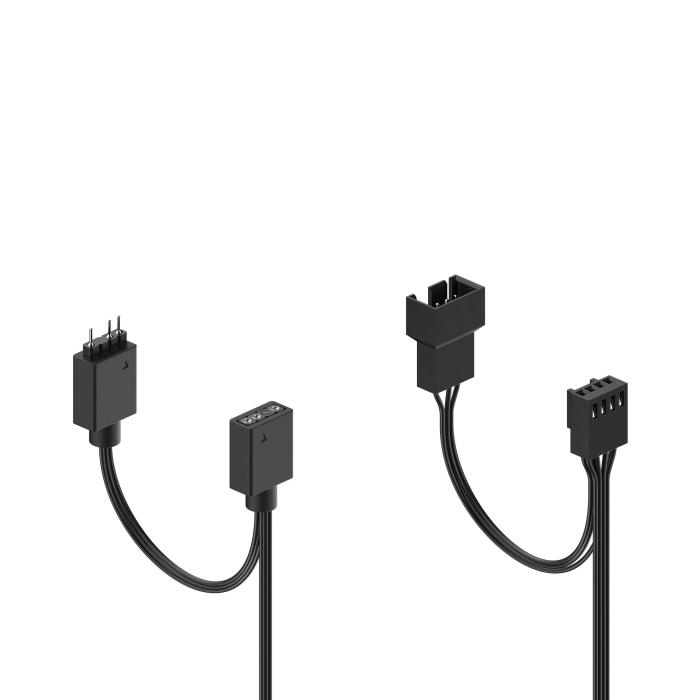

- Fan connector: 4-pin
Power
- Power consumption (typical): 1.68 W
- Voltage: 12 V
- Rated voltage: 5 V
- Starting voltage: 7 V
- Maximum current: 0.37 A
Weight & dimensions
- Weight: 135 g
- Fan dimensions (W x D x H): 120 x 120 x 25 mm
- Cable length: 0.5 m
- Package width: 123 mm
- Package depth: 192 mm
- Package height: 30 mm
- Package weight: 155 g
Packaging content
- Screws included: Yes
- Number of screws: 4
Other features
- Country of origin: China
Logistics data
- Harmonized System (HS) code: 84733080
