Name: Epson EB-685W Ultra short throw projector 3500 ANSI lumens 3LCD WXGA (1280x800) White, Grey
Brand: EPSON
Price: 1465.4 USD
Availability: InStock

Epson EB-685W Ultra short throw projector 3500 ANSI lumens 3LCD WXGA (1280x800) White, Grey

$1,465.40

$1,465.40 without VAT

Amount

Brand: EPSON

SKU: 78138 PRC: 145824 EAN: 8715946605210 PN: V11H744040

Description

Epson EB-685W, 3500 ANSI lumens, 3LCD, WXGA (1280x800), 14000:1, 16:10, 1524 - 2540 mm (60 - 100'')

Specifications

Projector

Supported aspect ratios: 16:10
Screen size compatibility: 1524 - 2540 mm (60 - 100")
Projection distance: 0.4 - 0.6 m
Projection distance (wide): 0 - 0.4 m
Projection distance (tele): 0 - 0.6 m
Contrast ratio (dynamic): 14000:1
Projector brightness: 3500 ANSI lumens
Projection technology: 3LCD
Projector native resolution: WXGA (1280x800)
Contrast ratio (typical): 14000:1
Native aspect ratio: 16:10
Number of colours: 1.07 billion colours
Projector brightness (economic mode): 2900 ANSI lumens
Vertical scan range: 100 - 120 Hz
Keystone correction, horizontal: -3 - 3°
Keystone correction, vertical: -3 - 3°
Matrix size: 1.5 cm (0.59")

Light source

Light source type: Lamp
Service life of light source: 5000 h
Service life of light source (economic mode): 10000 h
Lamp power: 250 W

Lens system

Focus: Manual
Focal length range: 3.7 mm
Fixed focal length: 3.7 mm
Zoom capability: Yes
Zoom type: Auto
Zoom ratio: 1.35:1
Digital zoom: 1.35x
Throw ratio: 0.28 - 0.37:1

Video

Full HD: No
HD-Ready: Yes
3D: No
Video processing: 10 bit
Colour modes (2D): Cinema, Dynamic
Video colour modes: Dynamic, Cinema, Presentation, sRGB, Blackboard

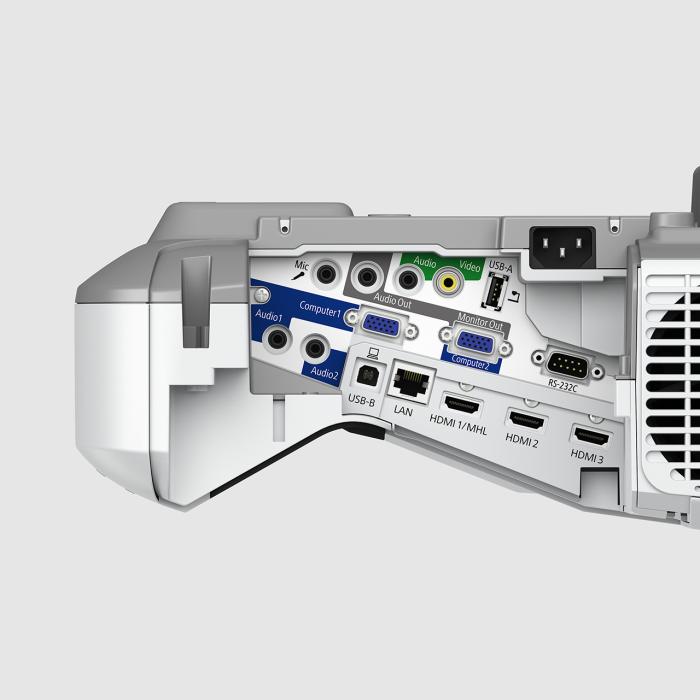

Ports & interfaces

USB 2.0 ports quantity: 2
Audio (L/R) in: 1
Headphone outputs: 1
Microphone in: Yes
Serial interface type: RS-232
VGA (D-Sub) ports quantity: 3
HDMI ports quantity: 3
USB connector type: USB Type-A, USB Type-B
Composite video in: 1
DVI port: No
Mobile High-Definition Link (MHL): Yes
AC (power) in: Yes

Network

Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10, 100 Mbit/s

Storage

Card reader integrated: No

Features

Interactive: No
Noise level (economic mode): 30 dB
On Screen Display (OSD): Yes
Noise level: 35 dB
Air filter: Yes
2D/3D frequency image: 100 - 120 Hz
Country of origin: Philippines
Password protection: Yes
Compatible operating systems: Linux, Mac OS 10.10.x, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Ubuntu 14.10, Ubuntu 15.04, Ubuntu 15.10, Ubuntu 16.04 LTS,

Multimedia

Built-in speaker(s): Yes
RMS rated power: 16 W
Number of built-in speakers: 1

Design

Market positioning: Ulta short throw
Product type: Ultra short throw projector
Product colour: White, Grey
Placement: Wall
Cable lock slot: Yes
Cable lock slot type: Kensington

Display

Built-in display: No

Power

Power consumption (standby): 0.37 W
Power consumption (PowerSave): 310 W
Power consumption (economy mode): 309 W
AC input voltage: 100-240 V
AC input frequency: 50 - 60 Hz
Power source: AC
Power consumption (typical): 354 W

Software

Software support: via: AMX, Crestron (Network), Control4
Windows operating systems supported: Windows 10, Windows 8, Windows 8.1
Mac compatibility: Yes
Mac operating systems supported: Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
