Epson EB-695Wi Ultra short throw projector 3500 ANSI lumens 3LCD WXGA (1280x800) White, Grey

Not avaliable

Amount

Brand: EPSON

SKU: 78140 PRC: 145826 EAN: 8715946605135 PN: V11H740040

Description

Epson EB-695Wi, 3500 ANSI lumens, 3LCD, WXGA (1280x800), 14000:1, 16:10, 1524 - 2540 mm (60 - 100'')

Specifications

Projector

Supported aspect ratios: 16:10
Screen size compatibility: 1524 - 2540 mm (60 - 100")
Projection distance (wide): 0 - 0.4 m
Projection distance (tele): 0 - 0.6 m
Contrast ratio (dynamic): 14000:1
Projector brightness: 3500 ANSI lumens
Projection technology: 3LCD
Projector native resolution: WXGA (1280x800)
Contrast ratio (typical): 14000:1
Native aspect ratio: 16:10
Number of colours: 1.07 billion colours
Projector brightness (economic mode): 2900 ANSI lumens
Vertical scan range: 100 - 120 Hz
Keystone correction, horizontal: -3 - 3°
Keystone correction, vertical: -3 - 3°
Matrix size: 1.5 cm (0.59")
Vertical synchronization (min): 0.1 kHz
Vertical synchronization (max): 0.12 kHz
White light output: 3500 ANSI lumens
Colour light output: 3500 ANSI lumens

Light source

Light source type: Lamp
Service life of light source: 5000 h
Service life of light source (economic mode): 10000 h
Lamp power: 250 W

Lens system

Focus: Manual
Focal length range: 3.7 mm
Fixed focal length: 3.7 mm
Aperture range (F-F): 0 - 1.6
Zoom type: Auto
Zoom ratio: 1.35:1
Digital zoom: 1.35x
Throw ratio: 0.28 - 0.37:1

Video

Full HD: No
3D: No
Video processing: 10 bit
Colour modes (2D): Cinema, Dynamic
Video colour modes: Blackboard, Cinema, Dynamic, Presentation, sRGB

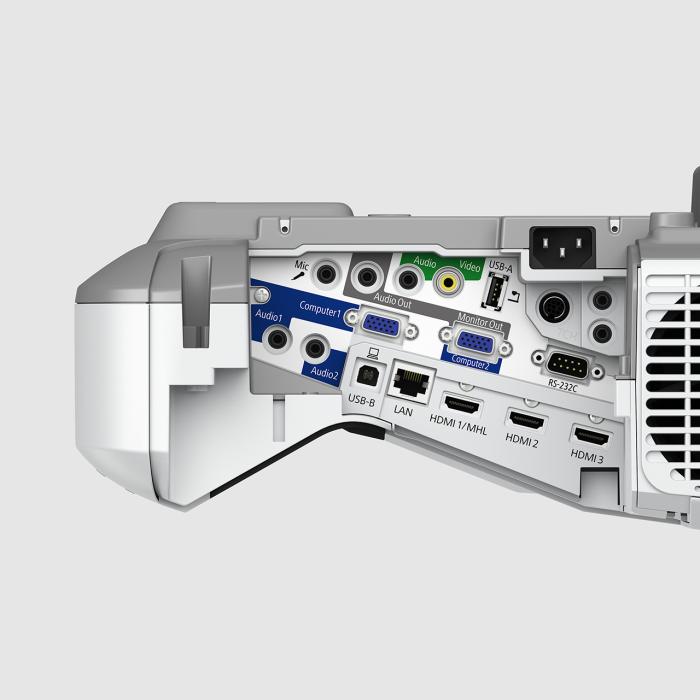

Ports & interfaces

S-Video inputs quantity: 1
USB 2.0 ports quantity: 1
USB 2.0 Type-B ports quantity: 1
Audio (L/R) in: 1
Headphone outputs: 1
Microphone in: Yes
Serial interface type: RS-232C
VGA (D-Sub) ports quantity: 3
HDMI ports quantity: 3
Composite video in: 1
DVI port: No
Mobile High-Definition Link (MHL): Yes
AC (power) in: Yes
Consumer Electronics Control (CEC) support: Yes

Network

Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10, 100 Mbit/s

Storage

Card reader integrated: No

Features

Interactive: Yes
Interactive input supported: Interactive pen/Touch
Noise level (economic mode): 30 dB
On Screen Display (OSD): Yes
Noise level: 35 dB
Country of origin: Philippines
Password protection: Yes
Compatible operating systems: Linux, Mac OS 10.10.x, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Ubuntu 14.10, Ubuntu 15.04, Ubuntu 15.10, Ubuntu 16.04 LTS,
Certification: TCO

Multimedia

Built-in speaker(s): Yes
RMS rated power: 16 W

Design

Market positioning: Ulta short throw
Product type: Ultra short throw projector
Product colour: White, Grey
Placement: Wall
LED indicators: Yes
Cable lock slot: Yes
Cable lock slot type: Kensington

Display

Built-in display: No

Power

Power source: AC
Power consumption (typical): 354 W
Power consumption (standby): 0.37 W
Power consumption (economy mode): 309 W
AC input voltage: 100-240 V
AC input frequency: 50 - 60 Hz

Software

Software support: via: AMX, Crestron (Network), Control4
Windows operating systems supported: Windows 10, Windows 8, Windows 8.1
Mac compatibility: Yes
Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported: Yes

Operational conditions

Operating temperature (T-T): 5 - 40 °C
Storage temperature (T-T): -10 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 367 mm
Depth: 400 mm
Height: 149 mm
Weight: 5.8 kg
Package width: 490 mm
Package depth: 740 mm
Package height: 335 mm
Package weight: 21.6 kg

Packaging content

Remote control included: Yes
Batteries included: Yes
Cables included: AC
Quick start guide: Yes
Manual: Yes
Mounting brackets included: Yes
Warranty card: Yes
WLAN adapter included: Yes
Bundled software: Easy Interactive Tools, EasyMP Multi PC Projection, Epson Projektor Management

Technical details

USB display function: 3 in 1: Image / Mouse / Sound
Sustainability certificates: TCO

Logistics data

Quantity per pack: 1 pc(s)
Products per pallet: 12 pc(s)
Pallet gross weight: 0 g
Pallet gross length: 120 cm
Pallet gross width: 80 cm
Pallet gross height: 15 cm
Products per pallet layer: 2 pc(s)
Products per pallet layer (UK): 2 pc(s)
Products per pallet (UK): 12 pc(s)
Pallet weight (UK): 0 g
Pallet length (UK): 120 cm
Pallet width (UK): 100 cm
Pallet height (UK): 15 cm
Harmonized System (HS) code: 85286200

Other features

RS-232 ports: 1
RS-232C: Yes
