Description

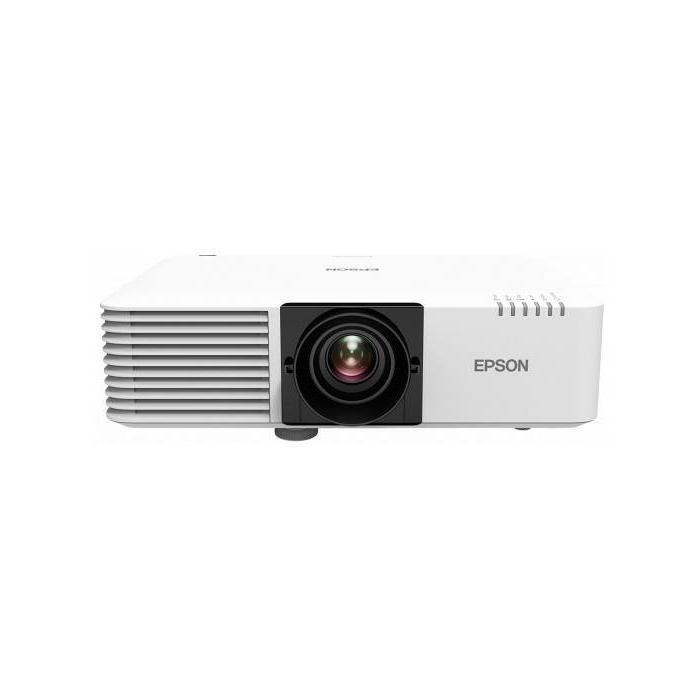

The Epson EB-L520U projector comes in white with dimensions of 440 x 304 x 122 mm and a weight of 7.7 kg. It incorporates 3LCD projection technology with a native WUXGA resolution of 1920x1200 and a native aspect ratio of 16:10. It offers a brightness of 5200 ANSI lumens, which reduces to 3640 ANSI lumens in eco mode, with a typical contrast ratio of 2500000:1 and a total of 1.07 billion colours. The light source is laser type, with a lifespan of 20000 hours that extends up to 30000 hours in eco mode. Its lens system uses manual focus and manual zoom, with an aperture range of 1.5 to 1.7 and a matrix size of 1.7 cm. It covers screen compatibilities from 1270 to 12700 mm and allows image adjustment via vertical and horizontal keystone correction from -30 to 30 degrees. The vertical scan range moves between 192 and 240 Hz.
Specifications
Projector
- Screen size compatibility: 1270 - 12700 mm (50 - 500")
- Projector brightness: 5200 ANSI lumens
- Projection technology: 3LCD
- Projector native resolution: WUXGA (1920x1200)
- Contrast ratio (typical): 2500000:1
- Native aspect ratio: 16:10
- Number of colours: 1.07 billion colours
- Projector brightness (economic mode): 3640 ANSI lumens
- Vertical scan range: 192 - 240 Hz
- Keystone correction, horizontal: -30 - 30°
- Keystone correction, vertical: -30 - 30°
- Matrix size: 1.7 cm (0.67")
Light source
- Light source type: Laser
- Service life of light source: 20000 h
- Service life of light source (economic mode): 30000 h
Lens system
- Focus: Manual
- Focal length range: 20 - 31.8 mm
- Aperture range (F-F): 1.5 - 1.7
- Zoom capability: Yes
- Zoom type: Manual
- Zoom ratio: 1.6:1
- Throw ratio: 1.35 - 2.2:1
Video
- Analog signal format system: Not supported
- Full HD: Yes
- 3D: No
- Video processing: 10 bit
- Video colour modes: Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode
Ports & interfaces
- USB 2.0 ports quantity: 2
- USB 2.0 Type-B ports quantity: 1
- Audio (L/R) in: 1
- Serial interface type: RS-232C
- VGA (D-Sub) ports quantity: 3
- HDMI ports quantity: 2
- DVI port: No
Network
- Ethernet LAN: Yes
- Wi-Fi: Yes
- Wi-Fi standards: 802.11a, Wi-Fi 4 (802.11n)
Storage
- Card reader integrated: No
Features
- Noise level (economic mode): 23 dB
- Noise level: 31 dB
- Country of origin: Philippines
Multimedia
- Built-in speaker(s): Yes
- RMS rated power: 10 W
- Number of built-in speakers: 1
Design
- Market positioning: Presentation
- Product type: Standard throw projector
- Product colour: White
- Placement: Ceiling, Desktop, Floor, Wall
- Cable lock slot: Yes
- Cable lock slot type: Kensington
Display
- Built-in display: No
Power
- Power source: AC
- Power consumption (typical): 293 W
- Power consumption (standby): 0.3 W
- Power consumption (economy mode): 223 W
- AC input voltage: 100-240 V
- AC input frequency: 50 - 60 Hz
Software
- Software support: via: AMX, Crestron (Network), Control4, Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4
Operational conditions
- Storage temperature (T-T): -10 - 60 °C
- Operating relative humidity (H-H): 20 - 80%
- Storage relative humidity (H-H): 10 - 90%
Weight & dimensions
- Width: 440 mm
- Depth: 122 mm
- Height: 304 mm
- Weight: 7.7 kg
- Package width: 540 mm
- Package depth: 530 mm
- Package height: 210 mm
- Package weight: 10.4 kg
Packaging content
- Remote control included: Yes
- Batteries included: Yes
- Cables included: AC, HDMI
- Warranty card: Yes
- Bundled software: EasyMP Multi PC Projection
Technical details
- USB display function: 3 in 1: Image / Mouse / Sound
- Sustainability certificates: TCO
Logistics data
- Quantity per pack: 1 pc(s)
- Products per pallet: 14 pc(s)
- Pallet gross weight: 0 g
- Products per pallet (UK): 14 pc(s)
- Pallet weight (UK): 0 g
- Harmonized System (HS) code: 85286200
