EnGenius Cloud5 2×2 Outdoor

Product 1 image

Product 2 image

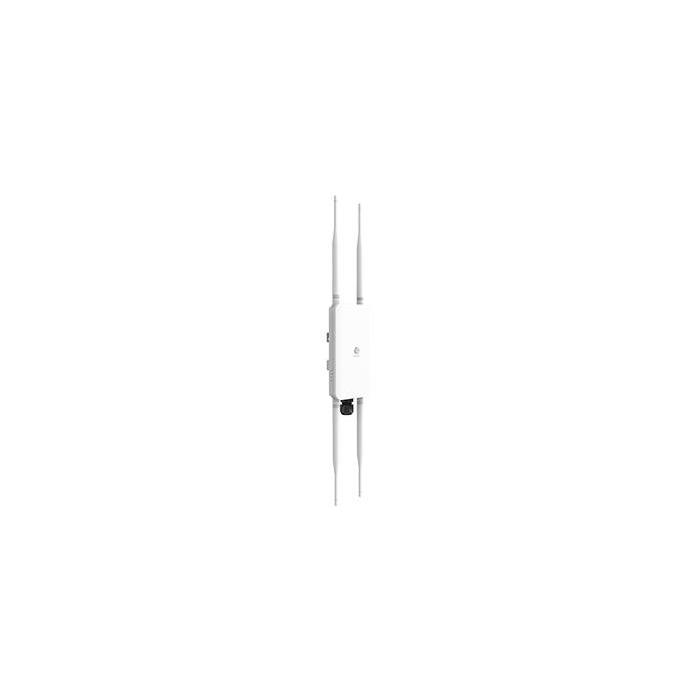

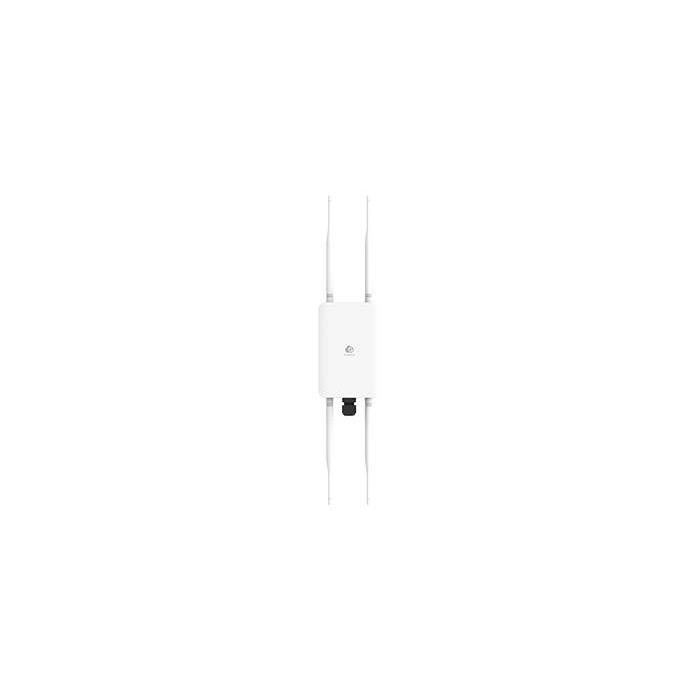

EnGenius Cloud5 2×2 Outdoor

Not avaliable

Amount

Brand: ENGENIUS

SKU: 83699 PRC: 273841 EAN: 4713361934964 PN: ECW160

Description

Specifications

Features

2.4 GHz: Yes
5 GHz: Yes
Maximum data transfer rate: 867 Mbit/s
Maximum data transfer rate (2.4 GHz): 400 Mbit/s
Maximum data transfer rate (5 GHz): 867 Mbit/s
Ethernet LAN data rates: 10, 100, 1000 Mbit/s
Frequency band: 2.4 - 2.482, 5.15 - 5.25, 5.25 - 5.35, 5.47 - 5.725, 5.725 - 5.85 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3, IEEE
MIMO: Yes
MIMO type: Multi User MIMO
Spread spectrum method: DSSS, OFDM
Modulation: 16-QAM, 64-QAM, 256-QAM, BPSK, CCK, QPSK
Fit AP mode features: Mesh networking
Wi-Fi Multimedia (WMM)/(WME): Yes
VLAN support: Yes
Virtual LAN features: Tagged VLAN
Quality of Service (QoS) support: Yes
Transmitting power: 23 dBmW

Security

Security algorithms: SSH, WPA2-AES, WPA2-Enterprise, WPA2-PSK
MAC address filtering: Yes
Service Set Identifier (SSID) features: Multiple SSIDs
Number of SSID supported: 8

Protocols

Management protocols: SNMP

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Power

Power over Ethernet (PoE): Yes
Power consumption (max): 12.6 W

Design

Placement: Pole, Wall
Product colour: White
LED indicators: Yes

Antenna

Antenna type: External
Antenna direction type: Omni-directional
Antenna features: Integrated antenna
Antennas quantity: 4
Antenna gain level (max): 5 dBi
Antenna connector type: SMA
Number of connectors: 4

Certificates

Certification: FCC, CE, IC

Weight & dimensions

Width: 111.2 mm
Depth: 173.6 mm
Height: 30.3 mm
Weight: 829.5 g

Packaging content

Mounting kit: Yes
Quick start guide: Yes

Operational conditions

Operating temperature (T-T): -20 - 60 °C
Storage temperature (T-T): -40 - 80 °C

Logistics data

Harmonized System (HS) code: 85176990
