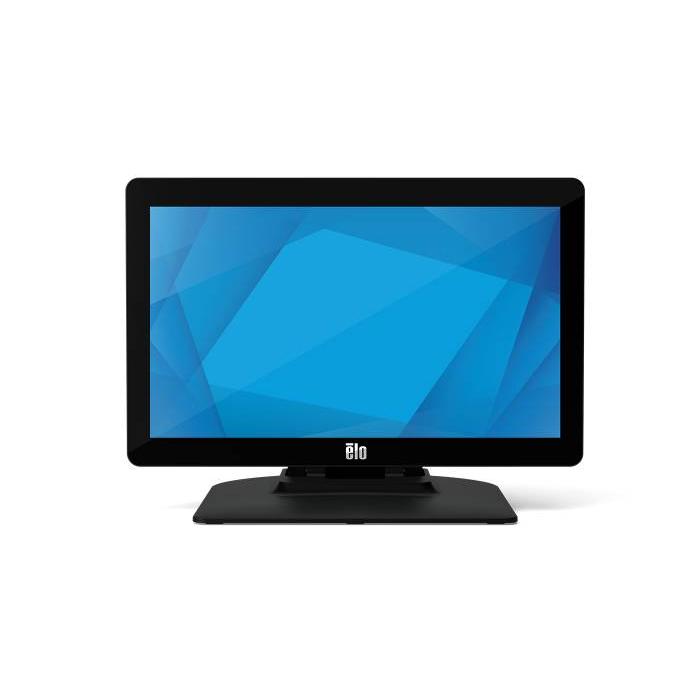

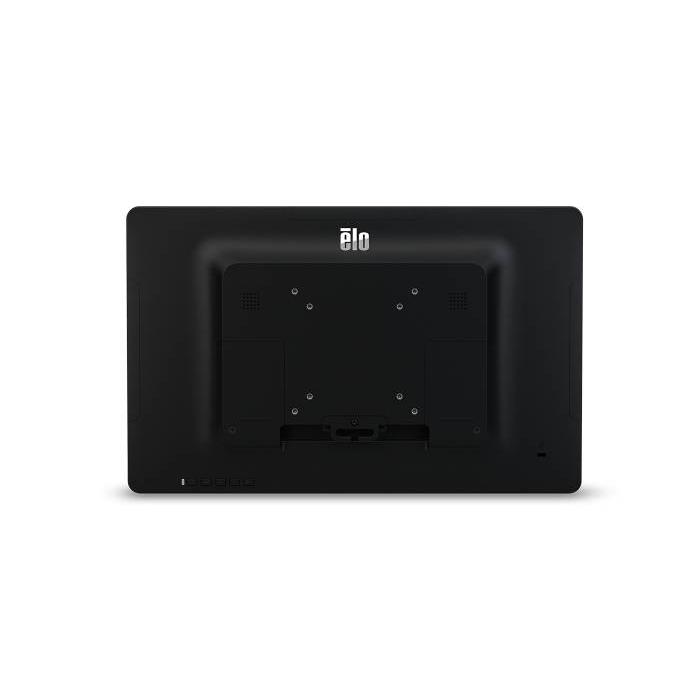

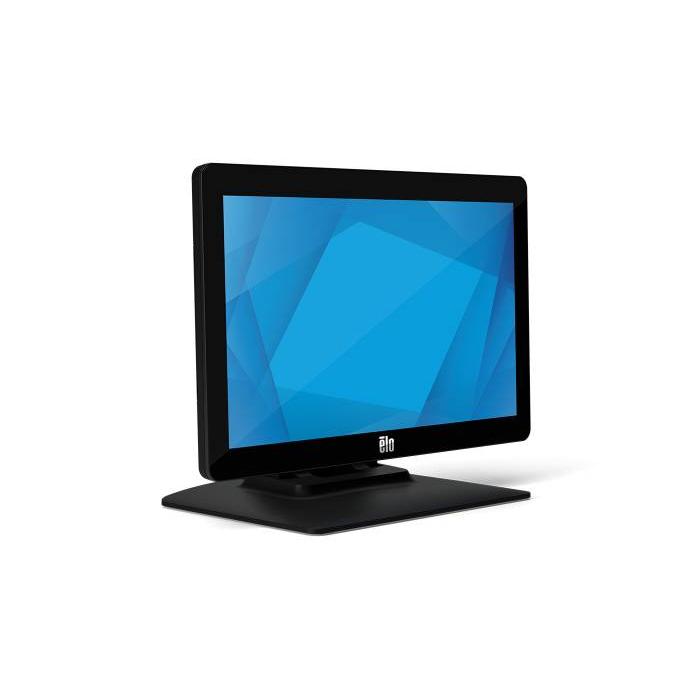

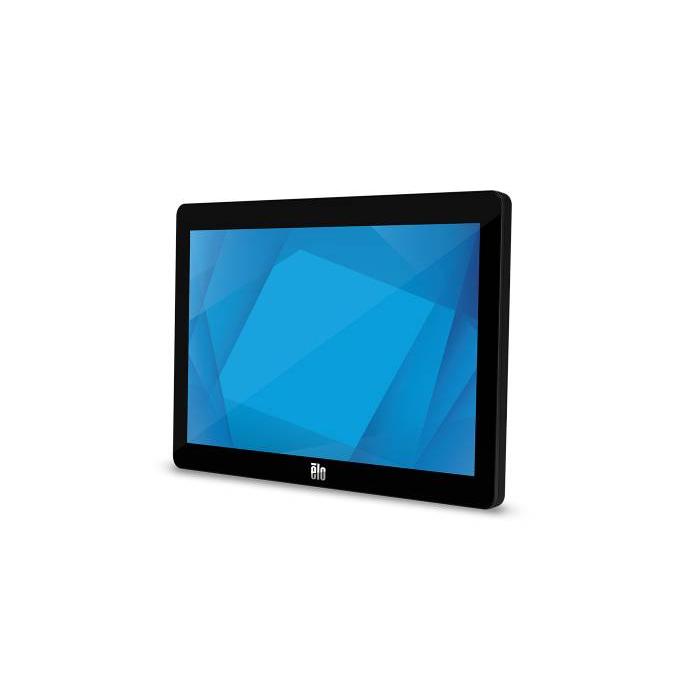

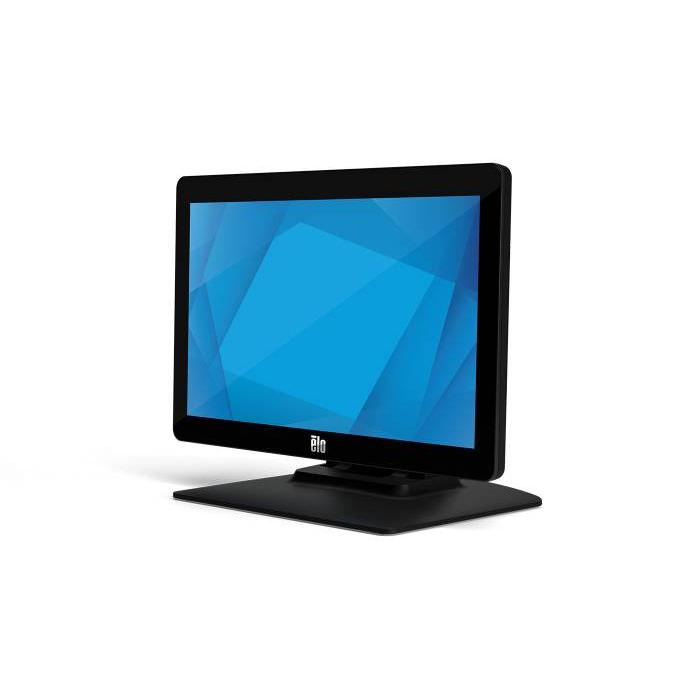

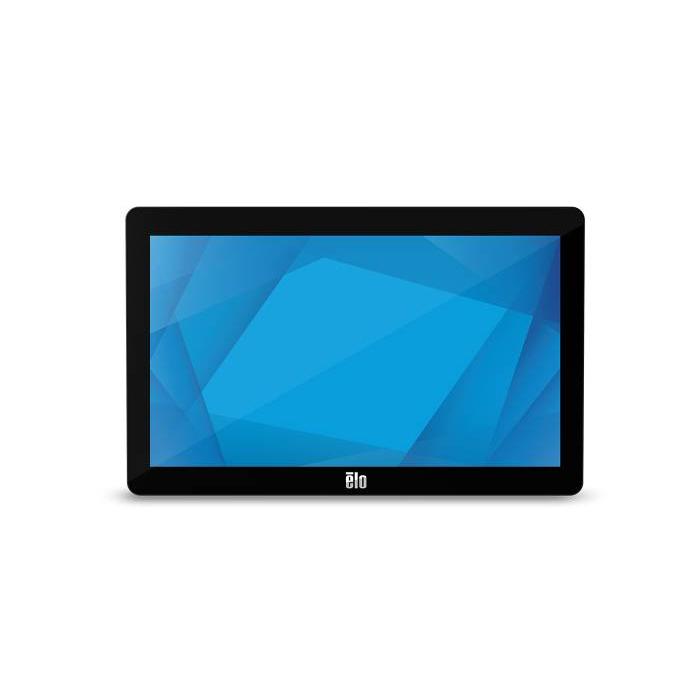

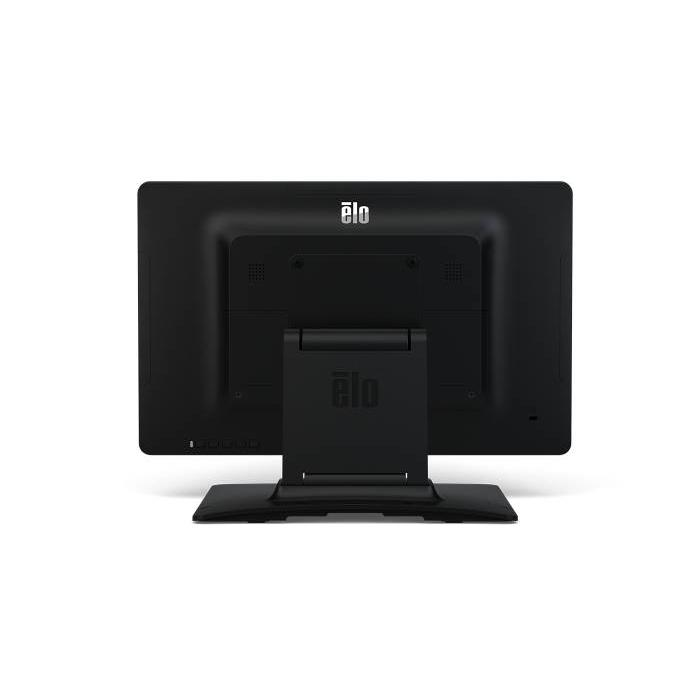

Elo Touch Solutions E125496 Signage Display 39.6 cm (15.6'') LED Full HD Black Touchscreen

Not avaliable

More info

Brand: ELO TOUCH SOLUTIONS
SKU: 112887 PRC: 417556 EAN: 843173124063 PN: e125496

Description

Specifications

Display

  • Panel type: TFT
  • Display diagonal: 39.6 cm (15.6")
  • Display technology: LED
  • Display resolution: 1920 x 1080 pixels
  • HD type: Full HD
  • Touchscreen: Yes
  • Native aspect ratio: 16:9
  • Response time: 30 ms
  • Contrast ratio (typical): 700:1
  • Viewing angle, horizontal: 160°
  • Viewing angle, vertical: 160°
  • Display number of colours: 262144 colours
  • Horizontal scan range: 31.5 - 82 kHz
  • Vertical scan range: 50 - 75 Hz
  • Supported graphics resolutions: 1280 x 720 (HD 720), 720 x 400, 1280 x 800 (WXGA), 1280 x 960, 1280 x 1024 (SXGA), 1360 x 768 (WXGA), 800 x 600 (SVGA), 1366 x 7

Ports & interfaces

  • HDMI ports quantity: 1
  • DC-in jack: Yes

Audio

  • Built-in speaker(s): Yes
  • RMS rated power: 2 W

Design

  • Product colour: Black
  • Screen shape: Flat
  • VESA mounting: Yes
  • Panel mounting interface: 75 x 100 mm
  • Anti-glare screen: Yes

Performance

  • On Screen Display (OSD): Yes
  • International Protection (IP) code: IPX1

Power

  • Power consumption (typical): 9.5 W
  • Power consumption (standby): 1.87 W
  • Power consumption (off): 0.2 W
  • Energy efficiency class (SDR): E
  • Energy consumption (SDR) per 1000 hours: 12 kWh
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Energy efficiency scale: A to G

Weight & dimensions

  • Width (with stand): 387 mm
  • Depth (with stand): 32.4 mm
  • Height (with stand): 244.4 mm
  • Weight (with stand): 1.16 kg

Packaging data

  • Package width: 175 mm
  • Package depth: 451 mm
  • Package height: 320 mm
  • Package weight: 3.39 kg

Packaging content

  • Cables included: AC, USB Type-A to USB Type-C, HDMI

Operational conditions

  • Operating temperature (T-T): 0 - 40 °C
  • Operating relative humidity (H-H): 20 - 80%
  • Storage temperature (T-T): -20 - 60 °C
  • Storage relative humidity (H-H): 10 - 95%

Other features

  • Quick start guide: Yes
  • Viewable size, horizontal: 34.4 cm
  • Viewable size, vertical: 19.4 cm
  • Package type: Box
