Description

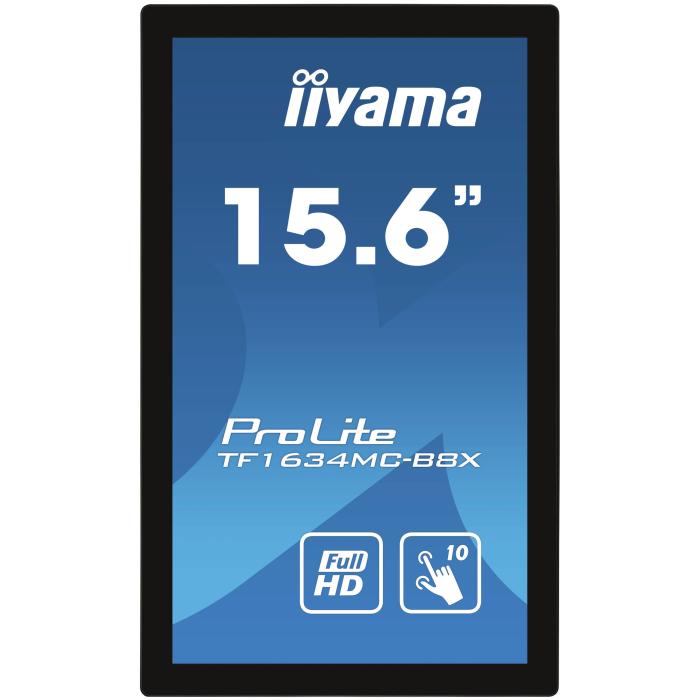

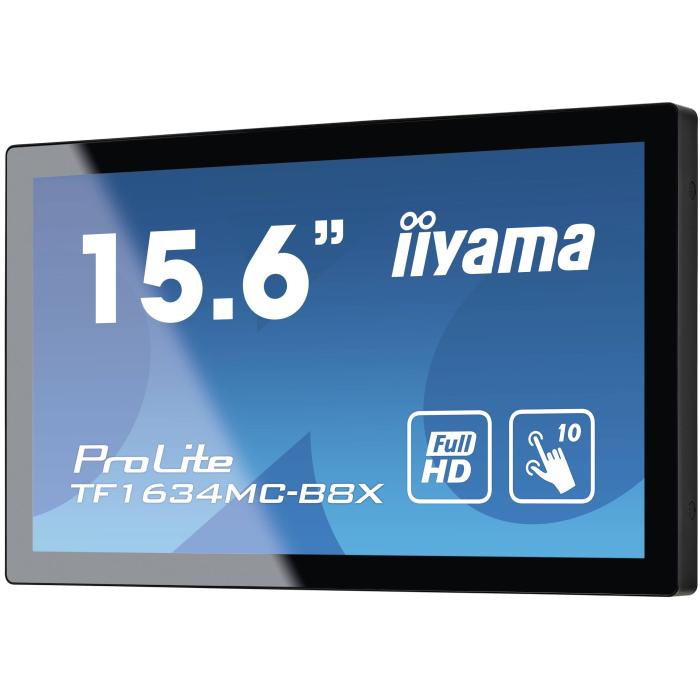

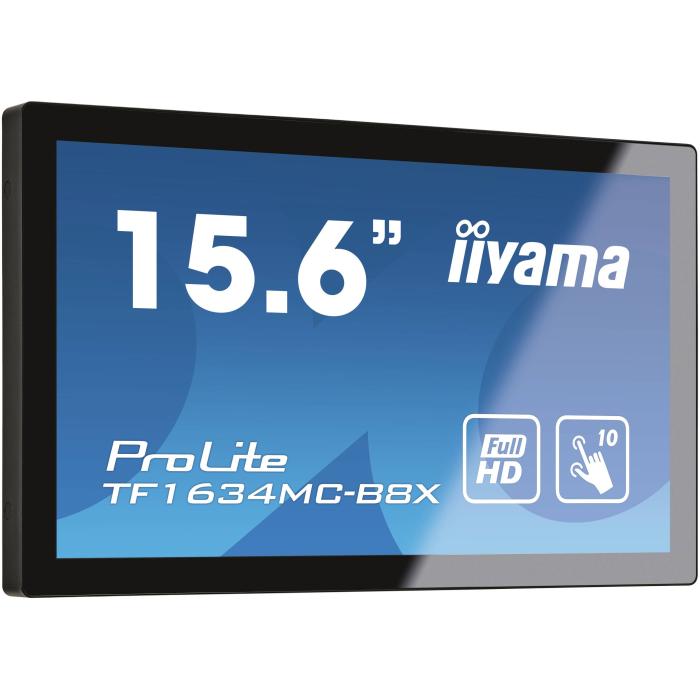

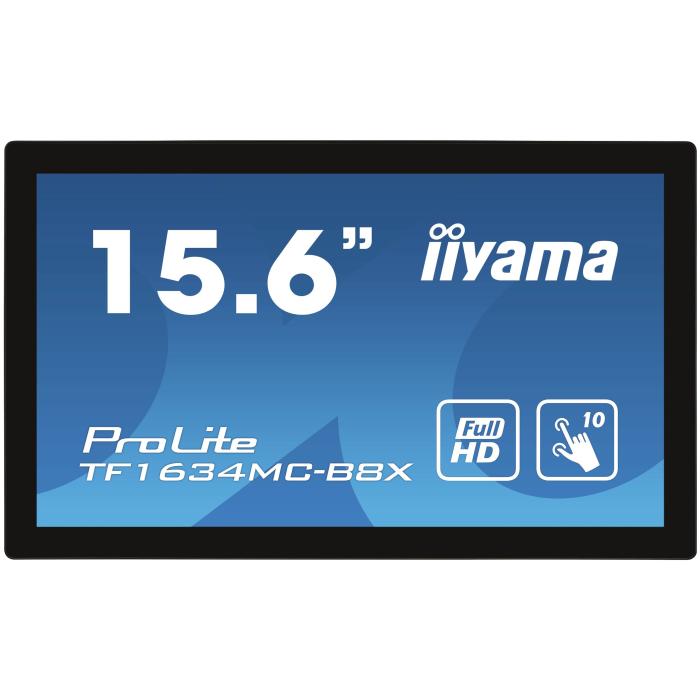

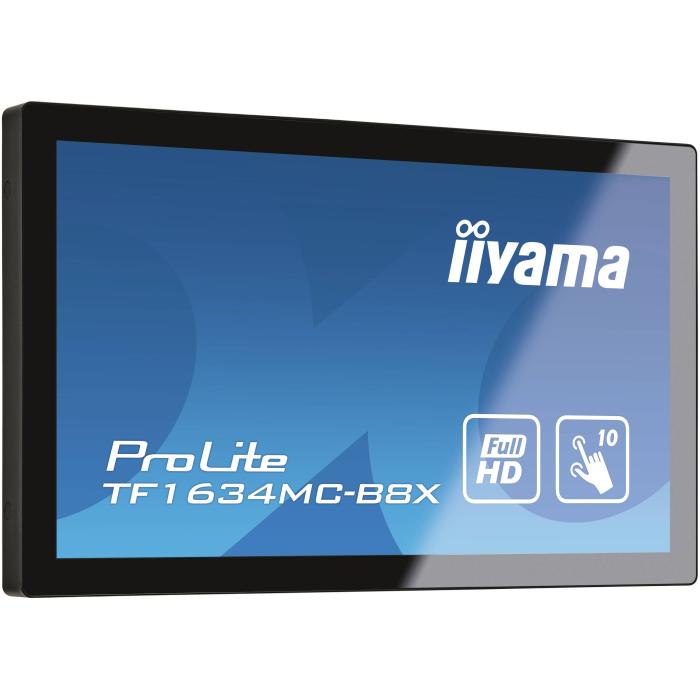

iiyama ProLite TF1634MC-B8X PC monitor 39.6 cm (15.6'') with Full HD resolution of 1920 x 1080 pixels, flat-format LED panel and native 16:9 aspect ratio. This projected capacitive touchscreen monitor supports up to 10 simultaneous touch points, enabling precise multi-user interaction. With viewing angles of 178° both horizontally and vertically, it delivers a clear image from almost any position, and its typical brightness reaches 450 cd/m² for versatile use. The 25 ms response time and maximum refresh rate of 60 Hz are designed for point-of-sale or interactive signage applications, ensuring a smooth experience in everyday tasks.
Specifications
Display
- Display brightness (typical): 450 cd/m²
- Maximum refresh rate: 60 Hz
- Viewing angle, horizontal: 178°
- Viewing angle, vertical: 178°
- Viewable size, horizontal: 34.4 cm
- Viewable size, vertical: 19.4 cm
- Display diagonal: 39.6 cm (15.6")
- Display resolution: 1920 x 1080 pixels
- HD type: Full HD
- Native aspect ratio: 16:9
- Display technology: LED
- Panel type: IPS
- Touchscreen: Yes
- Touchscreen type: Multi-user
- Touchscreen technology: Projected capacitive system
- Touch technology: Multi-touch
- Number of simultaneous touchpoints: 10
- Display brightness: 405 cd/m²
- Response time: 25 ms
- Response time measurement type: GTG (Gray to Gray)
- Screen shape: Flat
- Contrast ratio (typical): 700:1
- Display number of colours: 16.2 million colours
- Pixel pitch: 0.179 x 0.179 mm
- Horizontal scan range: 30 - 84 kHz
- Display diagonal (metric): 39.5 cm
- Surface hardness: 7H
Performance
- Palm rejection: Yes
- NVIDIA G-SYNC: No
- AMD FreeSync: No
Multimedia
- Built-in microphone: No
- Built-in camera: No
Design
- Front bezel colour: Black
- Product colour: Black
- Glass thickness: 2.4 mm

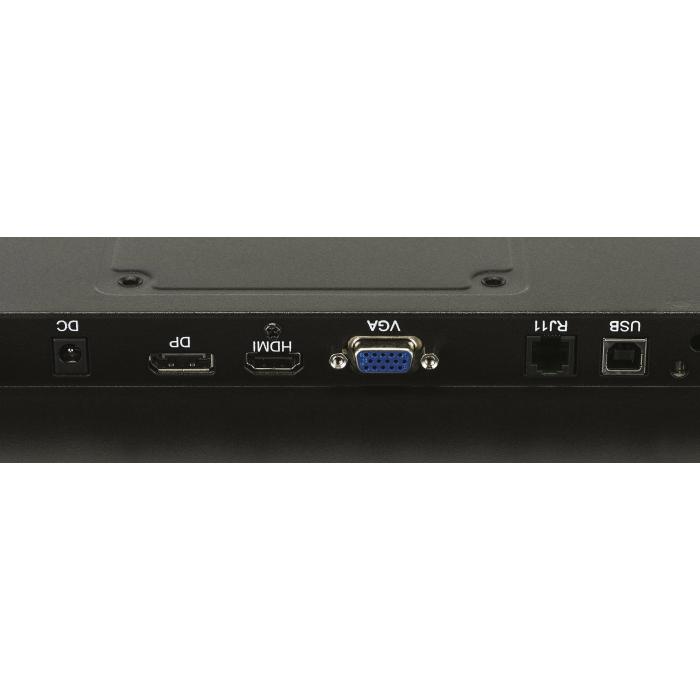

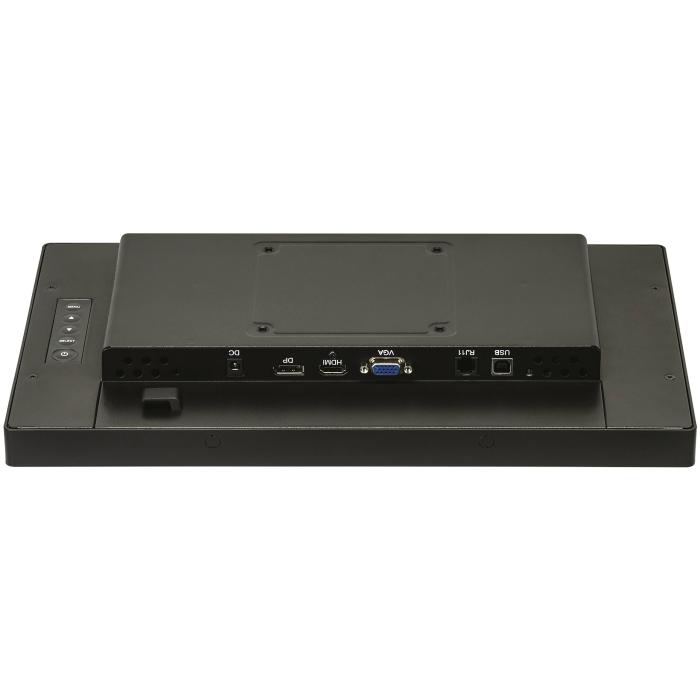

Ports & interfaces
- USB Touch port: Yes
- VGA (D-Sub) ports quantity: 1
- HDMI: Yes
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
- HDCP: Yes
Ergonomics
- On Screen Display (OSD) languages: Traditional Chinese, German, English, Spanish, French, Italian, Japanese

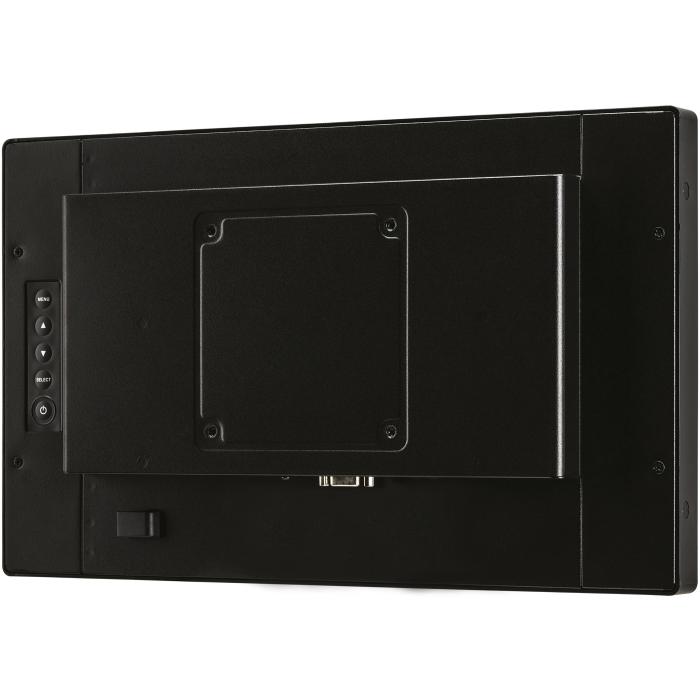

- VESA mounting: Yes
- Panel mounting interface: 100 x 100 mm
- Wall mountable: Yes
- On Screen Display (OSD): Yes
- Number of OSD languages: 7
Power
- Energy efficiency class (HDR): Not available
- AC adapter output voltage: 12 V
- Power supply type: External
- Energy efficiency class (SDR): F
- Energy consumption (SDR) per 1000 hours: 12 kWh
- Power consumption (typical): 18 W
- Power consumption (standby): 0.6 W
- Power consumption (off): 0.3 W
Weight & dimensions
- Width (with stand): 381 mm
- Depth (with stand): 46 mm
- Height (with stand): 230.5 mm
- Weight (with stand): 2 kg
- Width (without stand): 381 mm
- Depth (without stand): 46 mm
- Height (without stand): 230.5 mm
- Weight (without stand): 2 kg
Packaging data
- Package width: 455 mm
- Package depth: 290 mm
- Package height: 365 mm
- Package weight: 3.9 kg
Packaging content
- Quick start guide: Yes
- Cables included: AC, USB, HDMI, DisplayPort
Sustainability
- Sustainability certificates: ErP
Other features
- Compatible operating systems: All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch
- AC adapter included: Yes
- User controls: picture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeo
- Brightness: 405 cd/m²
- Packaging content: AC adapter
- Active display area (W x H): 344.2 x 193.6 mm
- Touch method: stylus, finger, glove (latex)
- Weight: 2 kg
- Height: 230.5 mm
- Width: 381 mm
- Depth: 46 mm

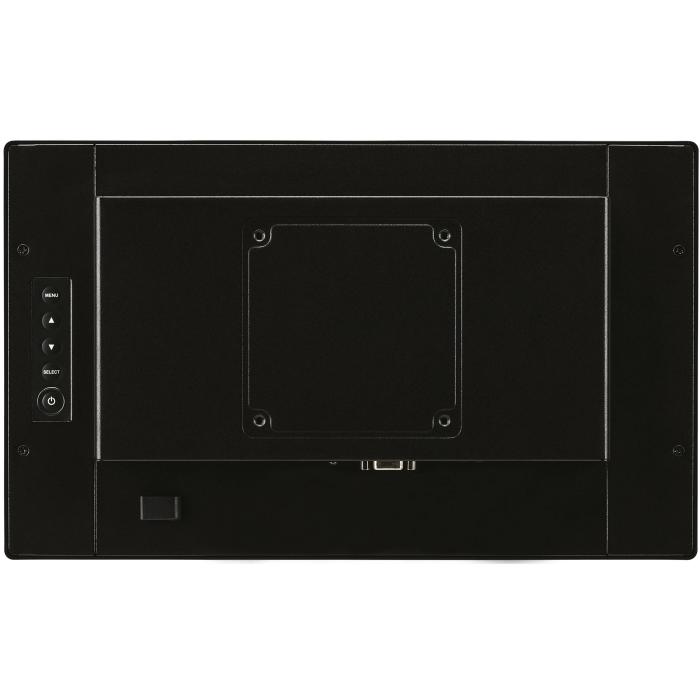

- Control panel: Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
- International Protection (IP) code: IP65
- Display viewable area (HxV): 344.2 x 193.5 mm
- Placement supported: Horizontal/Vertical
- Compliance certificates: CE, cULus, EAC, REACH, RoHS, WEEE
Logistics data
- Products per pallet: 78 pc(s)
- Pallet net width: 11.5 cm
- Pallet net length: 20.4 cm
- Pallet net height: 9.7 cm
- Harmonized System (HS) code: 85285210
