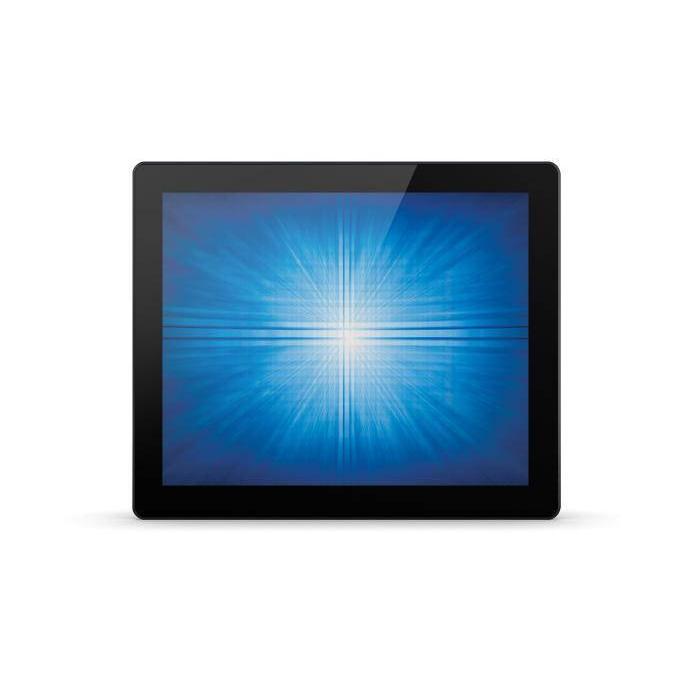

Elo Touch Solution 1790L 17'' 1280 x 1024pixels Single-touch Kiosk Black touch screen monitor
Elo Touch Solution 1790L, 43.2 cm (17"), 5 ms, 200 cd/m², LCD/TFT, 800:1, 1280 x 1024 pixels.
More infoBrand: ELO TOUCH SOLUTION
581,00 €Stock available: 0 units.
Unavailable
SKU:
77934
PRC:
143692
EAN:
815335025792
PN:
E326347
Description
Elo Touch Solution 43.2 cm (17 inch) black touch monitor, designed for healthcare and public-facing environments where a reliable screen resistant to continuous use is required. Its LCD/TFT panel offers a resolution of 1280 x 1024 pixels in 5:4 format, with a visible area of 337.92 x 270.336 mm. LED backlighting provides a brightness of 200 cd/m² and a typical contrast ratio of 800:1, enough to read clearly in lit interiors. The 5 ms response time reduces the ghosting effect in fast interactions with the touch screen. Viewing angles reach 170° horizontally and 160° vertically, so information can be seen well from different positions. The digital horizontal frequency of 30 to 82 kHz and vertical frequency of 50 to 75 Hz guarantee compatibility with standard signals. It reproduces 16.78 million colours, with a weight of 3.6 kg.
Specifications
Display
- Display diagonal: 43.2 cm (17")
- Display resolution: 1280 x 1024 pixels
- Display technology: LCD/TFT
- Viewing angle, vertical: 160°
- Viewing angle, horizontal: 170°
- Full HD: No
- Backlight type: LED
- Display number of colours: 16.78 million colours
- LED backlight: Yes
- Display viewable area (HxV): 337.92 x 270.336 mm
- Digital vertical frequency: 50 - 75 Hz
- Display brightness: 200 cd/m²
- Response time: 5 ms
- Contrast ratio (typical): 800:1
- Horizontal scan range: 30 - 82 kHz
- Vertical scan range: 50 - 75 Hz
- Digital horizontal frequency: 30 - 82 kHz
- Aspect ratio: 5:4
Design
- Colour of product: Black
Performance
- Touch technology: Single-touch
- Touchscreen type: Kiosk
- Built-in camera: No
- Mean time between failures (MTBF): 50000 h
- On Screen Display (OSD) languages: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Ports & interfaces
- USB 2.0 ports quantity: 1
- DisplayPorts quantity: 1
- VGA (D-Sub) ports quantity: 1
- HDMI ports quantity: 1
Ergonomics
- Wall mountable: Yes
- VESA mounting: Yes
- VESA mounting interfaces: 75 x 75,100 x 100 mm
Power
- Power supply type: DC
- Power consumption (typical): 17.8 W
- Power consumption (off): 0.5 W
Operational conditions
- Storage relative humidity (H-H): 10 - 95%
- Operating relative humidity (H-H): 20 - 80%
- Storage temperature (T-T): -20 - 60 °C
- Operating temperature (T-T): 0 - 40 °C
Certificates
- RoHS compliance: Yes
Weight & dimensions
- Weight: 3.6 kg
Packaging data
- Package width: 476 mm
- Package depth: 183 mm
- Package height: 418 mm
- Package weight: 5.6 kg
