Description

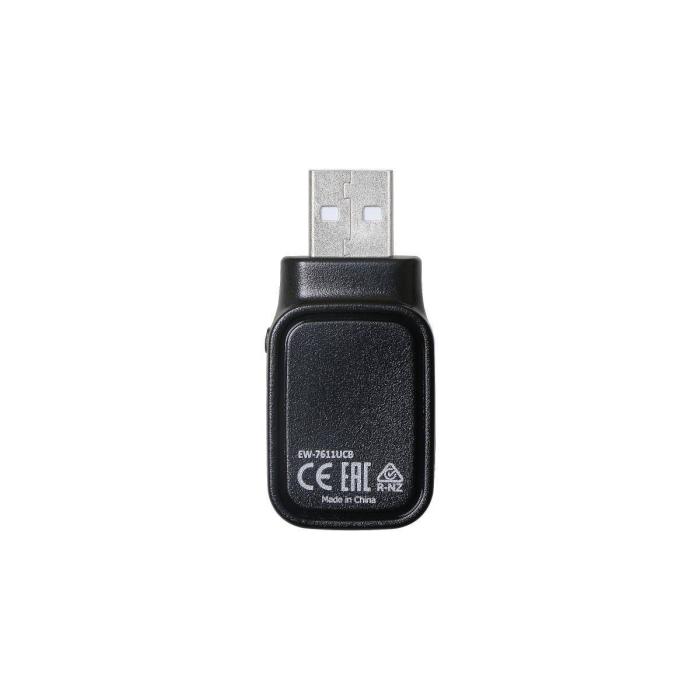

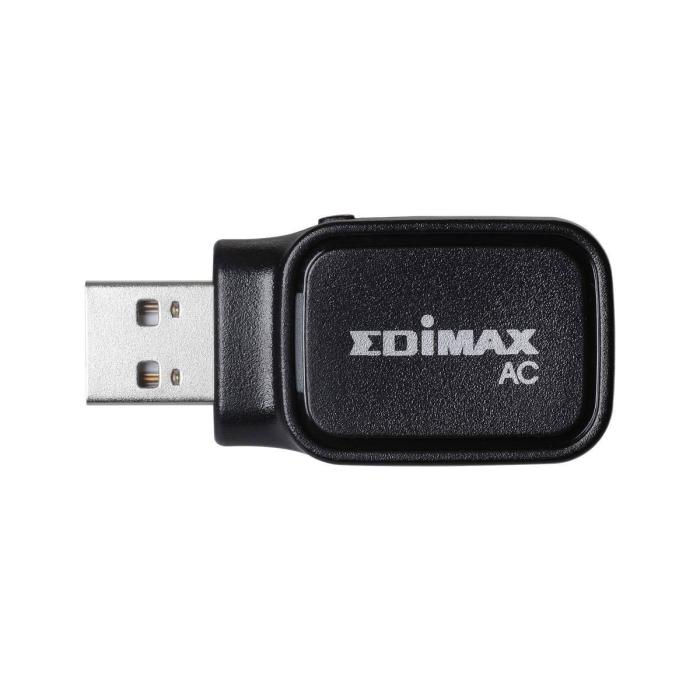

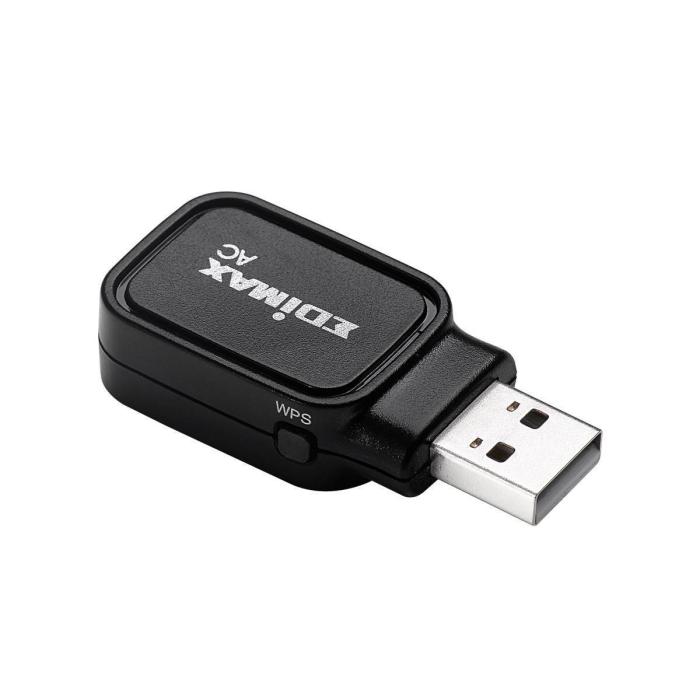

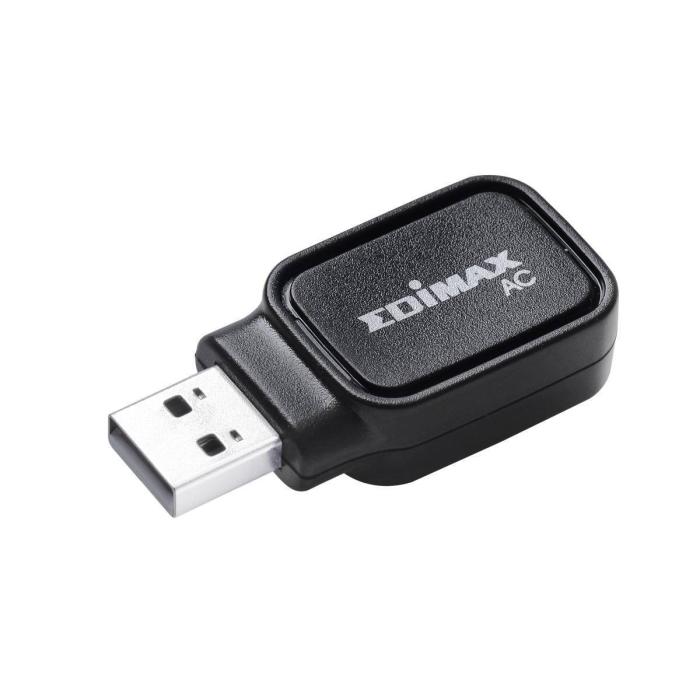

The black Edimax EW-7611UCB network adapter and card combines WLAN and Bluetooth 4.0 connectivity in an external device that connects via USB 2.0. It offers dual-band Wi-Fi (2.4 GHz and 5 GHz) with support for the 802.11a, 802.11ac, 802.11b, 802.11g and 802.11n standards, reaching transfer speeds of up to 150 and 433 Mbit/s depending on the band used. It features an integrated antenna, a WPS button for quick and secure setup, and compatibility with security protocols such as 64-bit and 128-bit WEP, WPA and WPA2, as well as CE certification. Its internal design requires no opening of the computer, making it a practical solution for adding wireless and Bluetooth networks to your PC.
Specifications
Ports & interfaces
- Connectivity technology: Wireless
- Host interface: USB
- Interface: WLAN / Bluetooth
- USB version: 2.0
Network
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Wi-Fi: Yes
- Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
- Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
- Wi-Fi standards: 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
- WLAN data transfer rates supported: 150, 433 Mbit/s
- Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA2
- Quality of Service (QoS) support: Yes
- Bluetooth version: 4.0
Design
- Product colour: Black
- Internal: No
- Antenna: Yes
- Antenna design: Internal
- WPS push button: Yes
- LED indicators: Activity, Link
- Certification: CE
Power
- USB powered: Yes
System requirements
- Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1
- Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.9 Mavericks
- Linux operating systems supported: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 90%
- Storage relative humidity (H-H): 0 - 95%
Weight & dimensions
- Width: 24 mm
- Depth: 51 mm
- Height: 11.5 mm
- Weight: 9 g
Packaging data
- Quantity per pack: 1 pc(s)
Packaging content
- Quick installation guide: Yes
Technical details
- Compliance certificates: RoHS
Other features
- Bluetooth Low Energy (BLE): Yes
- Antennas quantity: 2
