Description

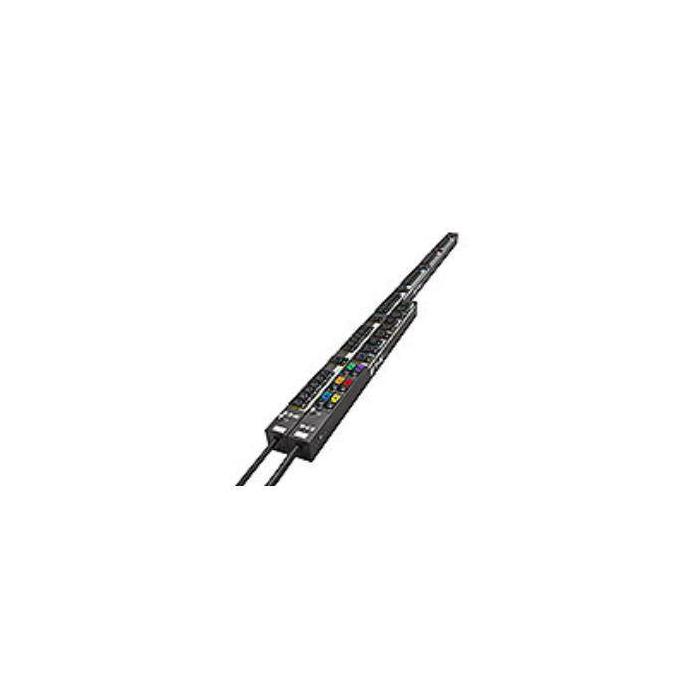

The Eaton EBAB04 power distribution unit, of the basic single-phase type, organises the power supply for equipment in rack cabinets. Its vertical mounting takes up 0U, so it is installed on the side of the rack without using up useful server space. It offers 24 AC outlets split between C13 and C19 connectors, with 20 C13 sockets and 4 C19 sockets, fed from an IEC 60309 connector. It operates with a nominal input and output voltage of 230 V, a frequency of 50 Hz and a maximum current of 16 A. It includes LED indicators and comes in black with a 3 m cable, also in a black finish. Its dimensions are 52 x 53 x 1070 mm and its weight is 2.2 kg, a compact assembly for channelling current in rack installations.
Specifications
Design
- Mounting: Vertical
- Product colour: Black
- Cable colour: Black
- PDU types: Basic
- Type: Single-phase
- Form factor: Rackmount
- Rack mounting: Yes
- Rack capacity: 0U
Ports & interfaces
- AC outlets quantity: 24 AC outlet(s)
- Power plug: IEC 60309
- AC outlet types: C13 coupler, C19 coupler
- Output connections: 20 x C13 & 4 x C19
Features
- LED indicators: Yes
- Cable length: 3 m
Power
- Nominal input voltage: 230 V
- AC input frequency: 50 Hz
- Maximum current: 16 A
- Nominal output voltage: 230 V
- Maximum input current per phase: 16 A
- Maximum power: 3700 W
Weight & dimensions
- Width: 52 mm
- Depth: 1070 mm
- Dimensions (WxDxH): 52 x 1070 x 53 mm
- Height: 53 mm
- Weight: 2.2 kg
Packaging data
- Package weight: 3.2 kg
Packaging content
- Rack mount kit: Yes
Operational conditions
- Operating temperature (T-T): 0 - 60 °C
Technical details
- Sustainability certificates: RoHS
