Description

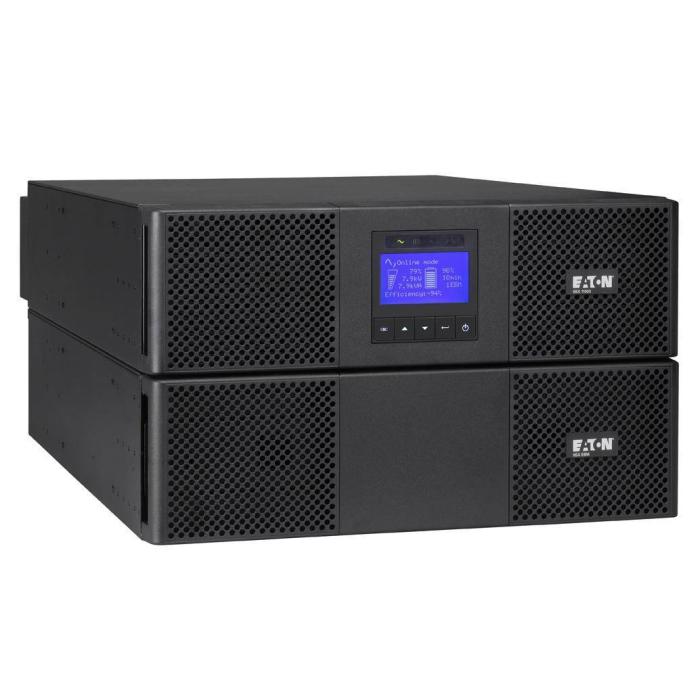

The Eaton 9SX11KiRT is an 11 kVA 10000 W output power UPS, designed to protect critical equipment with an efficiency of 98%. It regulates the output voltage with a precision of 1% and maintains a total harmonic distortion of 2% on the output, while the input current has a THD of 5%. It operates with a wide input voltage range of 100 to 276 V and a frequency of 40/70 Hz, supporting a maximum current of 150 A. It provides an adjustable output voltage between 200 and 250 V, with a crest factor of 3:1 and a noise level of 50 dB. It includes an RS-232 port, a USB 2.0 port and terminal connectors for the AC output, facilitating integration into professional environments.
Specifications
Features
- Output power capacity: 11 kVA
- Output power: 10000 W
- Input operation voltage (min): 100 V
- Input operation voltage (max): 276 V
- Input frequency: 40/70 Hz
- Output operation voltage (min): 200 V
- Output operation voltage (max): 250 V
- Output voltage regulation: 1%
- Maximum current: 150 A
- Efficiency: 98%
- Crest factor: 3:1
- Output voltage Total Harmonic Distortion (THD): 2%
- Input current Total Harmonic Distortion (THD): 5%
- Noise level: 50 dB
Ports & interfaces
- AC outlet types: Terminal
- Power plug: Terminal
- USB 2.0 ports quantity: 1
- RS-232 ports: 1
Battery
- Typical backup time at half load: 9 min
- Automatic battery test: Yes
Design
- Form factor: Rackmount/Tower
- Rack capacity: 6U
- Product colour: Black
- Display type: LCD
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Safety regulation & standards
- Safety: EN 62040-1, UL 1778, CSA 22.2
Sustainability
- Sustainability certificates: ENERGY STAR
Weight & dimensions
- Width: 260 mm
- Depth: 700 mm
- Height: 440 mm
- Weight: 86 kg
Other features
- Number of phases: 1
