Description

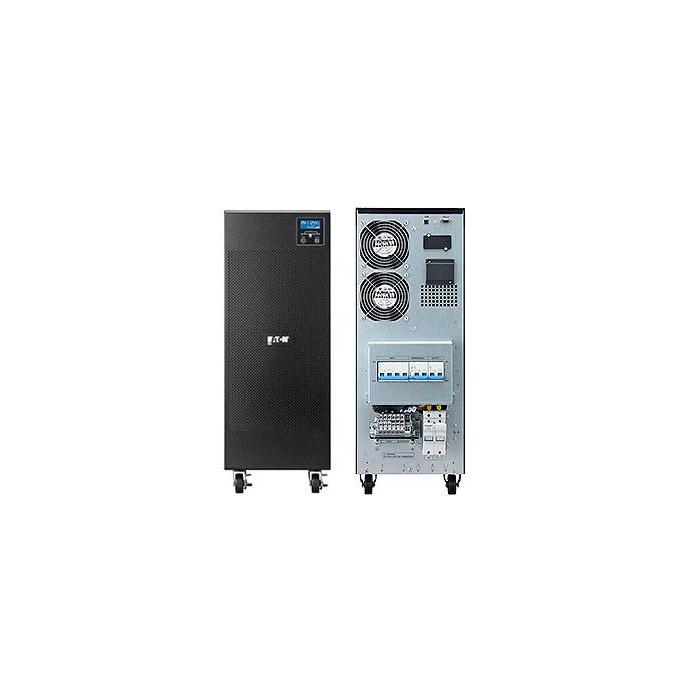

The Eaton 9E 10000I is a double-conversion online UPS that delivers an output power of 8000 W and a capacity of 1 kVA, designed to protect critical equipment in professional environments. This uninterruptible power supply regulates the output voltage between 220 V and 240 V, with an input frequency of 45/66 Hz and a total harmonic distortion of 3% on the input current. It handles overloads of 150% for 3 seconds, 130% for 1 minute and 110% for 10 minutes, with a noise level of 55 dB. It features a USB 2.0 port and an RS-232 connection, while its AC outputs are of terminal type, supporting a maximum current of 137 A for demanding loads.
Specifications
Features
- UPS topology: Double-conversion (Online)
- Output power capacity: 1 kVA
- Output power: 8000 W
- Input operation voltage (min): 176 V
- Input operation voltage (max): 276 V
- Input frequency: 45/66 Hz
- Output operation voltage (min): 220 V
- Output operation voltage (max): 240 V
- Maximum current: 137 A
- Overload capacity (10 minutes): 110%
- Overload capacity (1 minute): 130%
- Overload capacity (3 seconds): 150%
- Input current Total Harmonic Distortion (THD): 3%
- Noise level: 55 dB
Ports & interfaces
- AC outlet types: Terminal
- USB port: Yes
- USB 2.0 ports quantity: 1
- RS-232 ports: 1
Design
- Form factor: Tower
- Product colour: Black
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Certificates
- Certification: CE, CB report (TUV)
Weight & dimensions
- Width: 262.4 mm
- Depth: 612.9 mm
- Height: 708.5 mm
- Weight: 85.4 kg
