Description

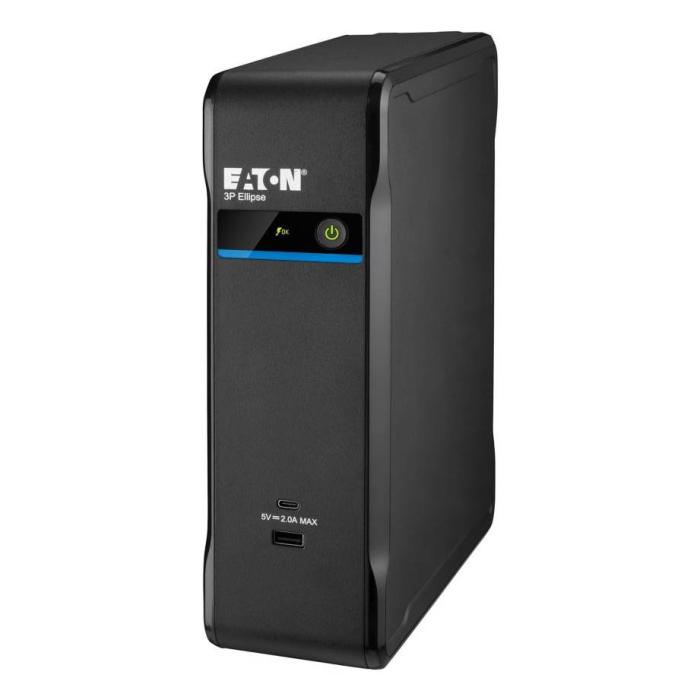

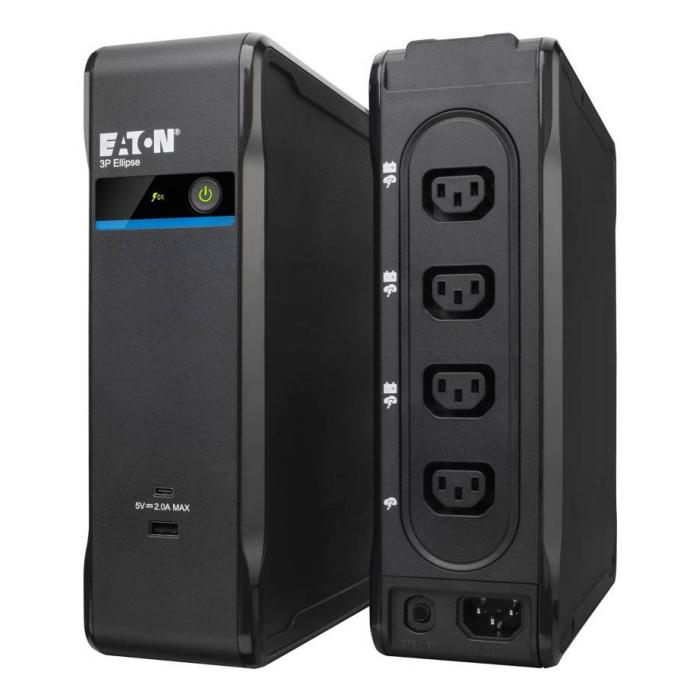

The Eaton 3P700UI is a UPS with standby (offline) topology that provides 0.7 kVA and 420 W of output power, with four AC outlets to protect your essential equipment. It supports an input voltage between 161 and 284 V in a single phase, maintaining a stable output within that range, and features overload protection and automatic shutdown for added safety. Its efficiency reaches 97%, both in normal and ECO mode, with an average consumption of only 13 W, and it produces a progressive waveform with a noise level of 25 dB. Its output power factor is 0.6 and it operates with an input frequency of 46/70 Hz, ideal for environments requiring basic backup without complications.
Specifications
Features
- UPS topology: Standby (Offline)
- Output power capacity: 0.7 kVA
- Output power: 420 W
- Waveform: Stepwise
- Input operation voltage (min): 161 V
- Input operation voltage (max): 284 V
- Input frequency: 46/70 Hz
- Output operation voltage (min): 161 V
- Output operation voltage (max): 284 V
- Output frequency: 50/60 Hz
- Power consumption (average operating): 13 W
- Number of input phases: 1
- Number of output phases: 1
- Efficiency: 97%
- Efficiency (ECO mode): 97%
- Output power factor: 0.6
- Noise level: 25 dB
- Surge protection: Yes
- Auto shut-off: Yes
Ports & interfaces

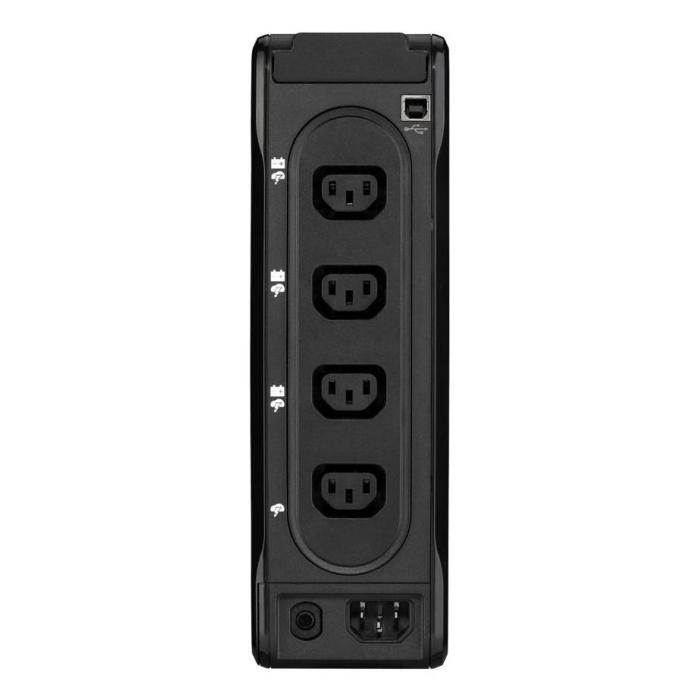

- AC outlet types: C3 coupler
- AC outlets quantity: 4 AC outlet(s)
- USB port: Yes
- USB 2.0 ports quantity: 2
- USB port type: USB Type A/USB Type-C
- Ethernet LAN (RJ-45) ports: 1

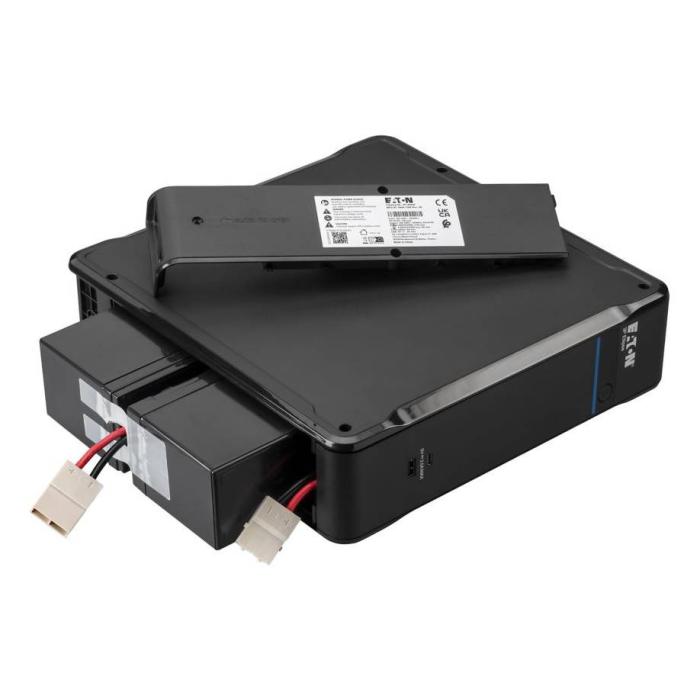

Battery
- Battery capacity: 7 Ah
- Battery voltage: 12 V
Design

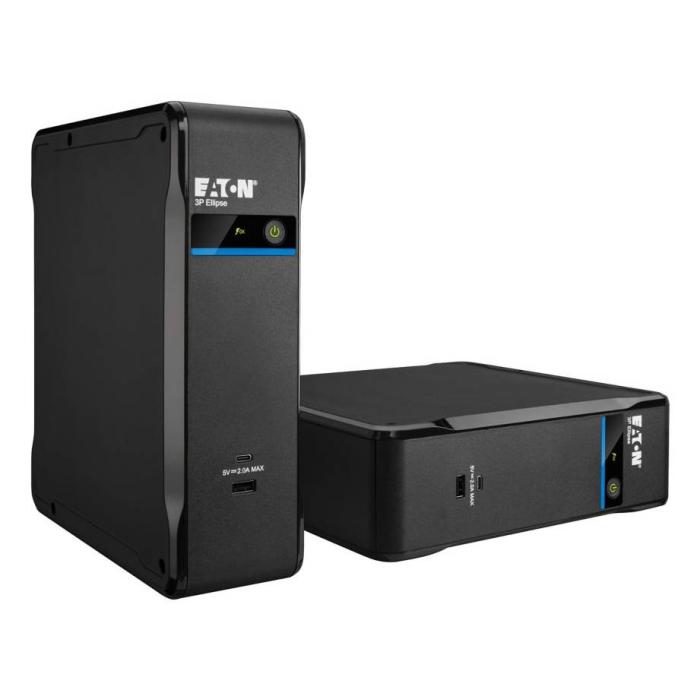

- Form factor: Tower
- Product colour: Black

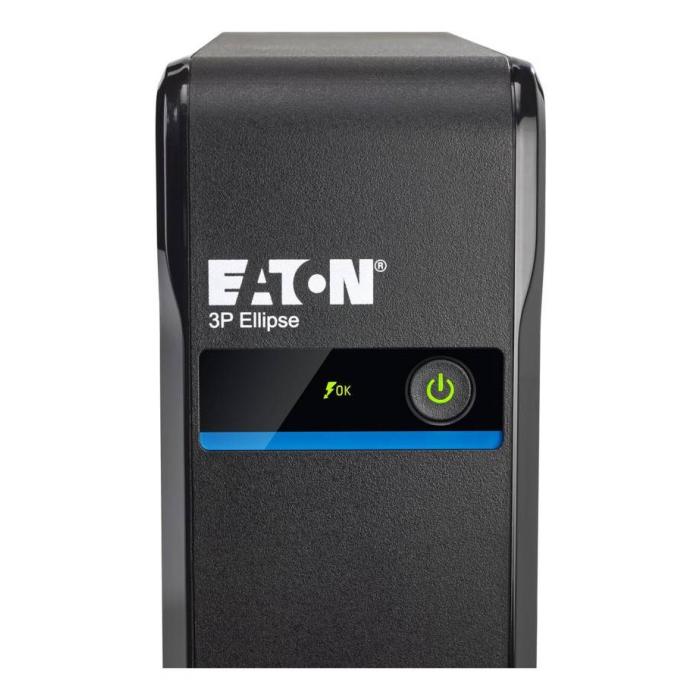

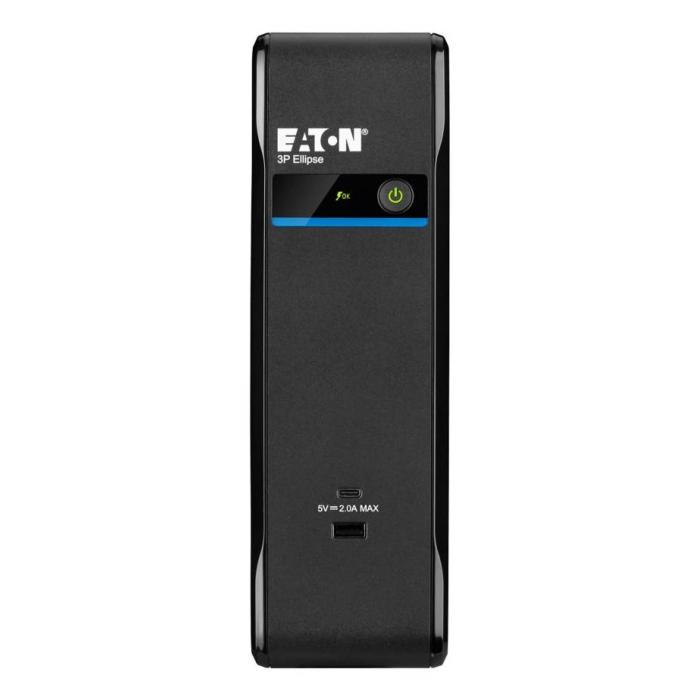

- Display type: LED
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Certificates
- Waste Electrical and Electronic Equipment (WEEE) compliance: Yes
- Compliance certificates: CB, CE, RoHS, WEEE
- Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 CE UKCA Ukr Cm
Packaging content
- Cables included: USB cable
- Quick installation guide: Yes
Weight & dimensions
- Width: 81 mm
- Depth: 235 mm
- Height: 263 mm
- Weight: 3.9 kg
Packaging data
- Package type: Box
Other features
- Input connection type: C14
- Nominal input voltage: 220-240 V
- Relative humidity: 0 - 95%
