Description

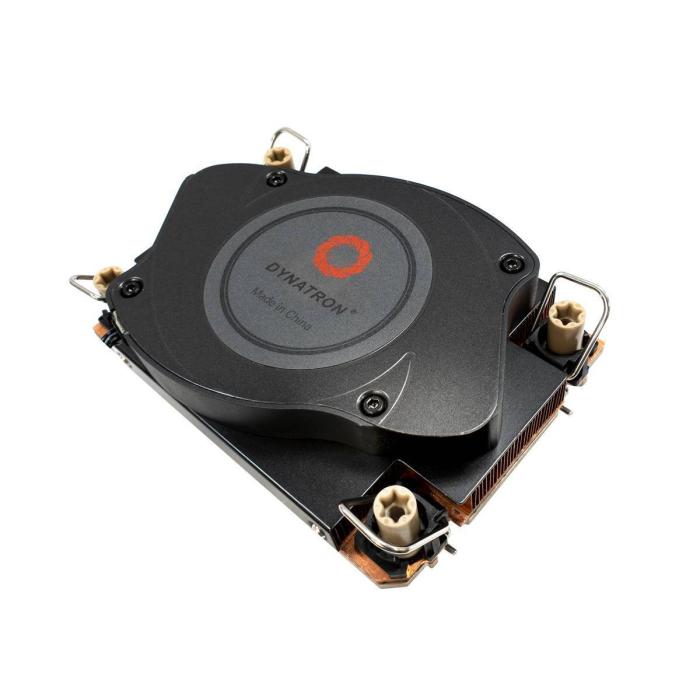

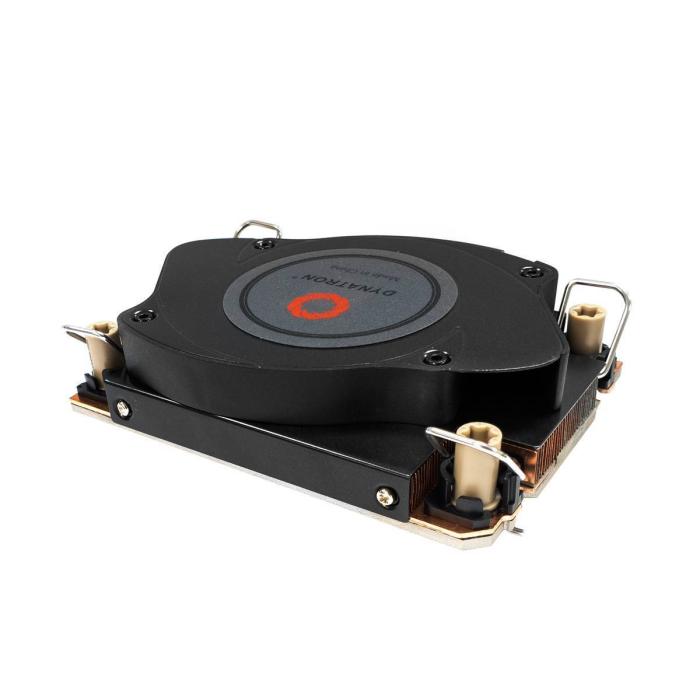

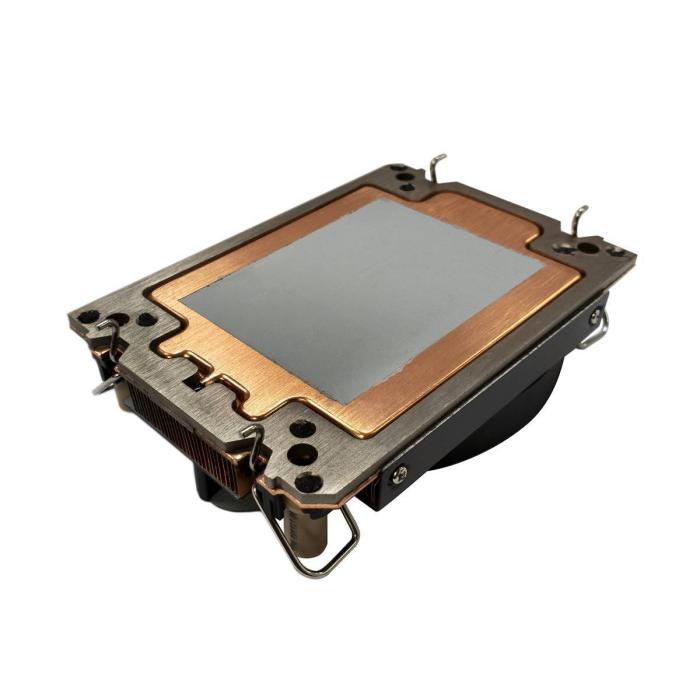

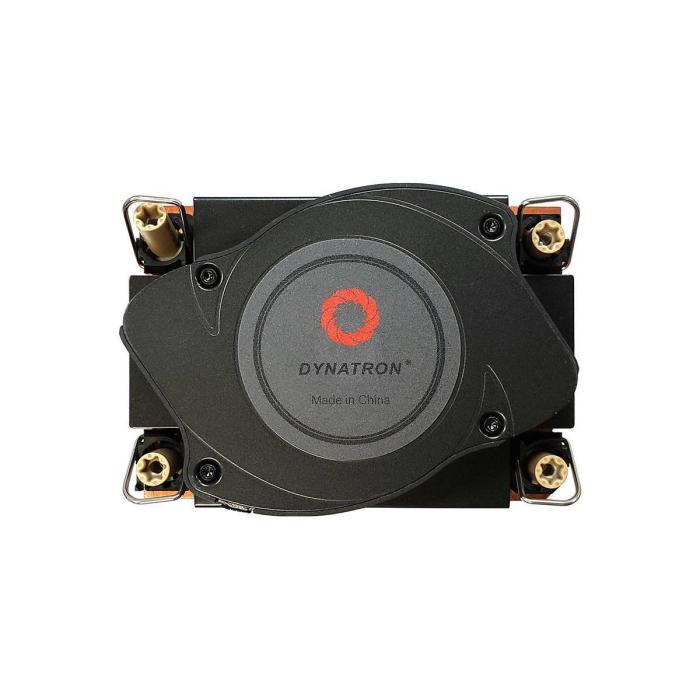

Dynatron N3 air cooler in black, designed for Intel® Xeon® processors with LGA 4189 socket, includes an 8 cm fan with dual-row ball bearing and PWM control to adjust speed between 2000 and 8600 RPM. This CPU cooling system generates a maximum airflow of 26.25 cfm and pressure up to 89.8 mmH2O, with noise levels ranging from 23.3 dB at low speed to 62.2 dB at high. The unit comes as a single piece, and its air cooler construction ensures efficient thermal dissipation for server environments.
Specifications
Performance
- Suitable location: Processor
- Type: Air cooler
- Fan diameter: 8 cm
- Supported processor sockets: LGA 4189
- Compatible processor series: Intel® Xeon®
- Number of speeds: 3
- Rotational speed (min): 2000 RPM
- Rotational speed (max): 8600 RPM
- Noise level (low speed): 23.3 dB
- Noise level (high speed): 62.2 dB
- Minimum airflow (imperial): 5.59 cfm
- Maximum airflow: 26.25 cfm
- Minimum air pressure: 3.69 mmH2O
- Maximum air pressure: 89.8 mmH2O
- Pulse-width modulation (PWM) support: Yes
- Bearing type: Ball bearing
- Fan noise level (min): 23.3 dB
- Fan noise level (max): 62.2 dB
- Fan bearing technology: Double ball bearing
- Quantity per pack: 1 pc(s)
Design
- Product colour: Black
- Material: Copper, Plastic, Steel
- Number of fans: 1 fan(s)
- Fins material: Copper
- Fan connector: 4-pin
- Rack capacity: 1U
Power
- Power supply: 23.45 W
- Voltage: 12 V
- Thermal Design Power (TDP): 205 W
Weight & dimensions
- Width: 80 mm
- Depth: 113 mm
- Height: 27 mm
- Weight: 410 g
- Fan thickness: 1.3 cm
Technical details
- Compliance certificates: RoHS, WEEE
Other features
- Thermal grease: Yes
