Description

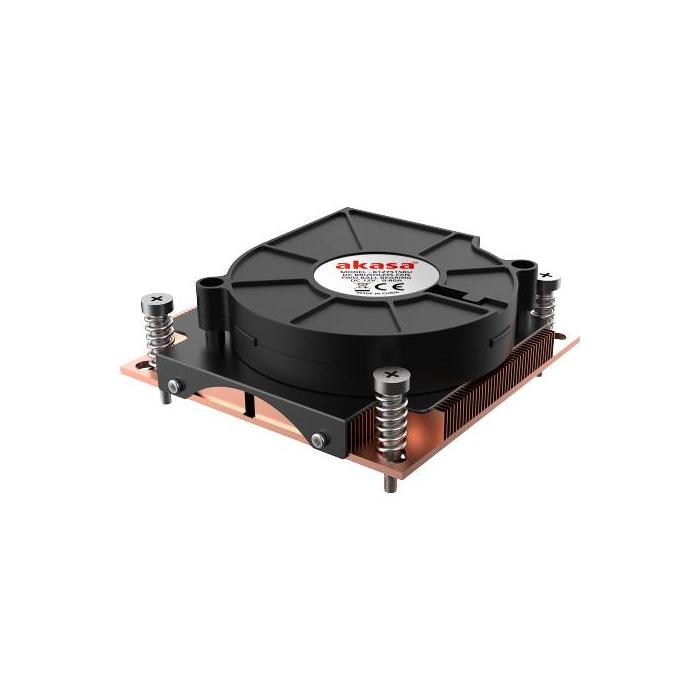

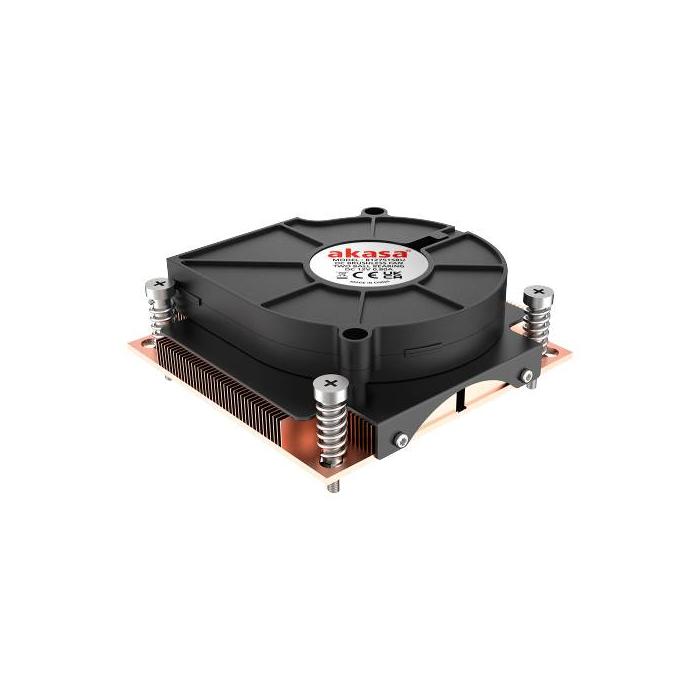

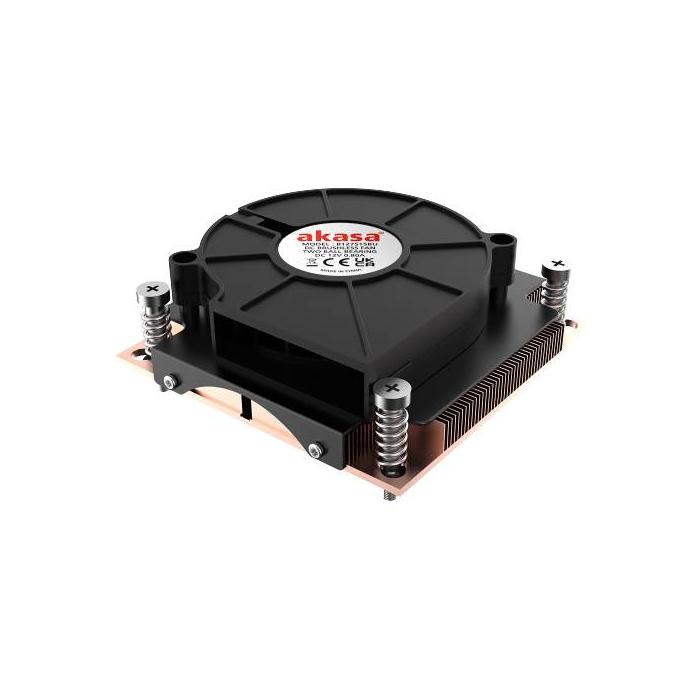

Akasa AK-CC7401BP01 black air cooler with reference AK-CC7401BP01, a tower-type model designed for processors and featuring a single 7.5 cm fan that operates with a double-row ball bearing. Its 4-pin connector enables pulse-width modulation (PWM), with a rotation range from 1200 RPM to 5500 RPM, achieving a maximum airflow of 11.83 cfm and a minimum pressure of 20.66 mmH2O. Noise level varies between 18 dB at low speed and 45.99 dB at high speed, while its radiator uses copper material for dissipation. This set includes a single piece and is designed for 1U rack mounts, offering a compact solution for servers.
Specifications
Performance
- Suitable location: Processor
- Type: Air cooler
- Fan diameter: 7.5 cm
- Supported processor sockets: LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 775 (
- Noise level (low speed): 18 dB
- Noise level (high speed): 45.99 dB
- Maximum airflow: 11.83 cfm
- Minimum air pressure: 20.66 mmH2O
- Pulse-width modulation (PWM) support: Yes
- Bearing type: Dual ball bearing
- Fan bearing technology: Double ball bearing
- Quantity per pack: 1 pc(s)
- Fan speed (min): 1200 RPM
- Fan speed (max): 5500 RPM
Design
- Product colour: Black
- Radiator material: Copper
- Number of fans: 1 fan(s)
- Fan connector: 4-pin
- Rack capacity: 1U
Power
- Thermal Design Power (TDP): 95 W
- Fan voltage: 12 V
Weight & dimensions
- Width: 88 mm
- Depth: 87 mm
- Height: 30.5 mm
- Weight: 447 g
- Fan dimensions (W x D x H): 77 x 75 x 15 mm
Packaging content
- Mounting kit: Yes
- CPU bracket(s): Yes
Other features
- Product life: 80000 h
