Description

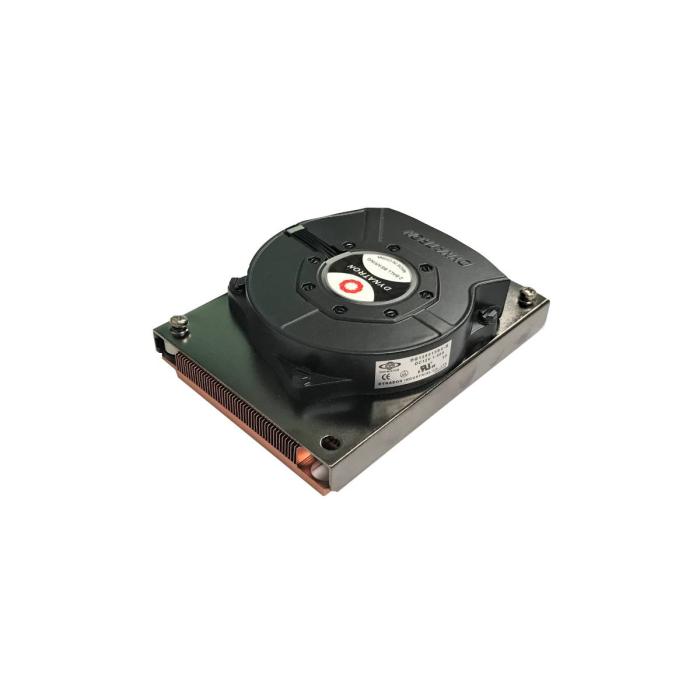

Dynatron B3 air cooler in khaki colour, designed for Intel® Xeon® W and Xeon Phi™ processors on socket LGA 3647 (P), featuring an 8 cm fan with ball bearings. Its adjustable rotation speed between 1000 and 7000 RPM provides an airflow of 3 to 21 cfm, with a maximum static pressure of 70.9 mmH2O, ideal for dissipating heat under demanding loads. PWM compatible, this processor cooling system produces between 16 dB and 57.1 dB of noise depending on the speed, allowing a balance between performance and acoustics. Includes one piece and is RoHS and REACH certified, offering an effective solution for maintaining stable temperatures in workstations and servers.
Specifications
Performance
- Suitable location: Processor
- Type: Air cooler
- Fan diameter: 8 cm
- Supported processor sockets: LGA 3647 (Socket P)
- Compatible processor series: Intel® Xeon Phi™, Intel Xeon W
- Rotational speed (min): 1000 RPM
- Rotational speed (max): 7000 RPM
- Noise level (low speed): 16 dB
- Noise level (high speed): 57.1 dB
- Minimum airflow (imperial): 3 cfm
- Maximum airflow: 21 cfm
- Minimum air pressure: 1.5 mmH2O
- Maximum air pressure: 70.9 mmH2O
- Pulse-width modulation (PWM) support: Yes
- Bearing type: Ball bearing
- Quantity per pack: 1 pc(s)
Design
- Product colour: Khaki
- Material: Aluminium, Copper, Plastic
- Radiator material: Aluminum
- Base plate material: Copper
- Number of fans: 1 fan(s)
- Fan connector: 4-pin
- Rack capacity: 1U
- Certification: RoHS, REACH
Power
- Power consumption (typical): 19.2 W
- Rated voltage: 12 V
Weight & dimensions
- Width: 107 mm
- Depth: 80.5 mm
- Height: 20 mm
- Weight: 460 g
- Fan dimensions (W x D x H): 80 x 80 x 15 mm
Technical details
- Compliance certificates: RoHS
