Description

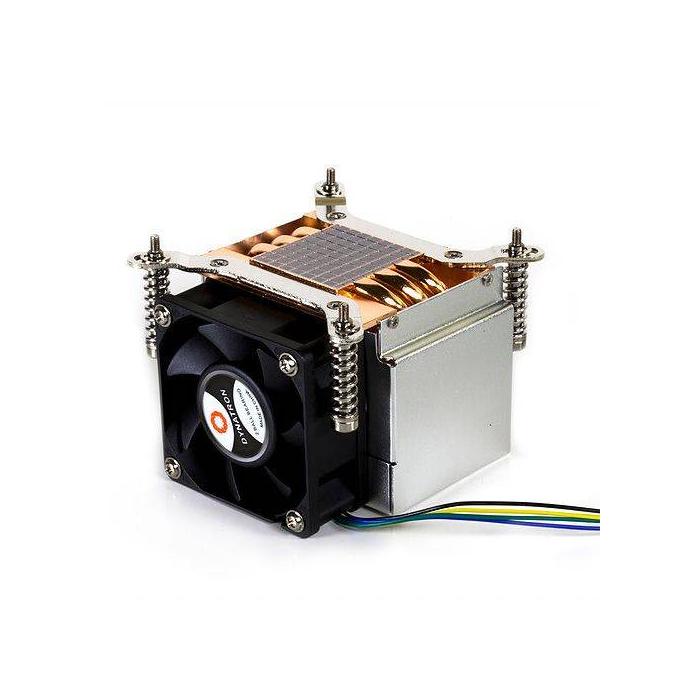

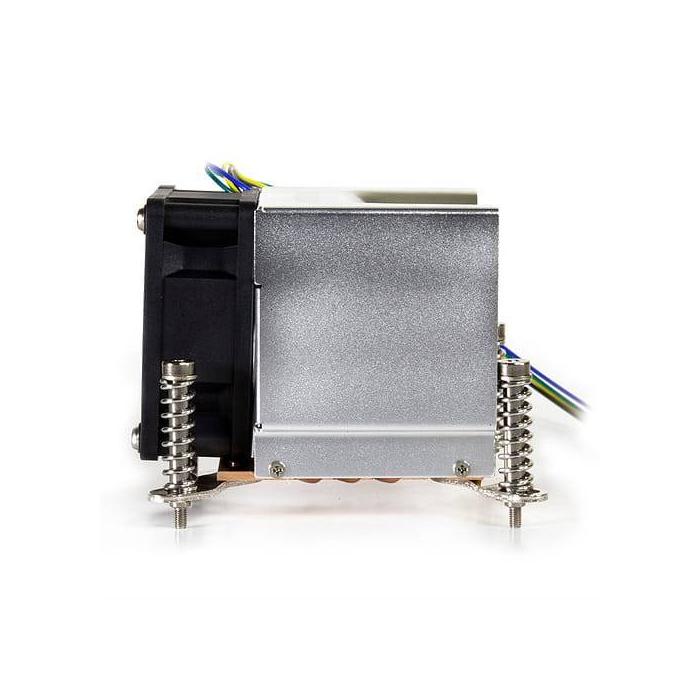

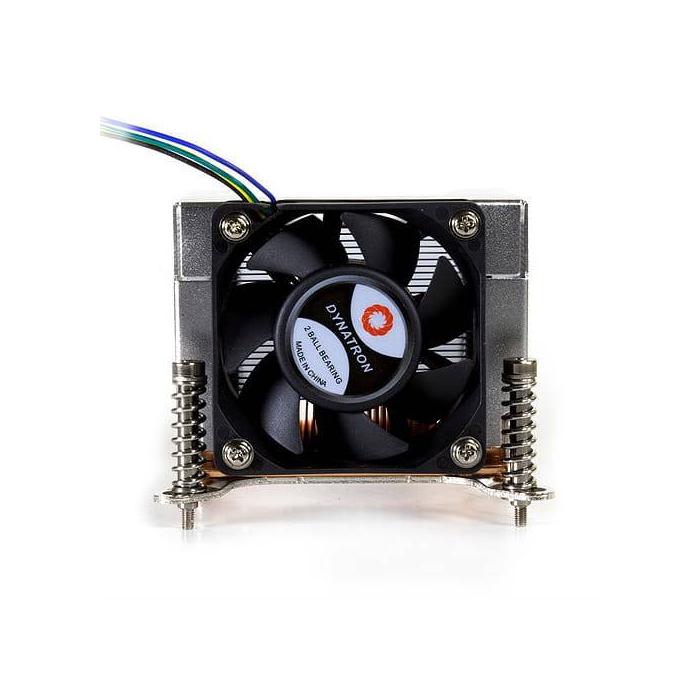

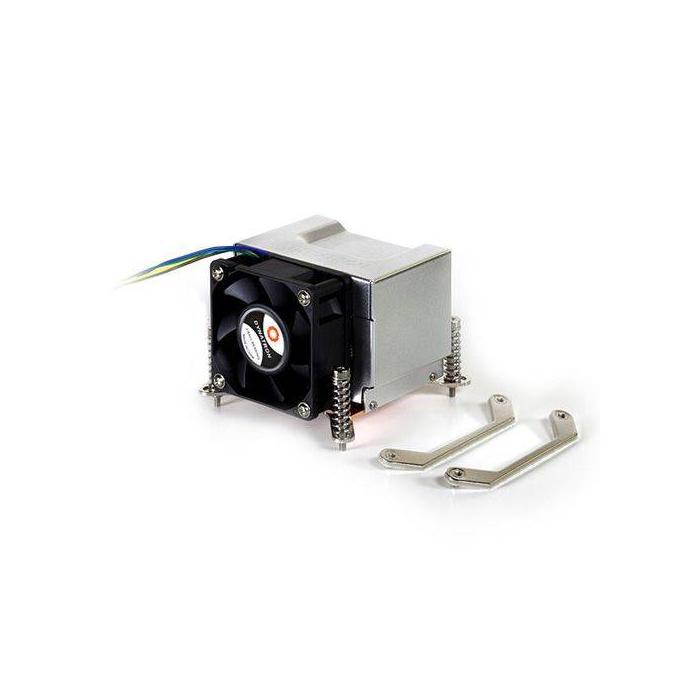

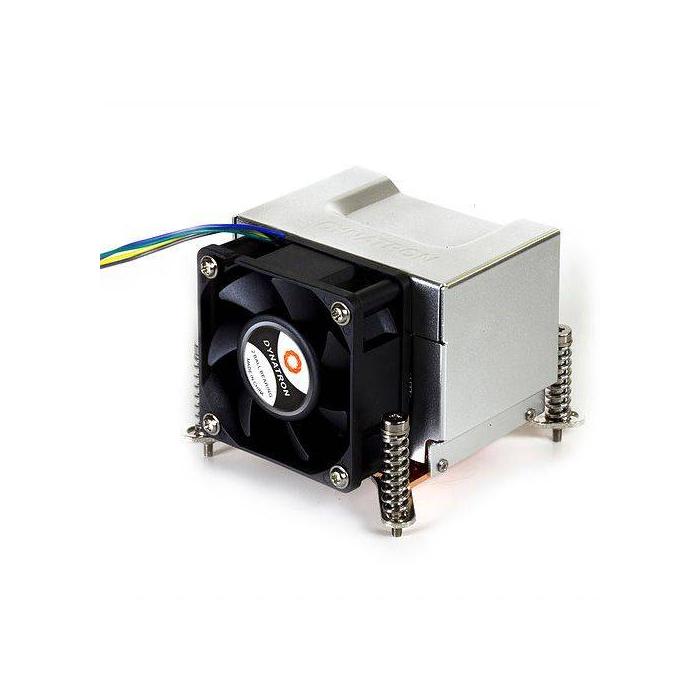

Dynatron K666R1 air cooler in black, single-piece design, specifically engineered for Intel Xeon processors and compatible with LGA 1150, 1151, 1155, 1156 and 1200 sockets. This cooling system includes a 6 cm fan with dual-row ball bearing, offering three adjustable speeds between 1600 and 5000 RPM via PWM control, with a maximum airflow of 26.45 cfm and a maximum static pressure of 7.32 mmH2O. Its noise level ranges from 13.8 dB at low speed to 38.7 dB at maximum power, allowing you to fine-tune the balance between performance and acoustics based on system load.
Specifications
Performance
- Noise level (high speed): 38.7 dB
- Minimum airflow (imperial): 8.5 cfm
- Maximum airflow: 26.45 cfm
- Minimum air pressure: 0.75 mmH2O
- Maximum air pressure: 7.32 mmH2O
- Pulse-width modulation (PWM) support: Yes
- Bearing type: Ball bearing
- Fan bearing technology: Double ball bearing
- Quantity per pack: 1 pc(s)
- Suitable location: Processor
- Type: Air cooler
- Fan diameter: 6 cm
- Supported processor sockets: LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5)
- Compatible processor series: Intel® Xeon®
- Number of speeds: 3
- Rotational speed (min): 1600 RPM
- Rotational speed (max): 5000 RPM
- Noise level (low speed): 13.8 dB
Design
- Product colour: Aluminium, Black
- Material: Aluminium, Copper, Plastic
- Base plate material: Copper
- Number of fans: 1 fan(s)
- Fins material: Aluminium
- Number of heat pipes: 3
- Fan connector: 4-pin
- Rack capacity: 2U
Power
- Power supply: 3 W
- Voltage: 12 V
- Thermal Design Power (TDP): 125 W
Weight & dimensions
- Width: 85 mm
- Depth: 90.7 mm
- Height: 64 mm
- Weight: 500 g
- Fan dimensions (W x D x H): 60 x 60 x 25 mm
- Fan thickness: 2.5 cm
Technical details
- Compliance certificates: RoHS, WEEE
Other features
- Thermal grease: Yes
