Description

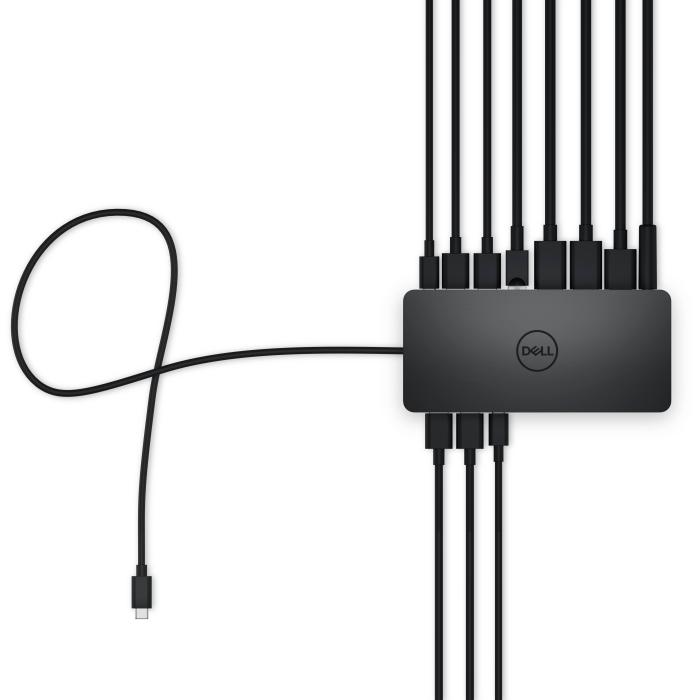

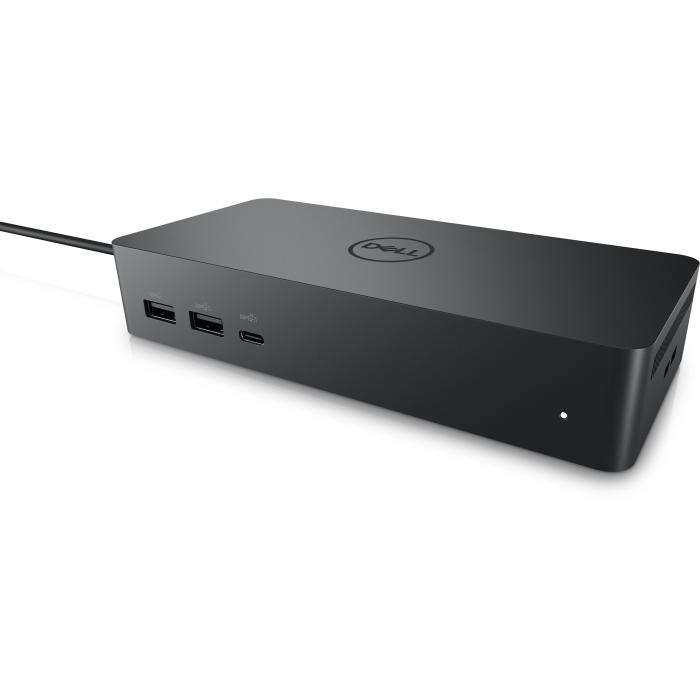

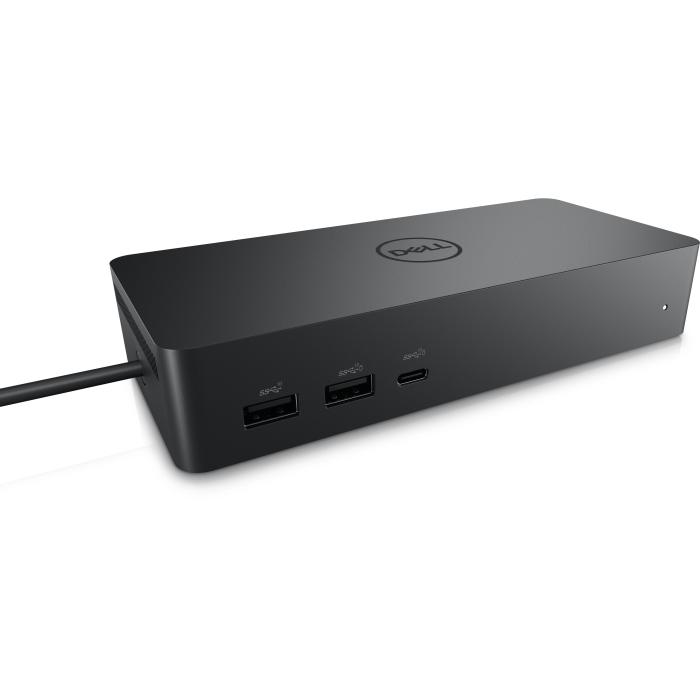

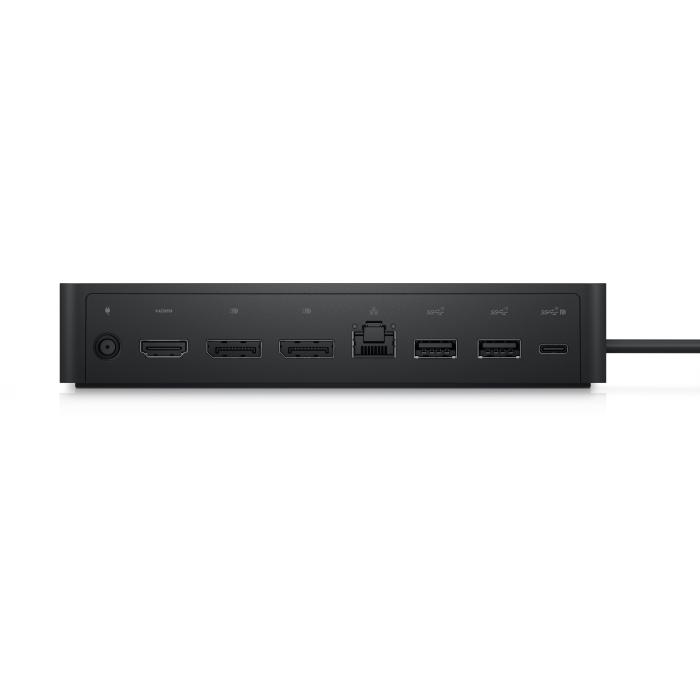

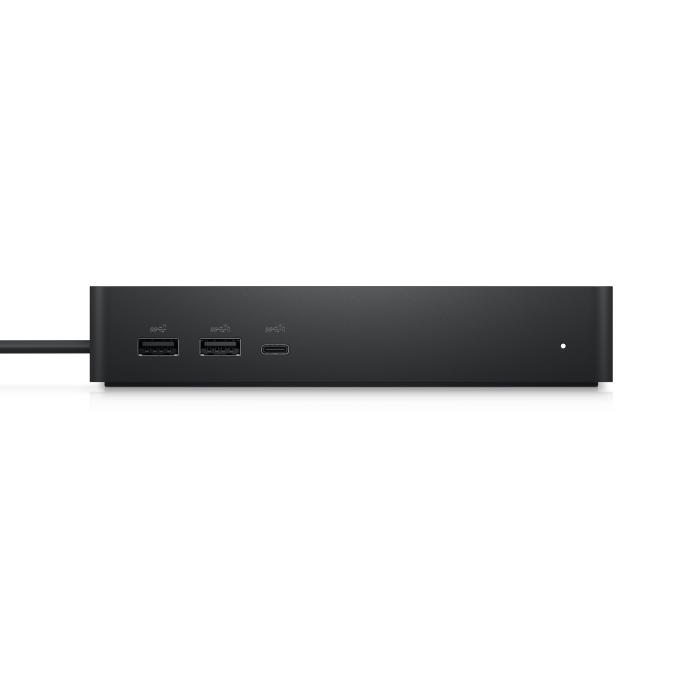

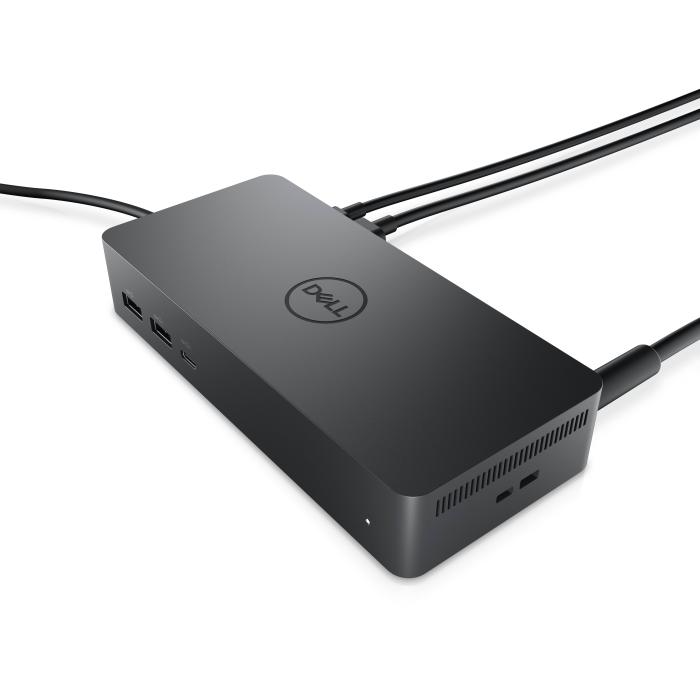

The Dell Universal Dock UD22 is a black docking station that expands your laptop's connectivity via a USB 3.2 Gen 2 Type-C host interface. It features four USB Type-A ports and two USB Type-C ports, both USB 3.2 Gen 2, plus two PowerShare USB ports with power delivery. For displays it has one HDMI 2.0 port and two DisplayPort 1.4, with support for USB Type-C DisplayPort Alternate Mode. Its USB Power Delivery reaches 96 W and follows revision 3.0, and it includes a DC power input connector. Network connection is handled by an Ethernet LAN RJ-45 port. All in a device weighing 416 g with dimensions of 76 x 32 x 166 mm (width x height x depth), designed to set up a complete workstation.
Specifications
Ports & interfaces
- Connectivity technology: Docking
- Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
- PowerShare: Yes
- Number of USB ports with PowerShare support: 2
- USB Power Delivery (USB PD): Yes
- USB Power Delivery revision: 3.0
- USB Power Delivery up to: 96 W
- HDMI ports quantity: 1
- HDMI version: 2.0
- DisplayPorts quantity: 2
- DisplayPort version: 1.4
- Microphone in: No
- DC-in jack: Yes
- USB Type-C DisplayPort Alternate Mode: Yes
Network
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
Performance
- Card reader integrated: No
- Maximum digital resolution: 5120 x 2880 pixels
- Cable lock slot: Yes
- Cable lock slot type: Kensington
- VESA mounting: Yes
- Maximum VESA mount: 100 x 100 mm
- Product colour: Black
- LED indicators: Yes
Power
- Power source type: DC
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Input current: 2.5 A
- Power supply: 130 W
- Output voltage: 19.5 V
- Output current: 6.67 A
Software
- Windows operating systems supported: Windows 10, Windows 11
- Mac operating systems supported: MacOS
- Linux operating systems supported: Ubuntu 20.04 LTS
- Other operating systems supported: ChromeOS
Operational conditions
- Operating temperature (T-T): 0 - 35 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 10 - 80%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 76 mm
- Depth: 166 mm
- Height: 32 mm
- Weight: 416 g
Packaging content
- Cables included: USB Type-C
- AC adapter included: Yes
- Quick start guide: Yes
Logistics data
- Harmonized System (HS) code: 84733020
