Description

Intel Xeon E-2336 (12MB Cache, 2.9GHz), 16GB DDR4-SDRAM, 960GB SSD, LAN (Broadcom 5720), PERC H755, iDRAC9, Enterprise 15G, 700W, No OS

Specifications

Processor


  • Processor manufacturer: Intel
  • Processor family: Intel Xeon E
  • Processor model: E-2336
  • Processor frequency: 2.9 GHz
  • Processor boost frequency: 4.8 GHz
  • Processor cores: 6
  • Processor cache: 12 MB
  • Number of processors installed: 1
  • Processor threads: 12

Memory


  • Internal memory: 16 GB
  • Internal memory type: DDR4-SDRAM
  • Buffered memory type: Unregistered (unbuffered)
  • Memory slots: 4x DIMM
  • ECC: Yes
  • Memory layout (slots x size): 1 x 16 GB
  • Memory data transfer rate: 3200 MT/s
  • Maximum internal memory: 128 GB

Storage


  • Total storage capacity: 960 GB
  • Number of SSDs installed: 2
  • SSD capacity: 480 GB
  • SSD interface: SATA III
  • SSD size: 2.5"
  • Supported SSD sizes: 3.5"
  • Number of SSDs supported: 8
  • RAID support: No
  • Supported RAID controllers: PERC H755
  • Hot-Plug support: Yes
  • Optical drive type: No
  • Storage drive adapter included: Yes
  • Storage drive adapter type: 2.5" - 3.5"

Network


  • LAN controller: Broadcom 5720
  • Ethernet LAN: Yes
  • Cabling technology: 10/100/1000Base-T(X)
  • Ethernet interface type: Gigabit Ethernet

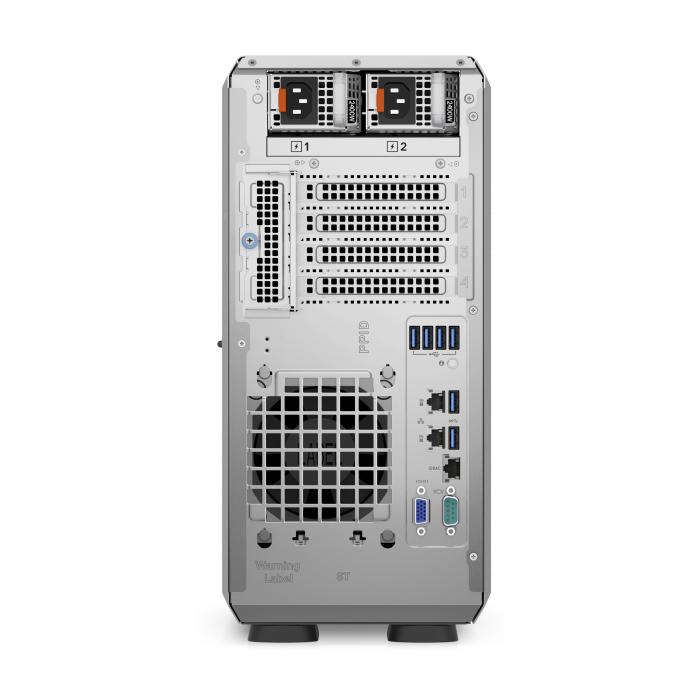

Ports & interfaces


  • Ethernet LAN (RJ-45) ports: 2
  • USB 2.0 ports quantity: 5
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
  • VGA (D-Sub) ports quantity: 1
  • Parallel ports quantity: 1
  • Power cables quantity: 1

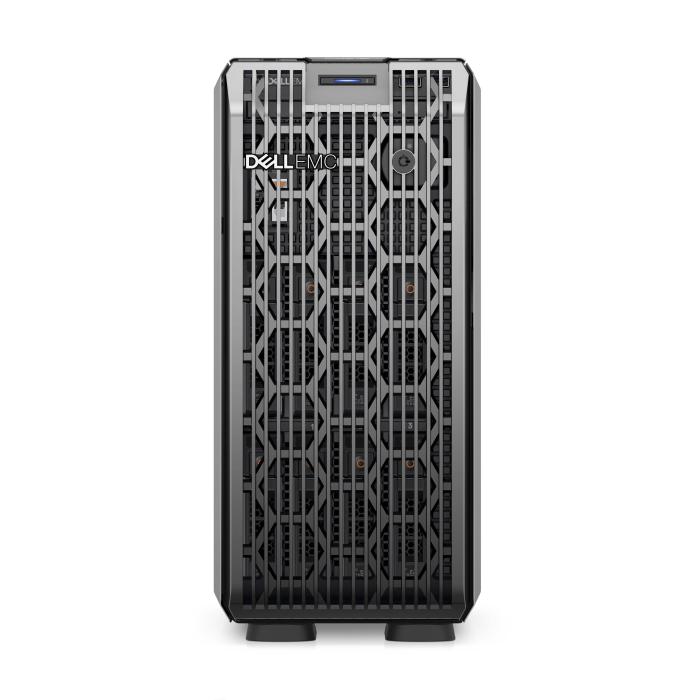

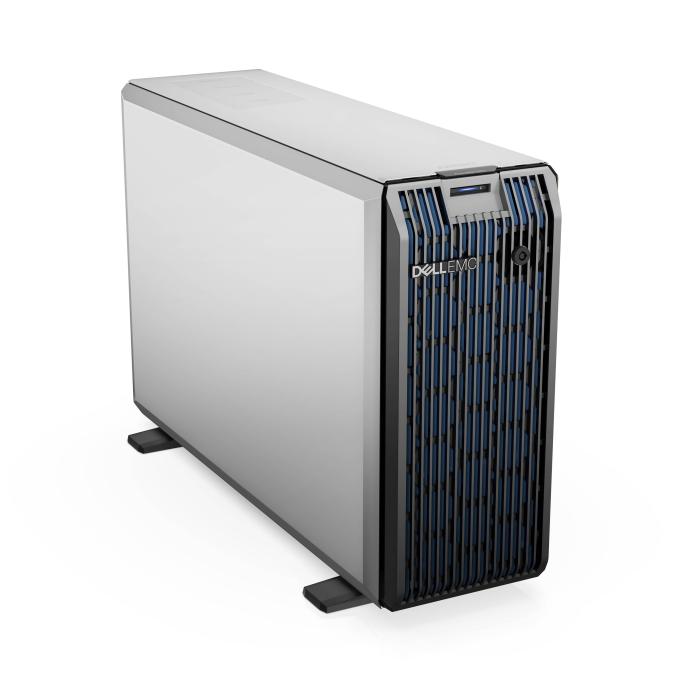

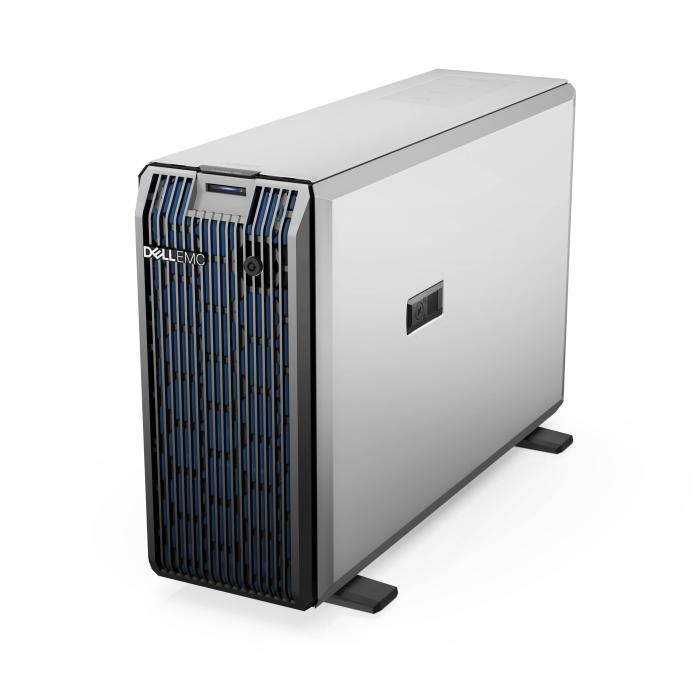

Design


  • Chassis type: Tower
  • Product colour: Black
  • Bezel: Yes

Performance


  • Remote administration: iDRAC9, Enterprise 15G
  • Trusted Platform Module (TPM): Yes
  • Trusted Platform Module (TPM) version: 2.0

Software


  • Operating system installed: No
  • Compatible operating systems: Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterpr

Power


  • Redundant power supply (RPS) support: No
  • Power supply: 700 W
  • Number of main power supplies: 1
  • Power supply input voltage: 200 - 240 V
  • Power cable length: 2 m
  • Power cable connector 1: C13 coupler
  • Power cable current: 10 A

Operational conditions


  • Operating temperature (T-T): 10 - 35 °C
  • Storage temperature (T-T): -40 - 65 °C
  • Storage relative humidity (H-H): 5 - 95%
  • Operating altitude: 0 - 3048 m
  • Non-operating altitude: 0 - 12000 m

Carbon footprint


  • Total carbon footprint (kg of CO2e): 2310
  • Total carbon emissions, standard deviation (kg of CO2e): 999
  • Carbon emissions, manufacturing (kg of CO2e): 453
  • Carbon emissions, logistics (kg of CO2e): 198
  • Carbon emissions, energy usage (kg of CO2e): 1630
  • Carbon emissions, end-of-life (kg of CO2e): 31
  • Total carbon emissions, w/o use phase (kg of CO2e): 682
  • PAIA version: 1.3.2, 2022

Weight & dimensions


  • Width: 175 mm
  • Depth: 581.1 mm
  • Height: 369.5 mm
  • Weight: 25.3 kg

Packaging content


  • Packaging content: European Power Cord 220V

Other features


  • Data transfer rate: 6 Gbit/s
  • Bytes per sector: 512
