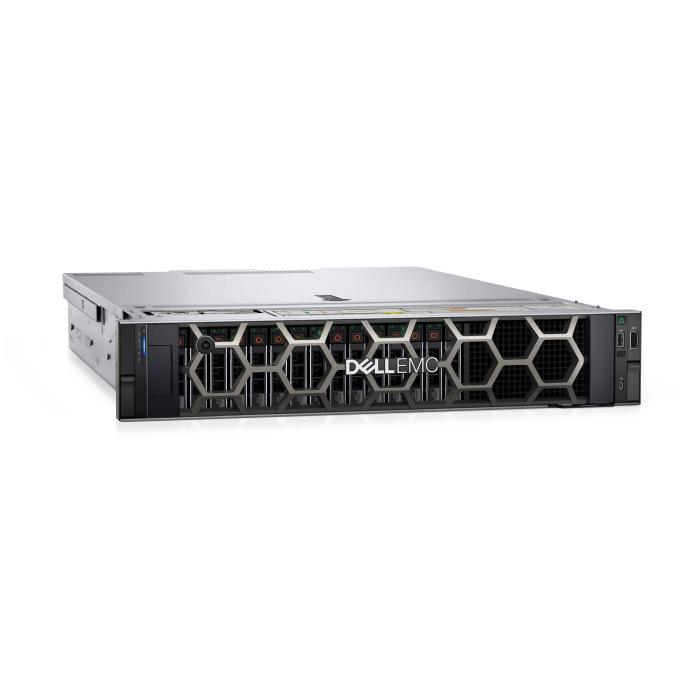

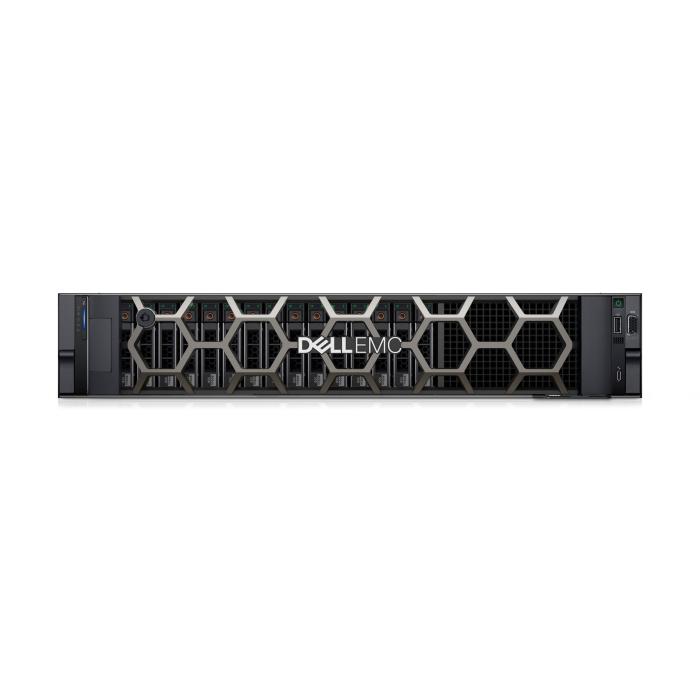

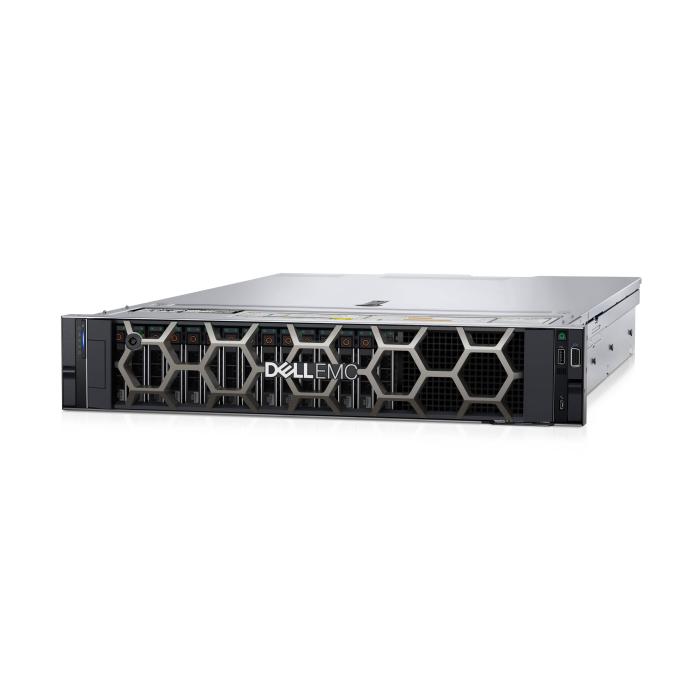

DELL PowerEdge R550 server 480 GB Rack (2U) Intel Xeon Silver 4309Y 2.8 GHz 16 GB DDR4-SDRAM 1100 W

$3,643.03
$3,643.03 without VAT

DELL PowerEdge R550 server 480 GB Rack (2U) Intel Xeon Silver 4309Y 2.8 GHz 16 GB DDR4-SDRAM 1100 W.   More info

Brand: DELL
SKU: 104210 PRC: 497566 EAN: 5397184760734 PN: KJN4Y

Description

Intel Xeon Silver 4309Y (12MB Cache, 2.8GHz), 16GB DDR4-SDRAM (2933MHz), 480GB SSD, LAN (Broadcom 57412), PERC H755, iDRAC9, Enterprise 15G, 2 x 1100W, No OS

Specifications

Processor

  • Processor manufacturer: Intel
  • Processor family: Intel Xeon Silver
  • Processor generation: 3rd Generation Intel® Xeon® Scalable
  • Processor model: 4309Y
  • Processor frequency: 2.8 GHz
  • Processor boost frequency: 3.6 GHz
  • Efficient-core base frequency: 0.0028 GHz
  • Performance-core base frequency: 2.8 GHz
  • Processor cores: 8
  • Processor cache: 12 MB
  • Number of processors installed: 1
  • System bus rate: 10.4 GT/s
  • Processor threads: 16
  • Maximum internal memory supported by processor: 512 GB

Memory

  • Internal memory: 16 GB
  • Internal memory type: DDR4-SDRAM
  • Buffered memory type: Registered (buffered)
  • Memory ranking: 2
  • Memory slots: 16x DIMM
  • Memory clock speed: 2933 MHz
  • Memory layout (slots x size): 1 x 16 GB
  • Memory data transfer rate: 3200 MT/s
  • Maximum internal memory: 1 TB

Storage

  • Total storage capacity: 480 GB
  • Number of SSDs installed: 1
  • SSD capacity: 480 GB
  • SSD interface: SATA III
  • SSD size: 2.5"
  • RAID support: Yes
  • Supported RAID controllers: PERC H755
  • Hot-Plug support: Yes
  • Optical drive type: No
  • Internal drive bays: 8
  • Supported storage drive interfaces: SAS, Serial ATA
  • Drive writes per day (DWPD): 1

Network

  • LAN controller: Broadcom 57412
  • Ethernet LAN: Yes
  • Cabling technology: 10/100/1000Base-T(X)
  • Ethernet interface type: 10 Gigabit Ethernet

Ports & interfaces

  • Ethernet LAN (RJ-45) ports: 2
  • USB 2.0 ports quantity: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
  • VGA (D-Sub) ports quantity: 2

Design

  • Chassis type: Rack (2U)
  • Product colour: Black
  • Rack rails: Yes
  • Bezel: Yes

Performance

  • Remote administration: iDRAC9, Enterprise 15G

Software

  • Operating system installed: No
  • Compatible operating systems: Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterpri

Power

  • Redundant power supply (RPS) support: Yes
  • Power supply: 1100 W
  • Number of redundant power supplies supported: 2
  • Number of redundant power supplies installed: 2
  • Power supply input voltage: 100 - 240 V
  • Power cable length: 2 m
  • Power cable connector 1: C13 coupler
  • Power cable connector 2: C14 coupler
  • Power cable current: 12 A

Operational conditions

  • Operating temperature (T-T): 10 - 35 °C
  • Storage temperature (T-T): -40 - 65 °C
  • Operating relative humidity (H-H): 8 - 80%
  • Storage relative humidity (H-H): 5 - 95%
  • Operating altitude: 0 - 3048 m
  • Non-operating altitude: 0 - 12000 m

Carbon footprint

  • Total carbon footprint (kg of CO2e): 8790
  • Total carbon emissions, standard deviation (kg of CO2e): 4760
  • Carbon emissions, manufacturing (kg of CO2e): 1018
  • Carbon emissions, logistics (kg of CO2e): 162
  • Carbon emissions, energy usage (kg of CO2e): 7580
  • Carbon emissions, end-of-life (kg of CO2e): 26
  • Total carbon emissions, w/o use phase (kg of CO2e): 1206
  • PAIA version: 1.3.2, 2022

Weight & dimensions

  • Width: 482 mm
  • Depth: 721.7 mm
  • Height: 86.8 mm

Technical details

  • Supported storage drives form factor (internal): 3.5"

Other features

  • Data transfer rate: 6 Gbit/s
  • Bytes per sector: 512
