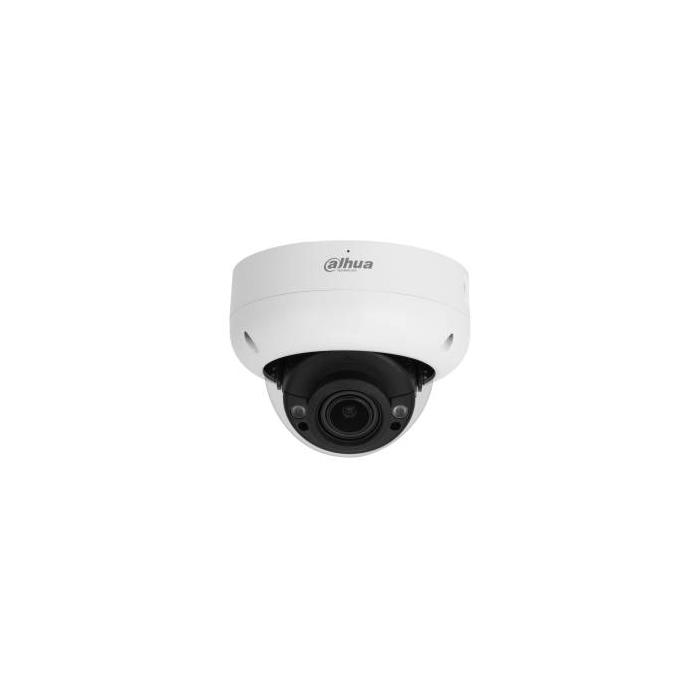

Name: Dahua Technology WizSense IPC-HDBW3541R-ZS-S2 Dome IP security camera Indoor & outdoor 2960 x 1668 pixels Ceiling/wall
Brand: DAHUA TECHNOLOGY
Price: 196 EUR
Availability: InStock

Dahua Technology WizSense IPC-HDBW3541R-ZS-S2 Dome IP security camera Indoor & outdoor 2960 x 1668 pixels Ceiling/wall

196.00 €

161.98 € without VAT

Amount

Brand: DAHUA TECHNOLOGY

SKU: 119263 PRC: 461245 EAN: 6923172542359 PN: dh-ipc-hdbw3541rp-zs-27135-s2

Description

Dahua Technology WizSense IPC-HDBW3541R-ZS-S2, IP security camera, Indoor u0026 outdoor, Wired, CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC..., Ceiling/wall, Black, White

Specifications

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Certification: CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL623

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: Black, White
Housing material: Metal
International Protection (IP) code: IP67
IK code: IK10
Fog proof: Yes

Camera

Camera pan control: Yes
Camera tilt control: Yes
Minimum illumination: 0.005 lx
Angle of rotation: 355°
Lens viewing angle, horizontal: 114 - 32°
Lens viewing angle, vertical: 58 - 17°
Lens viewing angle, diagonal: 138 - 36°
Tilt angle range: 0 - 80°
Pan range: 0 - 355°
White balance: Auto, Manual, Natural, Outdoor, Regional custom, Street lamp
Camera shutter type: Electronic
Camera shutter speed: 1/3 - 1/100000 s
Adjustment shutter speed: Auto/Manual
Number of Privacy masking areas: 4

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Sensor type: CMOS

Lens system

Number of lenses: 1
Focal length range: 2.7 - 13.5 mm
Focus: Motorized
Maximum aperture number: 1.5
Detect distance (wide): 64 m
Detect distance (tele): 210 m
Observe distance (wide): 25.6 m
Observe distance (tele): 84 m
Recognize distance (wide): 12.8 m
Recognize distance (tele): 42 m
Identify distance (wide): 6.4 m
Identify distance (tele): 21 m

Night vision

Night vision: Yes
LED type: IR
Number of illumination LEDs: 3

Video

Maximum resolution: 2960 x 1668 pixels
Total megapixels: 5 MP
Video formats supported: H.264, H.264B, M-JPEG
Supported graphics resolutions: 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536
Frame rate: 30 fps
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Gain control type: Auto
Privacy masking: Yes
Image stabilizer: Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate: H.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps
Back Light Compensation (BLC): Yes
Highlight Compensation (HLC): Yes
Region of Interest (ROI) encoding: Yes
Smart IR: Yes

Audio

Audio input channels: 1.0 channels
Audio output channels: 1.0 channels
Built-in microphone: Yes
Voice codecs: G.711Mu, G.711a, G.723, G.726, PCM

Network

Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.3af
Supported network protocols: IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP;
Wi-Fi: No
Bluetooth: No
Number of users: 20 user(s)
Quality of Service (QoS) support: Yes
Streaming method: Multicast

Storage

Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 256 GB
Internal memory: 512 MB
ROM capacity: 128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Management features

Web-based management: Yes
Web browser: Yes
Behavior analysis: Intrusion detection

Power

Power source type: DC, PoE
Power consumption (Power over Ethernet (PoE)): 4.9 W
DC output voltage: 12

System requirements

Mobile operating systems supported: Android, iOS

Weight & dimensions

Height: 122 mm
Diameter: 9.4 cm
Weight: 713 g

Packaging data

Package weight: 986 g

Packaging content

Number of cameras: 1
