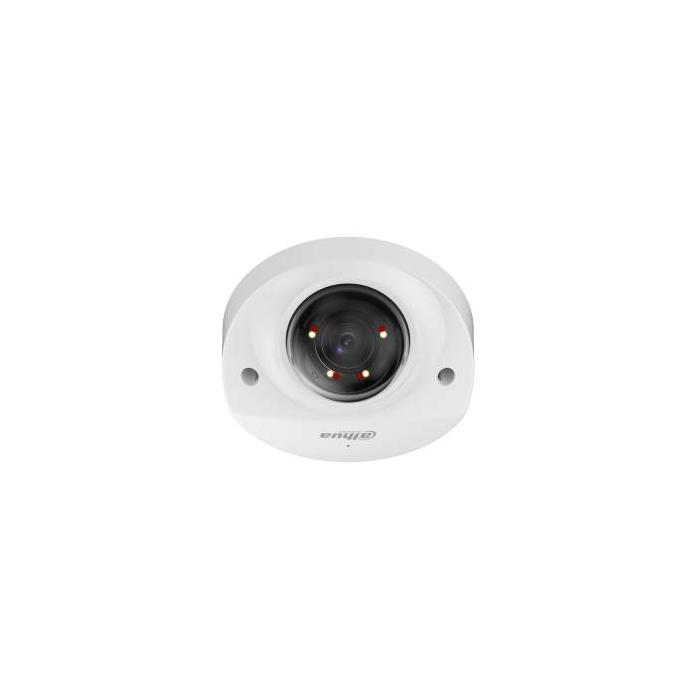

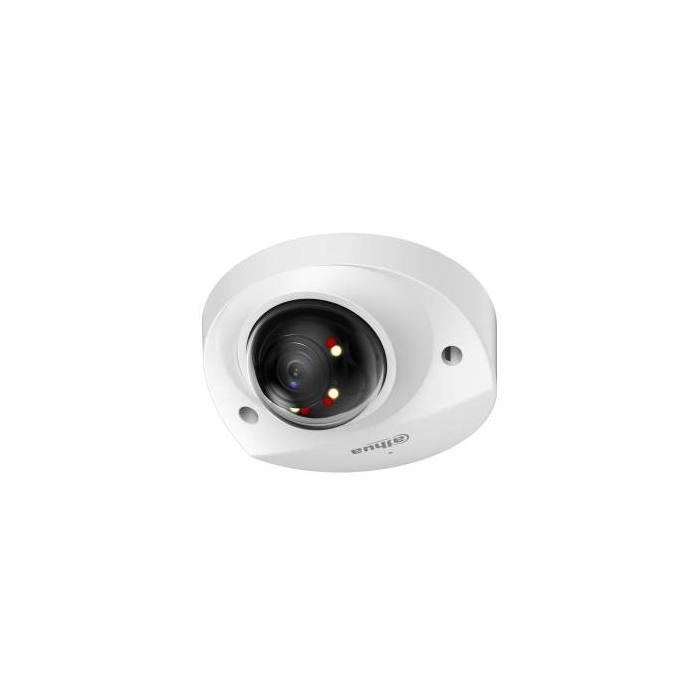

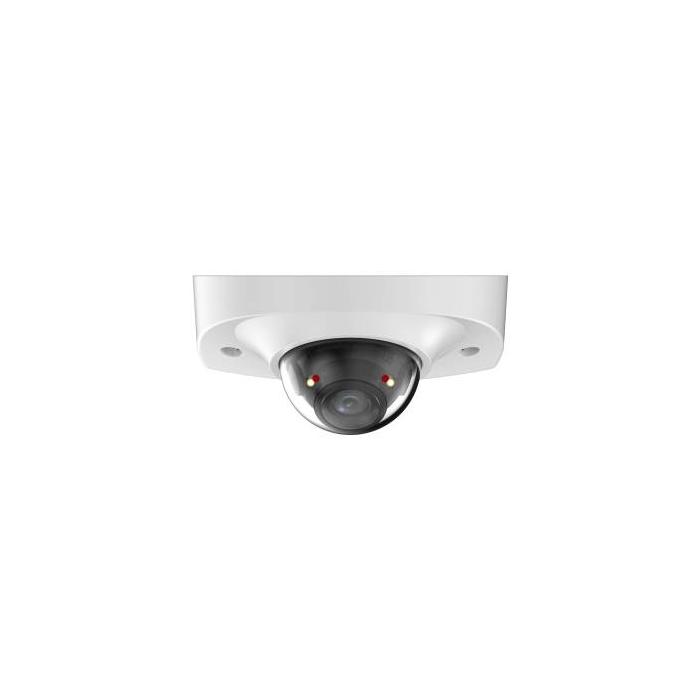

Dahua Technology WizSense IPC-HDBW2449F-AS-IL-0280B security camera Dome IP security camera Outdoor 2688 x 1520 pixels Ceiling/Wall/Pole
More info
Brand: DAHUA TECHNOLOGY
104,00 €Stock available: 0 units.
Unavailable
SKU:
117513
PRC:
603415
EAN:
6923172526922
PN:
IPC-HDBW2449F-AS-IL-0280B
Description
Outdoor IP security camera with 2688 x 1520 pixel recording, designed for monitoring roofs, walls and poles. The Dahua Technology WizSense adopts a dome form factor, with a white metal housing and a weight of 410 g that makes it easy to install at height. Its connectivity is wired and it offers a horizontal viewing angle of 101° and a diagonal of 120°, with a tilt of 0 to 80° and 360° rotation to aim the lens wherever needed. It incorporates integrated light and an infrared cut filter, so it maintains surveillance even when night falls. The shutter speed of 1/3 to 1/100000 makes it possible to capture both static scenes and fast movements clearly. It features wide dynamic range to balance shaded areas and brightly lit areas, as well as an input and output alarm to integrate it into a warning system.
Specifications
Performance
- Type: IP security camera
- Placement supported: Outdoor
- Connectivity technology: Wired
- Wide Dynamic Range (WDR): Yes
- Infrared (IR) cut-off filter: Yes
- Alarm input/output: Yes
- Built-in light: Yes
Design
- Form factor: Dome
- Mounting type: Ceiling/Wall/Pole
- Product colour: White
- Housing material: Metal
- International Protection (IP) code: IP67
- IK code: IK10
Camera
- Minimum illumination: 0.0006 lx
- Angle of rotation: 360°
- Lens viewing angle, horizontal: 101°
- Lens viewing angle, vertical: 54°
- Lens viewing angle, diagonal: 120°
- Tilt angle range: 0 - 80°
- Pan range: -30 - 30°
- White balance: Auto, Manual, Natural, Outdoor, Regional custom, Street lamp
- Camera shutter speed: 1/3 – 1/100000
- Number of Privacy masking areas: 4
Image sensor
- Optical sensor size: 25.4 / 2.9 mm (1 / 2.9")
- Progressive scan: Yes
- Sensor type: CMOS
Lens system
- Number of lenses: 1
- Detect distance: 63.6 m
- Observe distance: 25.4 m
- Recognize distance: 12.7 m
- Fixed focus: Yes
- Identify distance: 6.4 m
- Fixed focal length: 2.8 mm
- Closest focusing distance: 1.7 m
Night vision
- Night vision: Yes
- Night vision distance: 30 m
- LED type: IR/White
- Number of illumination LEDs: 4
Video
- Maximum resolution: 2688 x 1520 pixels
- Total megapixels: 4 MP
- Video compression formats: H.264, H.264B, H.264H, H.265, M-JPEG
- Supported graphics resolutions: 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2560 x 1440
- Video streaming: Yes
- Noise reduction: Yes
- Noise reduction technology: 3D noise reduction
- Gain control type: Auto/Manual
- Flip & mirror: Yes
- Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
- Bit rate: H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps
- Back Light Compensation (BLC): Yes
- Highlight Compensation (HLC): Yes
- Region of Interest (ROI) encoding: Yes
Audio
- Audio input channels: 1.0 channels
- Audio output channels: 1.0 channels
- Signal-to-Noise Ratio (SNR): 56 dB
- Built-in microphone: Yes
- Voice codecs: G.711Mu, G.711a, G.726, PCM
Network
- Ethernet LAN: Yes
- Supported network protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
- Wi-Fi: No
- Bluetooth: No
- Number of users: 6 user(s)
Storage
- Built-in HDD: No
- Card reader integrated: Yes
- Compatible memory cards: MicroSD (TransFlash)
- Maximum memory card size: 256 GB
- ROM capacity: 128 MB
- RAM capacity: 128 MB
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
Security
- Alarm input channels: 1
- Alarm output channels: 1
- Video motion detection: Yes
- Active tampering alarm: Yes
- Privacy protection: Yes
- Intelligent Video Surveillance (IVS) system features: Human detection, Intrusion, Tripwire, Vehicle detection
Management features
- Web-based management: Yes
Power
- Power source type: DC, PoE
- Power consumption (typical): 2.3 W
- Power consumption (max): 8.5 W
- Power consumption (Power over Ethernet (PoE)): 3.8 W
- DC output voltage: 12
Operational conditions
- Operating temperature (T-T): -40 - 60 °C
- Storage temperature (T-T): -40 - 60 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
Weight & dimensions
- Height: 55 mm
- Diameter: 10.9 cm
- Weight: 410 g
Packaging data
- Package weight: 550 g
Packaging content
- Number of cameras: 1
