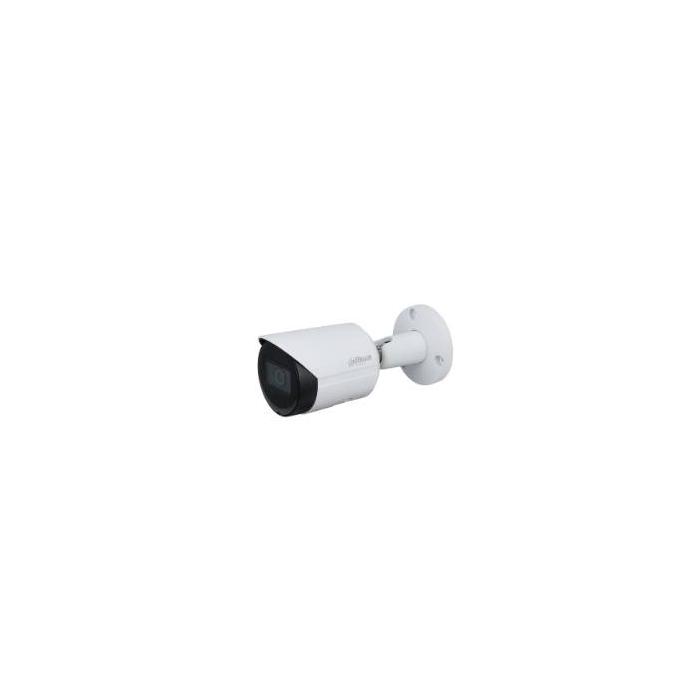

Dahua Technology Lite IPC-HFW2230SP-S-0280B-S2-QH3 security camera Bullet IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall
More info
Brand: DAHUA TECHNOLOGY
75,00 €Stock available: 0 units.
Unavailable
SKU:
122103
PRC:
398835
EAN:
6923172535320
PN:
ipc-hfw2230sp-s-0280b-s2-qh3
Description
Dahua Technology Lite IPC-HFW2230SP-S-0280B-S2-QH3, IP security camera, Indoor u0026 outdoor, Wired, CE-LVD: EN 62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part..., Ceiling/wall, White
Specifications
Performance
- Type: IP security camera
- Placement supported: Indoor & outdoor
- Connectivity technology: Wired
- Wide Dynamic Range (WDR): Yes
- Day/night mode: Yes
- Certification: CE-LVD: EN 62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B
Design
- Form factor: Bullet
- Mounting type: Ceiling/wall
- Product colour: White
- Housing material: Metal
- International Protection (IP) code: IP67
Camera
- Minimum illumination: 0.005 lx
- Angle of rotation: 360°
- Lens viewing angle, horizontal: 107°
- Lens viewing angle, vertical: 56°
- Lens viewing angle, diagonal: 127°
- Tilt angle range: 0 - 90°
- Pan range: 0 - 360°
- White balance: Auto, Manual, Natural, Outdoor, Street lamp
- Camera shutter speed: 1/3 -1/100000 s
- Adjustment shutter speed: Auto/Manual
Image sensor
- Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
- Progressive scan: Yes
- Sensor type: CMOS
- Number of effective pixels (H x V): 1920 x 1080 pixels
- Number of sensors: 1
Lens system
- Number of lenses: 1
- Detect distance: 43.9 m
- Observe distance: 17.5 m
- Recognize distance: 8.8 m
- Focal length range: 2.8 mm
- Identify distance: 4.4 m
- Closest focusing distance: 0.7 m
Night vision
- Night vision: Yes
- Night vision distance: 30 m
- LED type: IR
- Number of illumination LEDs: 1
Video
- Maximum resolution: 1920 x 1080 pixels
- Total megapixels: 2 MP
- Video formats supported: H.264+, H.265+
- Video compression formats: H.264, H.264B, H.265
- Supported graphics resolutions: 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
- Supported video modes: 720p, 1080p
- Frame rate: 30 fps
- Noise reduction: Yes
- Noise reduction technology: 3D noise reduction
- Gain control type: Auto/Manual
- Privacy masking: Yes
- Bit rate control: Constant Bit Rate (CBR), Variable Bit Rate (VBR)
- Bit rate: H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps
- Back Light Compensation (BLC): Yes
- Highlight Compensation (HLC): Yes
- Digital Wide Dynamic Range (DWDR): Yes
- Region of Interest (ROI) encoding: Yes
Audio
- Signal-to-Noise Ratio (SNR): 56 dB
Network
- Ethernet LAN: Yes
- Ethernet interface type: Fast Ethernet
- Supported network protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP;
- Number of users: 20 user(s)
- Quality of Service (QoS) support: Yes
Storage
- Card reader integrated: Yes
- Compatible memory cards: MicroSD (TransFlash)
- Maximum memory card size: 256 GB
- Internal memory: 128 MB
- ROM capacity: 128 MB
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
Security
- Video motion detection: Yes
- Intelligent Video Surveillance (IVS) system features: Intrusion, Tripwire
- Mirror: Yes
Management features
- Web browser: Yes
- Management software: Smart PSS, DSS, DMSS
Power
- Power source type: DC, PoE
- Power consumption (typical): 1.8 W
- Power consumption (Power over Ethernet (PoE)): 2.5 W
- DC output voltage: 12
Operational conditions
- Operating temperature (T-T): -40 - 60 °C
- Storage temperature (T-T): -40 - 60 °C
- Operating relative humidity (H-H): 0 - 95%
System requirements
- Mobile operating systems supported: Android, iOS
Weight & dimensions
- Width: 68.7 mm
- Depth: 166.2 mm
- Diameter: 7 cm
- Weight: 480 g
Packaging data
- Package weight: 570 g
Packaging content
- Number of cameras: 1
