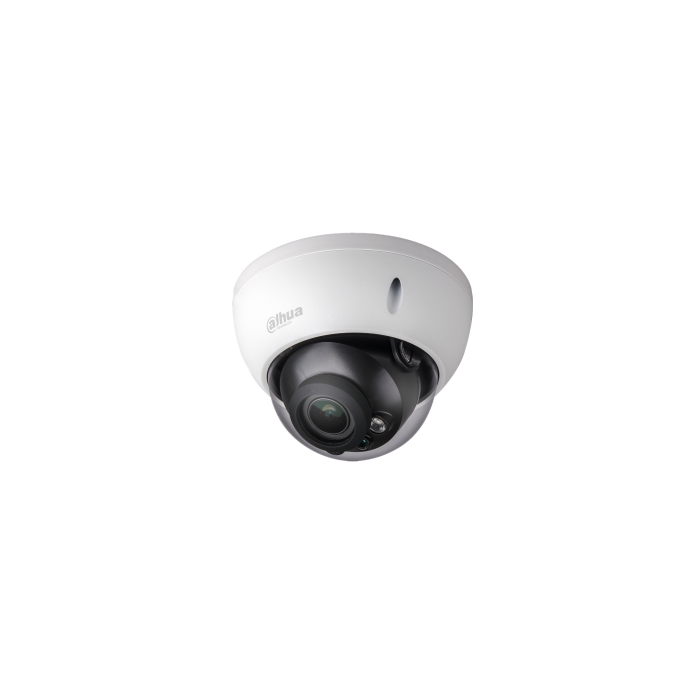

Name: Dahua Technology DH-IPC-HDBW5831RP-ZE-2712 Dome IP security camera Indoor & outdoor 3840 x 2160 pixels Ceiling
Brand: DAHUA TECHNOLOGY
Availability: OutOfStock

Dahua Technology DH-IPC-HDBW5831RP-ZE-2712 Dome IP security camera Indoor & outdoor 3840 x 2160 pixels Ceiling

Not avaliable

Dahua Technology DH-IPC-HDBW5831RP-ZE-2712 Dome IP security camera Indoor & outdoor 3840 x 2160 pixels Ceiling. More info

Amount

Brand: DAHUA TECHNOLOGY

SKU: 98268 PRC: 426307 EAN: 6939554936326 PN: 1.0.01.04.24228

Description

Specifications

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Luminous flux: 0.5 lm
Certification: CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B

Design

Form factor: Dome
Mounting type: Ceiling
Product colour: Black, White
Housing material: Metal
Protection features: Vandal proof
International Protection (IP) code: IP67
IK code: IK10

Camera

Camera pan control: Yes
Camera tilt control: Yes
Angle of rotation: 355°
Lens viewing angle, horizontal: 110°
Lens viewing angle, vertical: 58°
Tilt angle range: 0 - 75°
Pan range: 0 - 355°
White balance: Auto, Custom modes, Manual, Natural, Outdoor
Camera shutter type: Electronic
Camera shutter speed: 1/3 - 1/100000 s
Adjustment shutter speed: Auto/Manual

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.5 mm (1 / 2.5")
Progressive scan: Yes
Sensor type: CMOS

Lens system

Zoom capability: Yes
Optical zoom: 4x
Digital zoom: 16x
Number of lenses: 1
Focal length range: 2.7 - 12 mm
Maximum aperture number: 1.4
Detect distance (wide): 85 m
Detect distance (tele): 228 m
Observe distance (wide): 34 m
Observe distance (tele): 91 m
Recognize distance (wide): 17 m
Recognize distance (tele): 46 m
Identify distance (wide): 8.5 m
Identify distance (tele): 23 m
Closest focusing distance: 0.3 m

Night vision

Night vision: Yes
LED type: IR
Number of illumination LEDs: 2

Video

Maximum resolution: 3840 x 2160 pixels
Total megapixels: 8 MP
Video formats supported: H.264, H.264+, H.265, H.265+
Video compression formats: H.264, H.264+, H.265, H.265+
Supported graphics resolutions: 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536
Supported video modes: 240p, 480p, 576p, 720p, 960p, 1080p, 1520p, 1944p, 2160p
Frame rate: 30 fps
Video streaming: Yes
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Gain control type: Auto/Manual
Flip & mirror: Yes
Privacy masking: Yes
Bit rate control: Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Bit rate: H.264: 24K ~ 10240Kbps H.265: 14K ~ 9984Kbps
Back Light Compensation (BLC): Yes
Highlight Compensation (HLC): Yes
Smart IR: Yes

Audio

Signal-to-Noise Ratio (SNR): 50 dB

Network

Ethernet LAN: Yes
Supported network protocols: HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; IC
Number of users: 20 user(s)
Quality of Service (QoS) support: Yes
Streaming method: Multicast, Unicast
Web servers supported: IE, Chrome, Firefox, Safari

Storage

Built-in HDD: No
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 128 GB
Internal memory: 512 MB
ROM capacity: 32 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
DC-in jack: Yes

Security

Alarm input channels: 1
Alarm output channels: 1
Video motion detection: Yes
HTTPS encryption: Yes
Intelligent Video Surveillance (IVS) system features: Abandoned object, Intrusion, Missing object, Tripwire
Mirror: Yes

Management features

Web browser: Yes
Management software: Smart PSS, DSS, Easy4ip

Power

Power source type: DC, PoE
Power consumption (typical): 8.5 W
DC output voltage: 12

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

System requirements

Mobile operating systems supported: Android, iOS

Weight & dimensions

Height: 88.9 mm
Diameter: 12.2 cm
Weight: 500 g

Packaging data

Package weight: 580 g

Packaging content

Number of cameras: 1
